8 Schematics
Figure 8-1 and Figure 8-2 are schematic views of the TMUX-24PW-EVM that includes all the parts and connections.

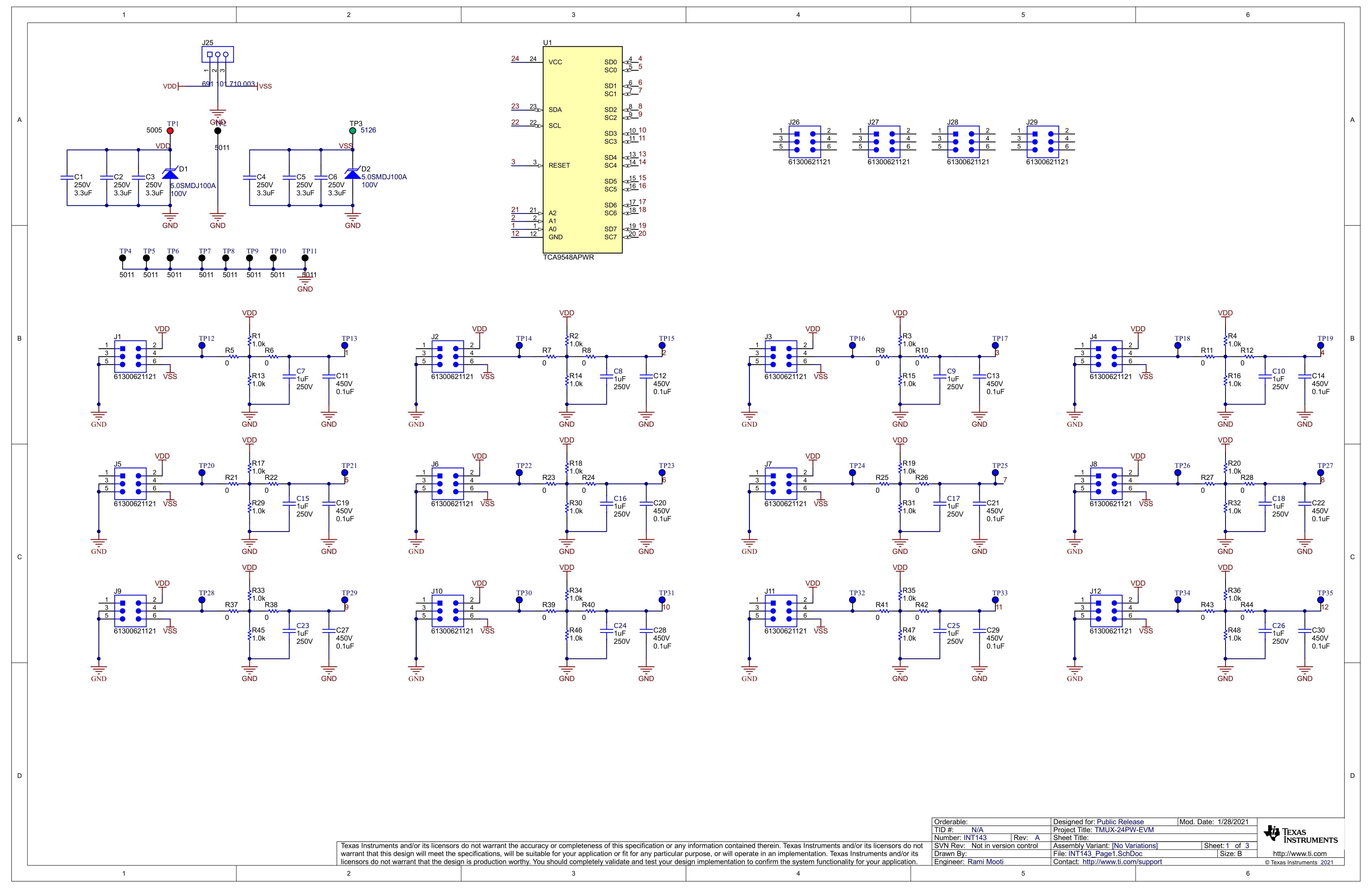

Figure 8-1 TMUX-24PW-EVM Schematic Page 1 (Editor View)

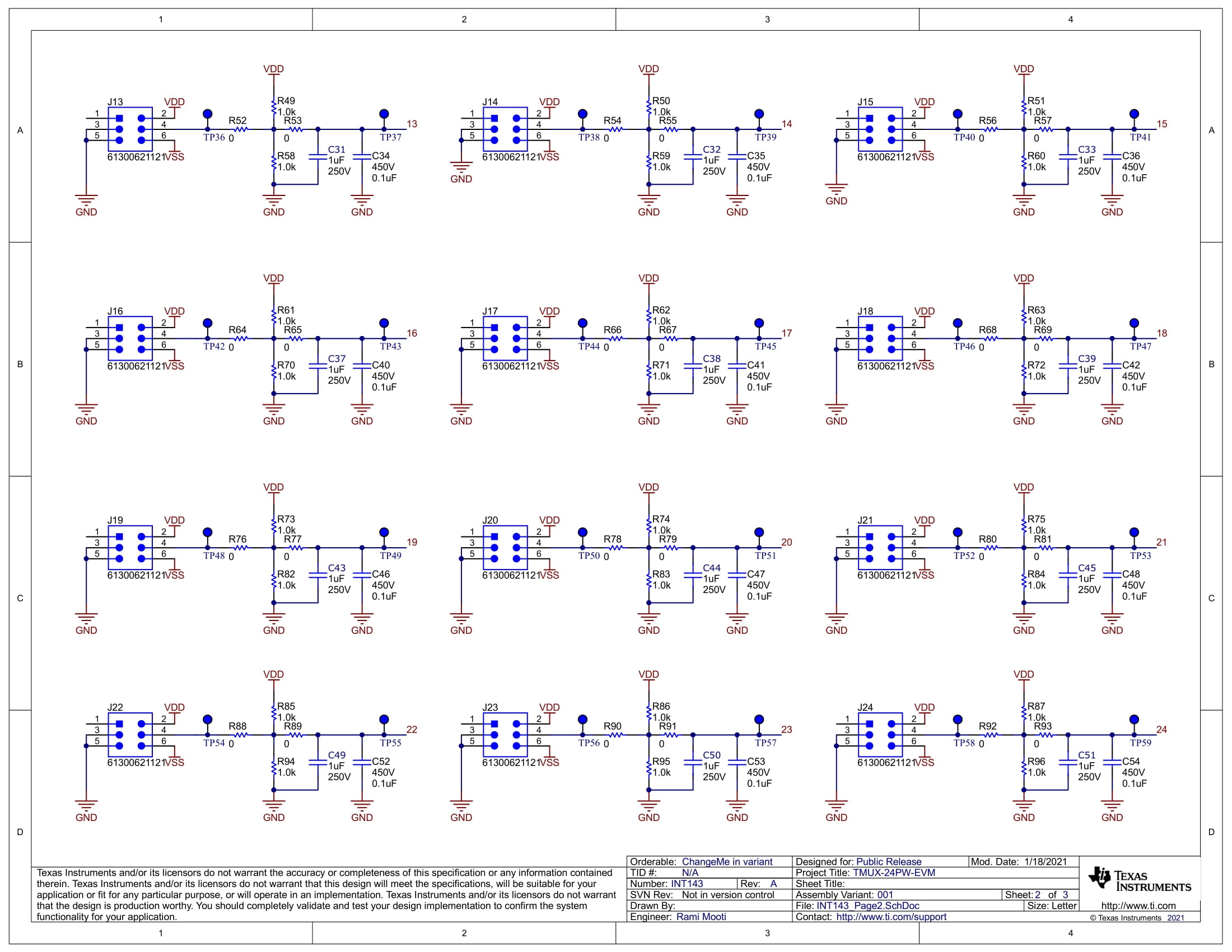

Figure 8-2 TMUX-24PW-EVM Schematic Page 2 (Editor View)Figure 8-3 and Figure 8-4 are schematic views of the TMUX-24PW-EVM that show only the parts that are included in the EVM and excludes the parts that are DNI.

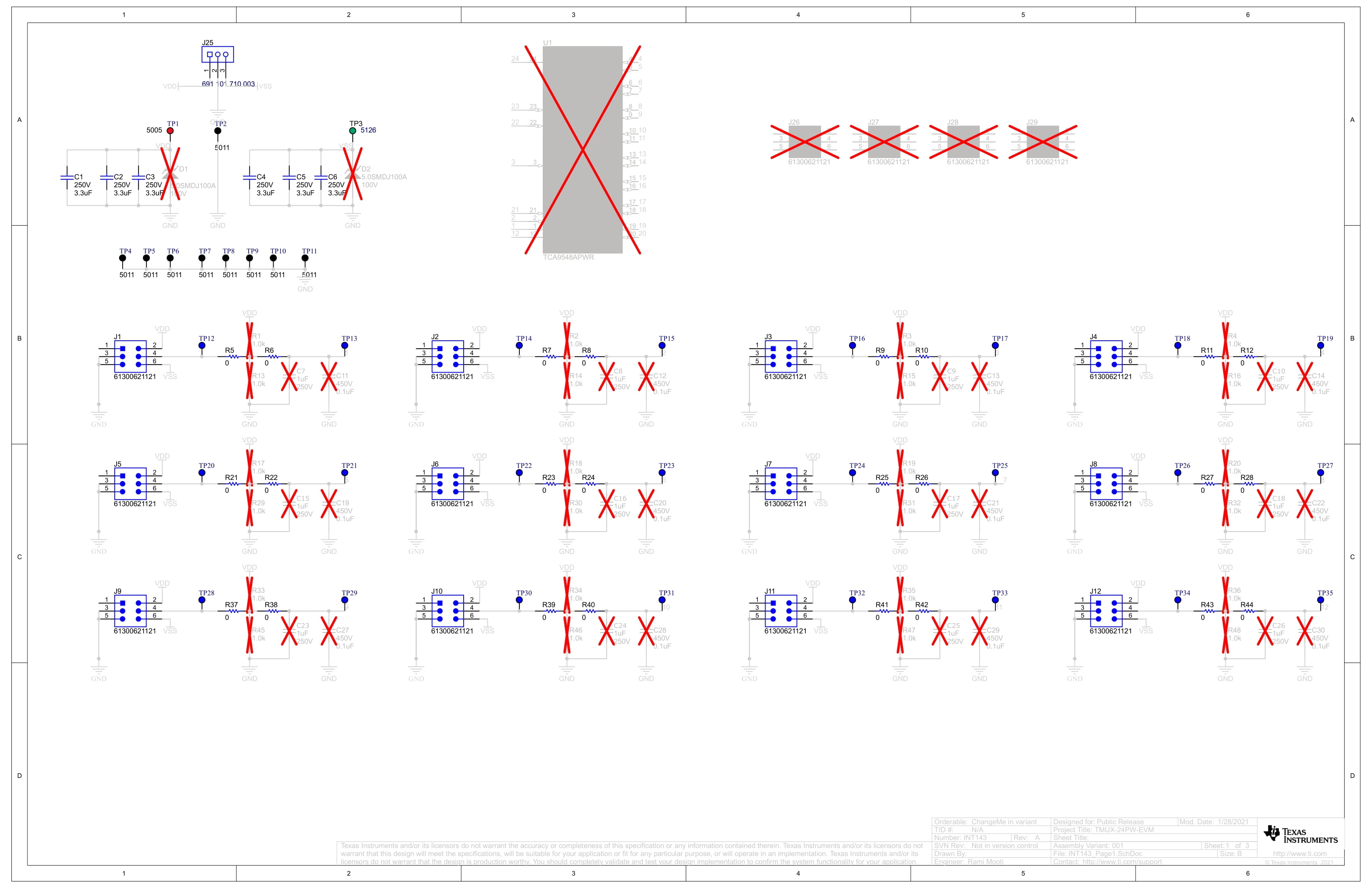

Figure 8-3 TMUX-24PW-EVM Schematic Page 1 (DNI)

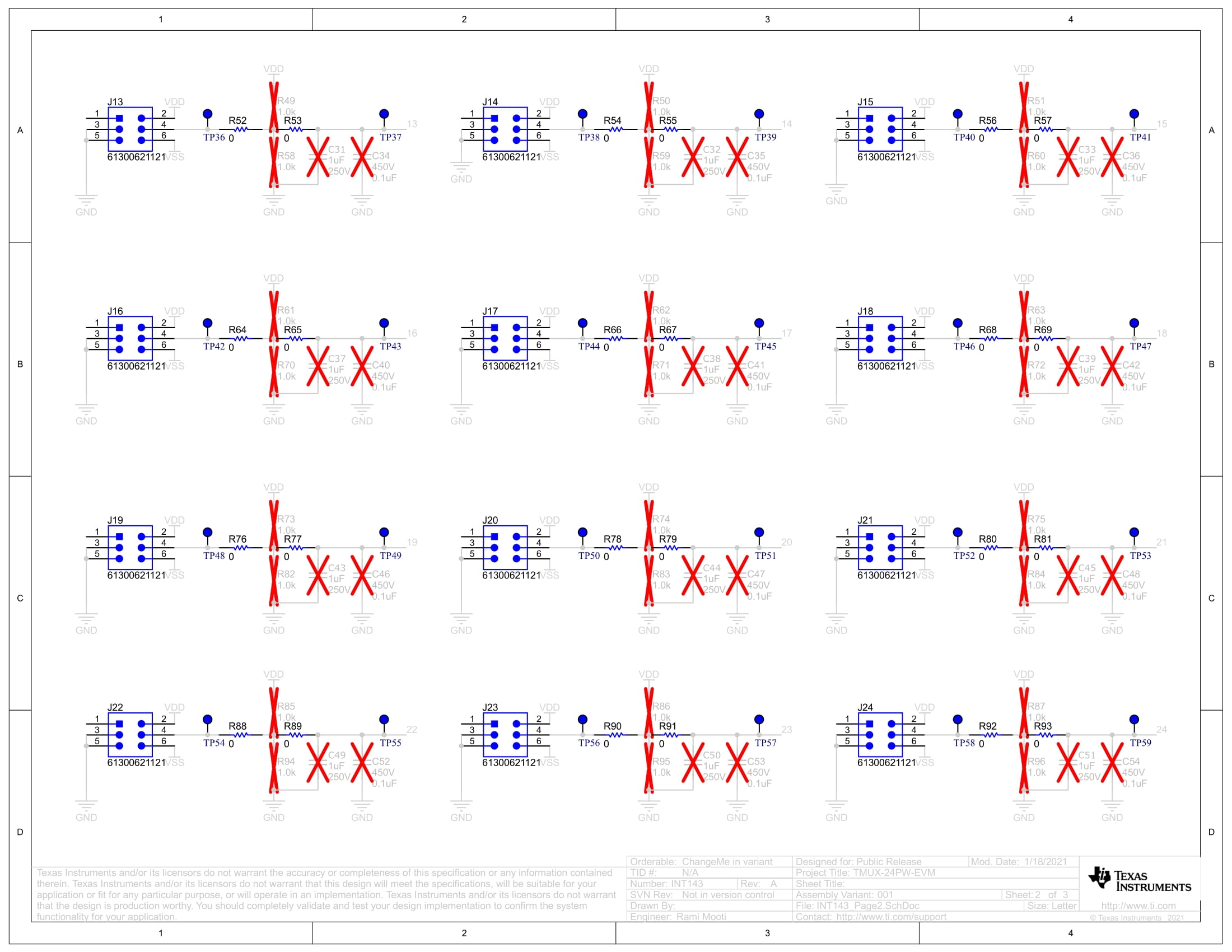

Figure 8-4 TMUX-24PW-EVM Schematic Page 2 (DNI)
