3 Test Device and Test Board Information
The SN54SC4T125-SEP is a packaged 14-pin, TSSOP plastic package shown in Figure 3-1 . Figure 3-2 shows the device with the package cap decapped to reveal the die for heavy ion testing. Figure 3-3 shows the evaluation board used for radiation testing. Figure 3-4 shows the bias diagram used for Single-Event Latch-up (SEL) testing.
Figure 3-1 SN54SC4T125-SEP Pinout
Diagram

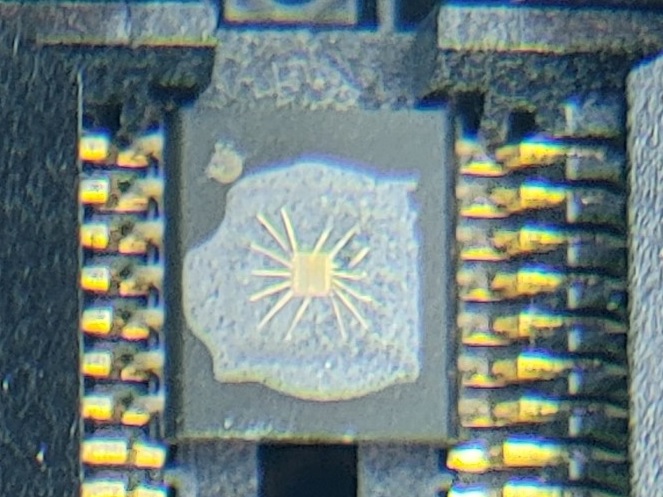

Figure 3-2 Photo of SN54SC4T125-SEP
Package Decapped

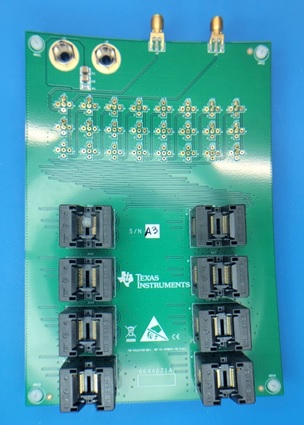

Figure 3-3 SN54SC4T125-SEP Evaluation
Board (Top View)

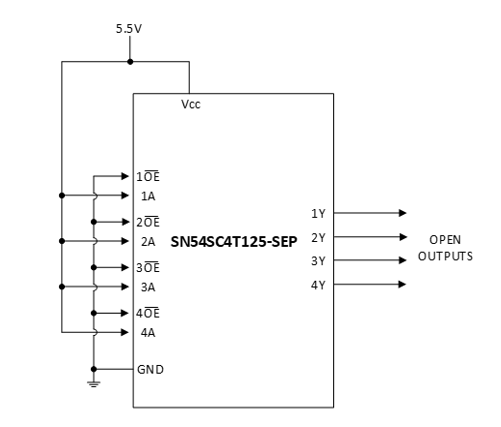

Figure 3-4 SN54SC4T125-SEP SEL Bias Diagram

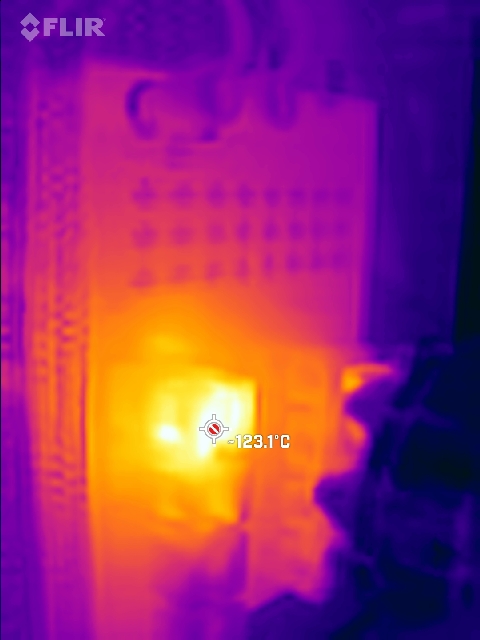

Figure 3-5 SN54SC4T125-SEP Thermal Image for SEL
