ZHCSAR7A February 2013 – September 2024 UCC27532
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Detailed Description
- 7 Application and Implementation
- 8 Layout
- 9 Device and Documentation Support
- 10Revision History
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- DBV|6
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
5.5 Typical Characteristics

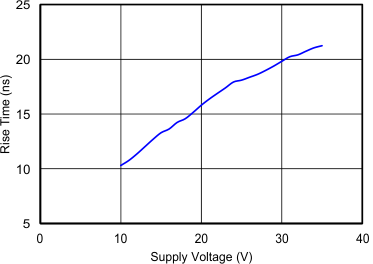

Figure 5-2 Rise Time vs Supply
Voltage

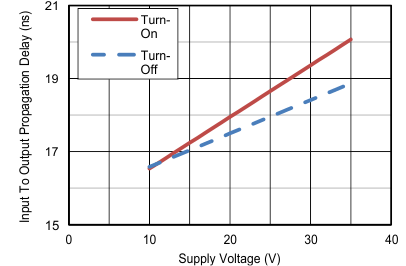

Figure 5-4 Propagation Delay vs
Supply Voltage

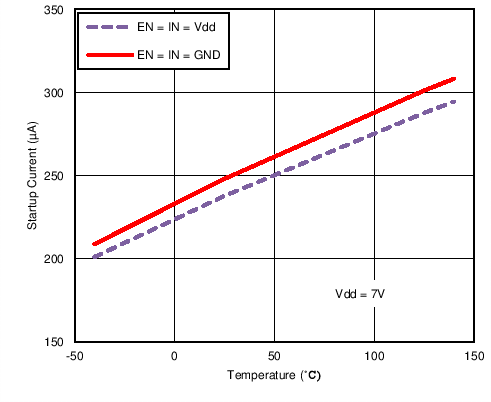

Figure 5-6 Start-Up Current vs
Temperature

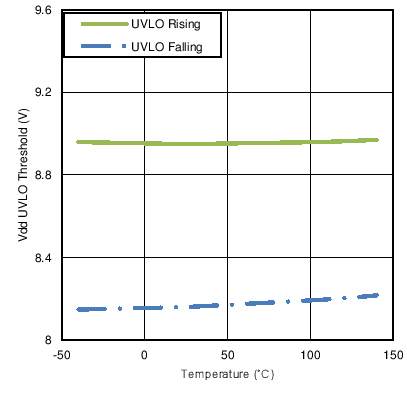

Figure 5-8 UVLO Threshold Voltage vs
Temperature

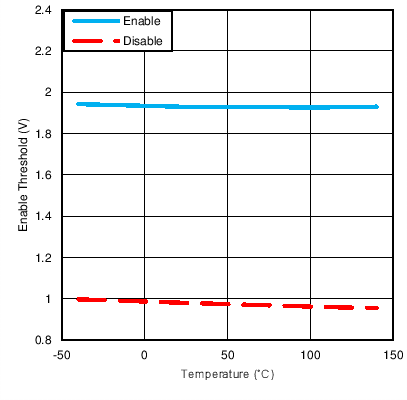

Figure 5-10 Enable Threshold vs
Temperature

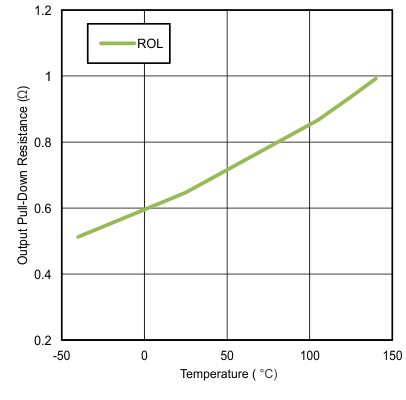

Figure 5-12 Output Pull-Down
Resistance vs Temperature

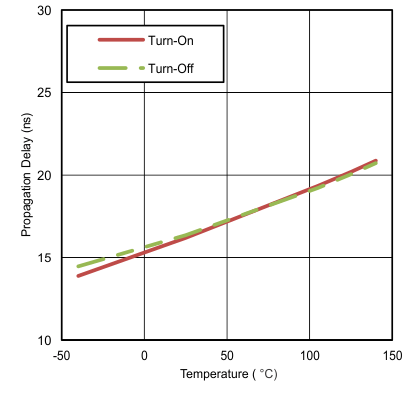

Figure 5-14 Input-to-Output
Propagation Delay vs Temperature

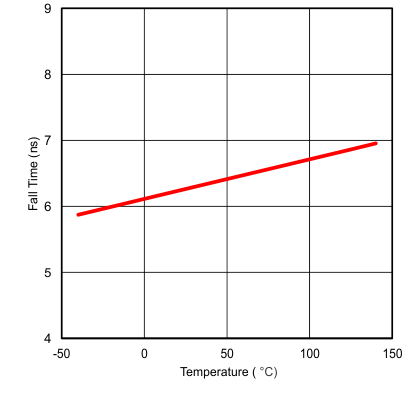

Figure 5-16 Fall Time vs
Temperature

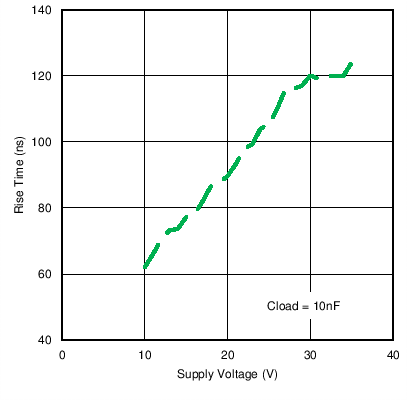

Figure 5-18 Rise Time vs Supply
Voltage

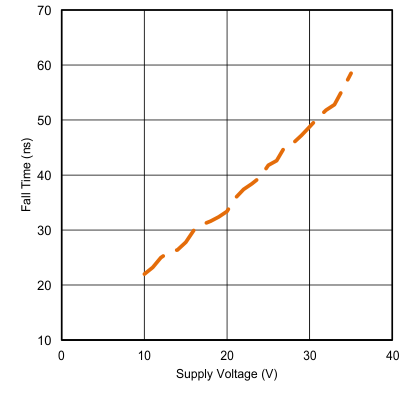

Figure 5-3 Fall Time vs Supply
Voltage

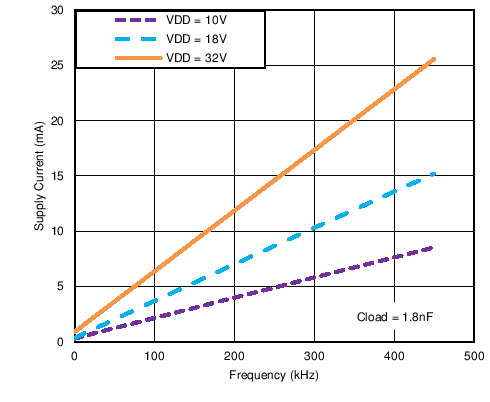

Figure 5-5 Operating Supply Current
vs Frequency

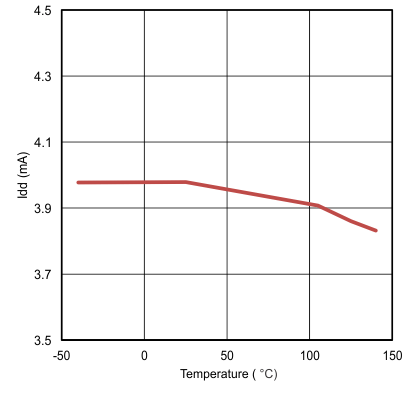

Figure 5-7 Operating Supply Current
vs Temperature (output switching)

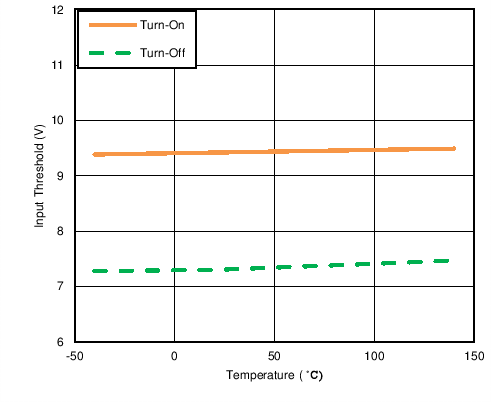

Figure 5-9 Input Threshold vs
Temperature

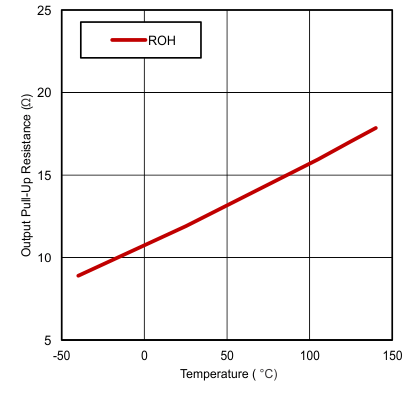

Figure 5-11 Output Pull-Up Resistance
vs Temperature

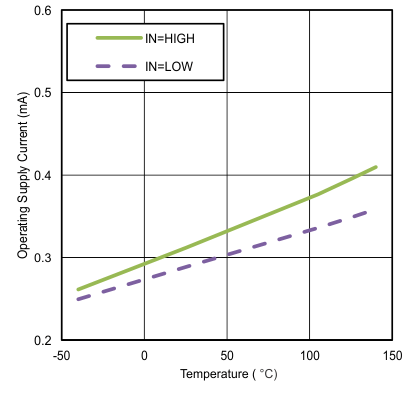

Figure 5-13 Operating Supply Current
vs Temperature (output in DC on/off condition)

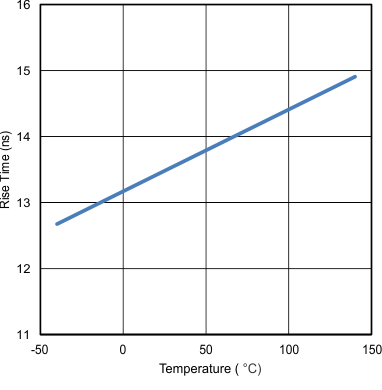

Figure 5-15 Rise Time vs
Temperature

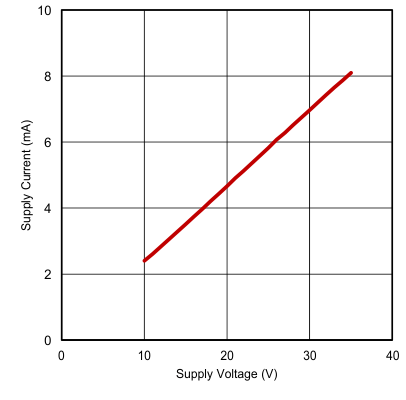

Figure 5-17 Operating Supply Current
vs Supply Voltage (output switching)

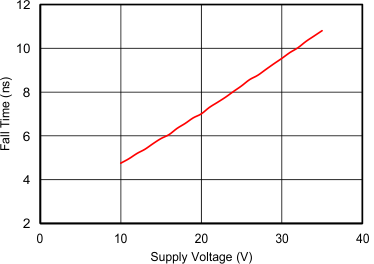

Figure 5-19 Fall Time vs Supply
Voltage
