6.8 Typical Characteristics
Unless otherwise specified VVDD=VHB = 12 V, VHS=VVSS = 0 V, No load on outputs
A.

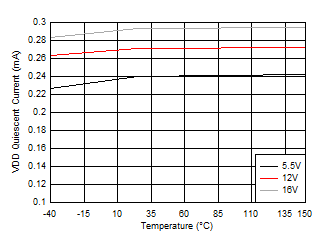

Figure 6-1 VDD Quiescent Current| VHI = VLI = 0 V |

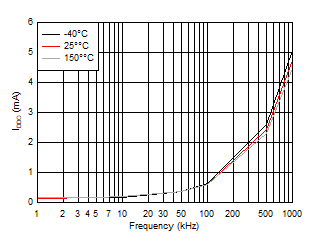

Figure 6-3 VDD Operating Current
A.

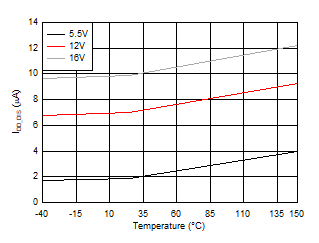

Figure 6-5 VDD Current When Disabled| VEN = 0 V | ||

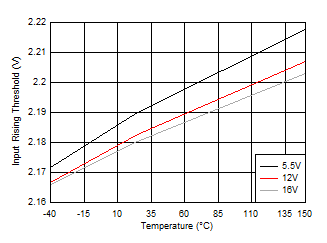

Figure 6-7 Input Rising Threshold

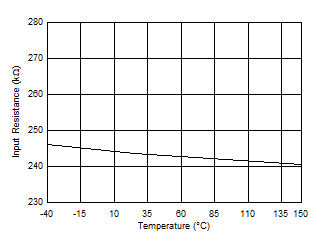

Figure 6-9 Input Pull-down Resistor
Figure 6-11 Disable Threshold
Figure 6-13 Disable Delay

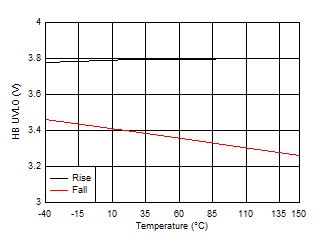

Figure 6-15 HB UVLO Threshold

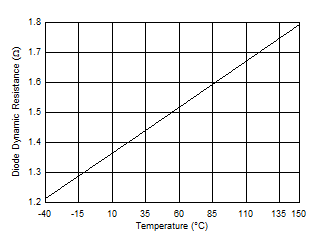

Figure 6-17 Boot Diode Dynamic Resistance
A.

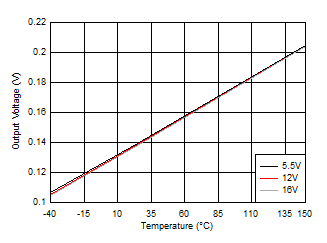

Figure 6-19 LO High Output Voltage (VLOH)| IO=-100mA |
A.
Figure 6-21 HO High Output Voltage (VHOH)| IO=-100mA |
A.

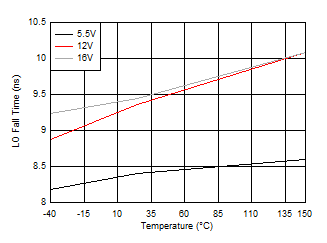

Figure 6-23 LO Fall Time| CL=1800pF |
A.
Figure 6-25 HO Fall Time| CL=1800pF |
A.

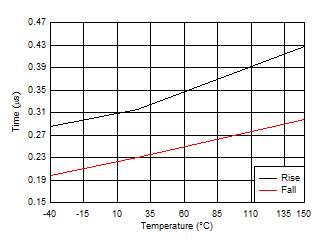

Figure 6-27 HO Rise & Fall Time| CL=100nF |
Figure 6-29 HO Falling Propagation Delay (TDHFF)Figure 6-31 LO Falling Propagation Delay (TDLFF)
A.

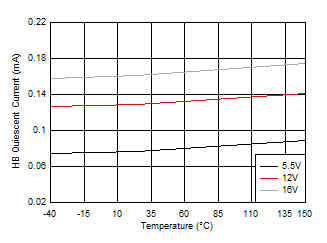

Figure 6-2 HB Quiescent Current| VHI = VLI = 0 V |

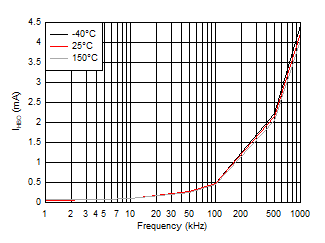

Figure 6-4 HB Operating Current
A.

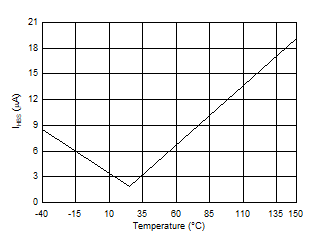

Figure 6-6 HB to VSS Quiescent Current| VHB=VHS=100V |
A.

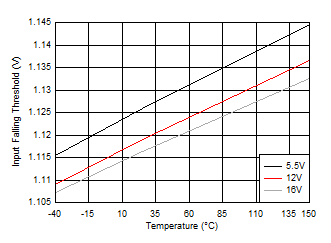

Figure 6-8 Input Falling Threshold

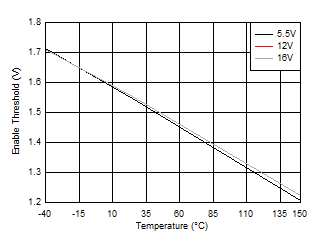

Figure 6-10 Enable Threshold
Figure 6-12 Enable Delay

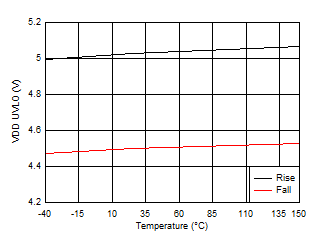

Figure 6-14 VDD UVLO Threshold

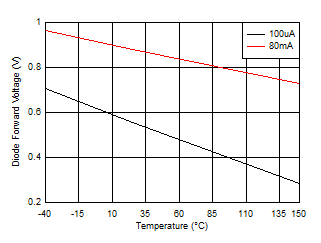

Figure 6-16 Boot Diode Forward Voltage Drop
A.

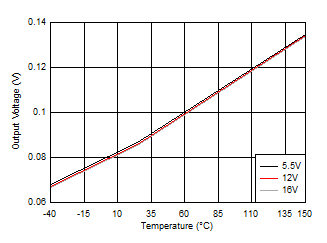

Figure 6-18 LO Low Output Voltage (VLOL)| IO=100mA |
A.

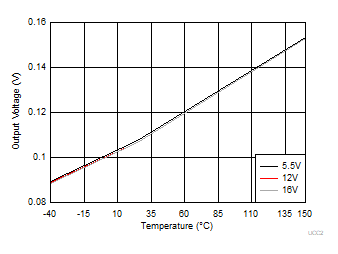

Figure 6-20 HO Low Output Voltage (VHOL)| IO=100mA |
A.

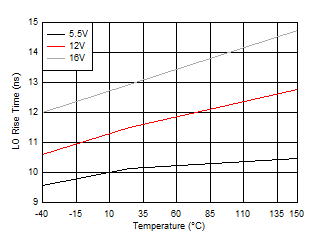

Figure 6-22 LO Rise Time| CL=1800pF |
A.

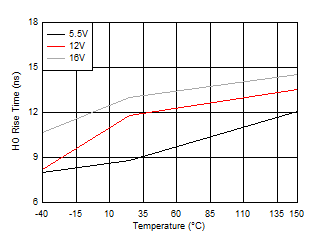

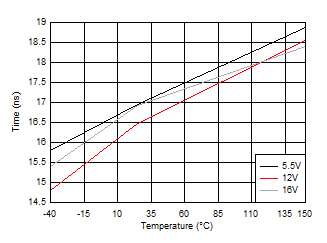

Figure 6-24 HO Rise Time| CL=1800pF |
A.

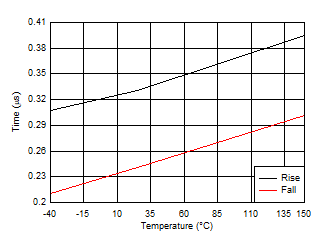

Figure 6-26 LO Rise & Fall Time| CL=100nF |

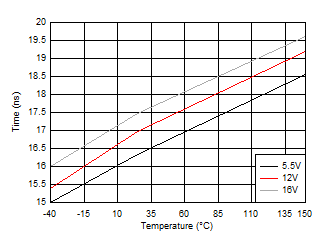

Figure 6-28 HO Rising Propagation Delay (TDHRR)
Figure 6-30 LO Rising Propagation Delay (TDLRR)
