ZHCSNL4A August 2020 – March 2021 UCC23511-Q1
PRODUCTION DATA

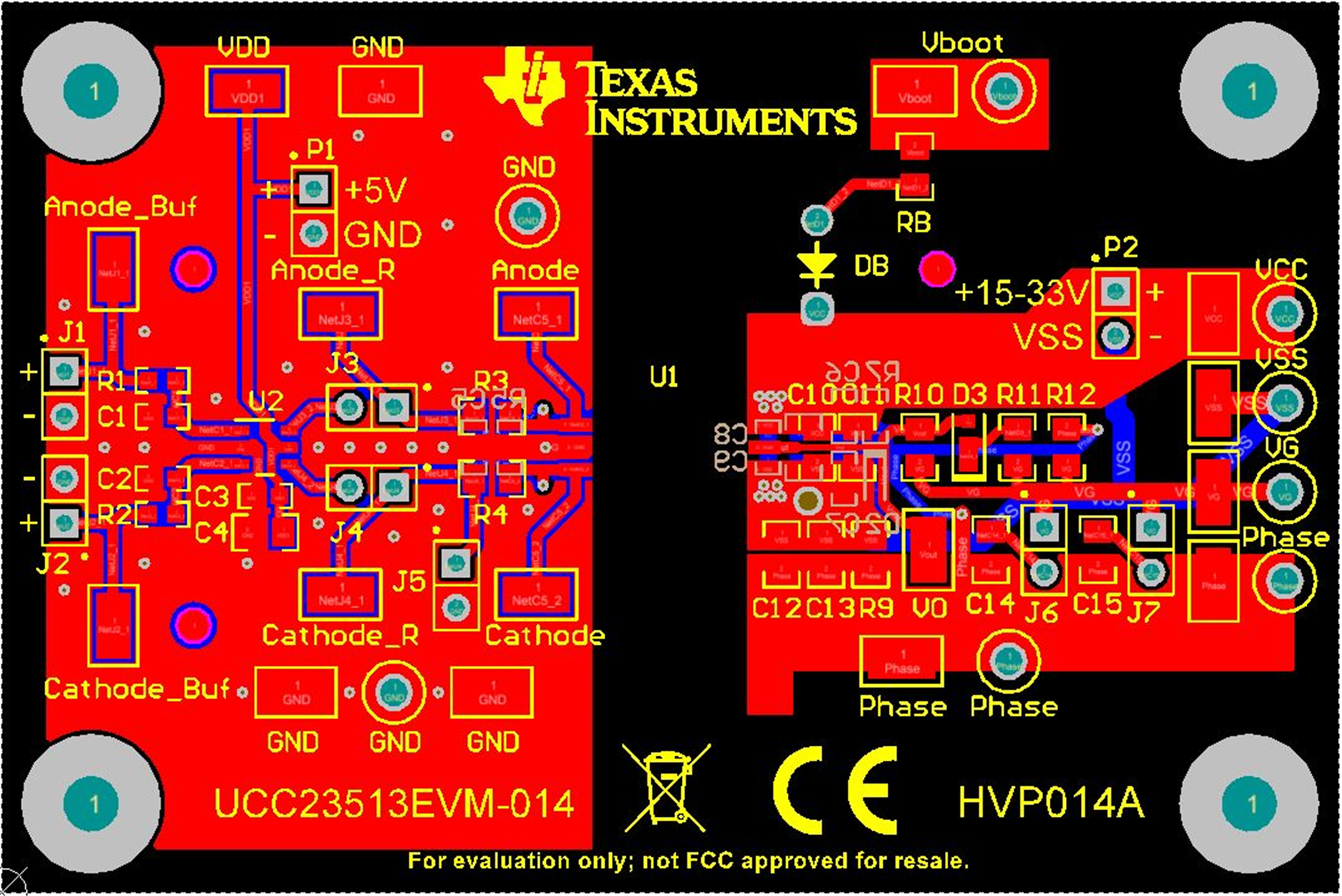

Figure 12-1 shows a PCB layout example with the signals and key components labeled.

Figure 12-2 and Figure 12-3 show the top and bottom layer traces and copper.

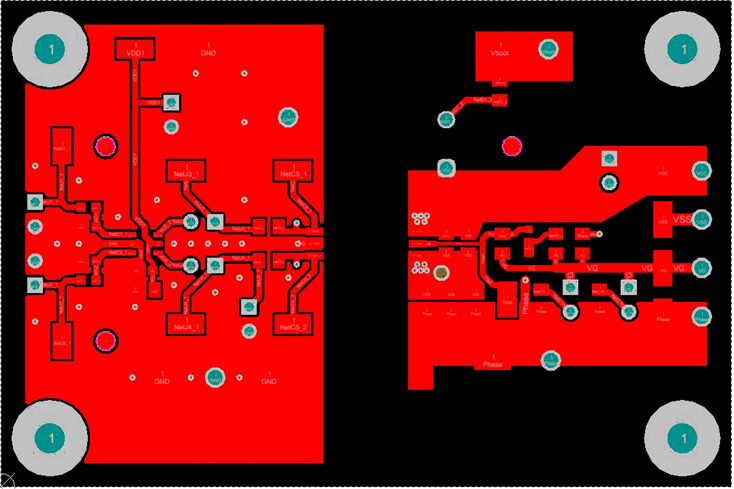

Figure 12-2 Top-Layer Traces and Copper

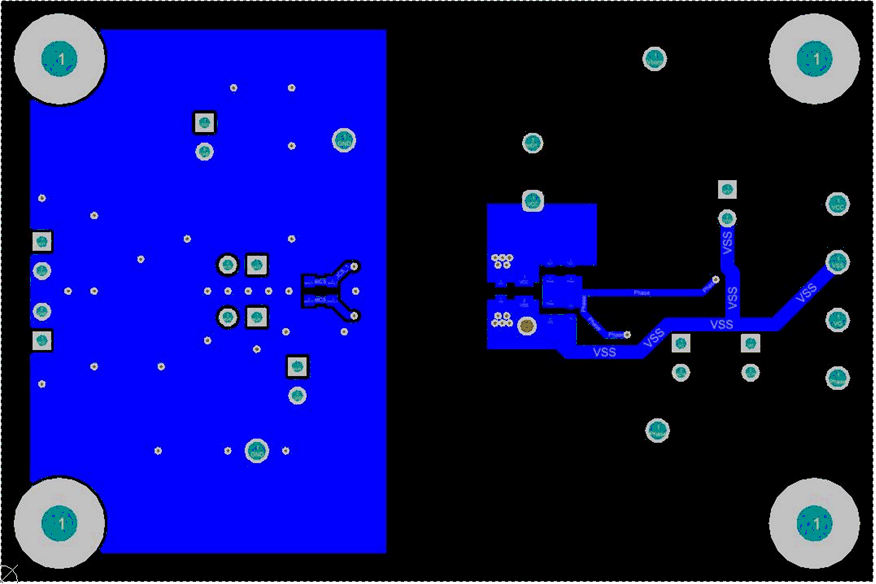

Figure 12-3 Bottom-Layer Traces and Copper (Flipped)Figure 12-4 shows the 3D layout of the top view of the PCB.
