6.11 Typical Characteristics

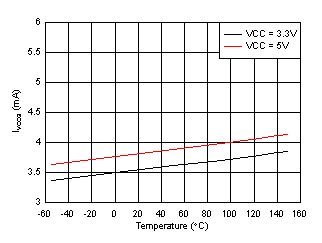

| VDD = 20 V, VEE = –5 V |
| VDD = 20 V, VEE = –5 V |
| IN+ = High | IN- = Low |
| IN+ = Low | IN- = Low |
Figure 6-8 IVCCQ Supply Current vs Input Frequency
| VDD = 20 V, VEE = –5 V | IN+ = High, IN- = Low |
| VDD = 20 V, VEE = –5 V | IN+ = Low, IN- = Low |
| VDD/VEE = 20 V/–5 V |

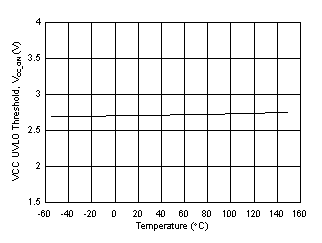

Figure 6-12 VCC UVLO vs
Temperature

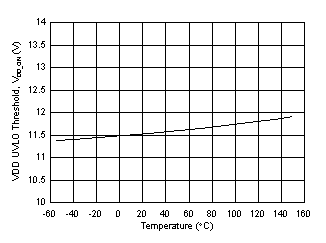

Figure 6-13 VDD UVLO vs
Temperature

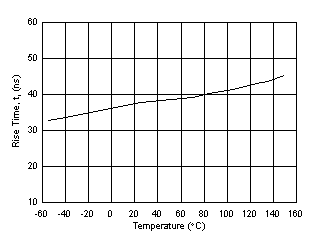

| VCC = 3.3 V | VDD = 18 V | CL = 100 pF |
| RON = 0 Ω | ROFF = 0 Ω |
| VCC = 3.3 V | VDD = 18 V | CL = 100 pF |
| RON = 0 Ω | ROFF = 0 Ω |
| VCC = 3.3 V | VDD = 18 V | CL = 10 nF |
| RON = 0 Ω | ROFF = 0 Ω |
| VCC = 3.3 V | VDD = 18 V | CL = 10 nF |
| RON = 0 Ω | ROFF = 0 Ω |
Figure 6-18 VOUTPD Output
Active Pulldown Voltage vs Temperature

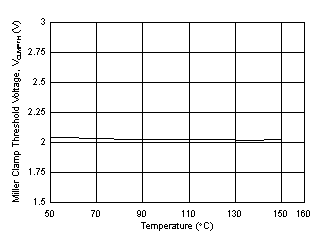

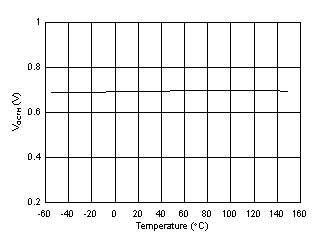

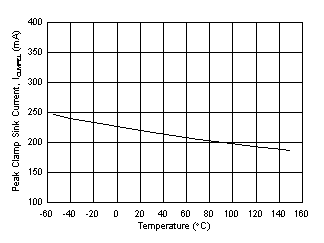

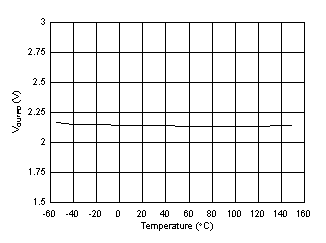

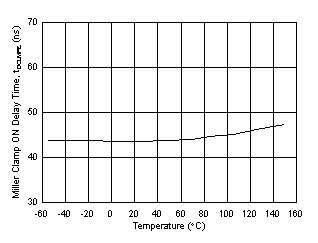

Figure 6-21 VCLMPTH Miller
Clamp Threshold Voltage vs Temperature
