6.12 Typical Characteristics
Figure 6-4 Output High Drive Current vs. Temperature

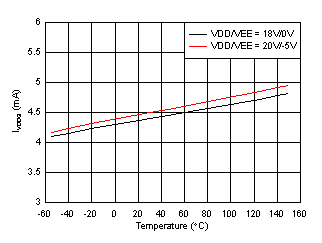

| IN+ = High | IN- = Low |

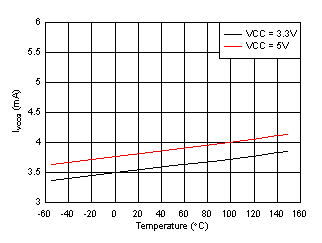

Figure 6-8 IVCCQ Supply Current vs. Input Frequency
| IN+ = Low | IN- = Low |
Figure 6-12 VCC
UVLO vs. Temperature

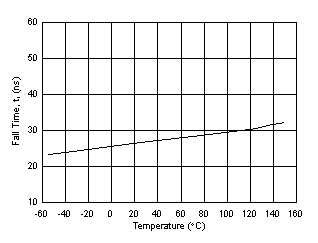

| VCC = 3.3V | VDD=18V | CL = 100pF |
| RON = 0Ω | ROFF = 0Ω |
| VCC = 3.3V | VDD=18V | CL = 10nF |
| RON = 0Ω | ROFF = 0Ω |
Figure 6-18 VOUTPD Output Active Pulldown Voltage vs.
Temperature
Figure 6-5 Output Low Driver Current vs. Temperature
| IN+ = Low | IN- = Low |
| IN+ = High | IN- = Low |
Figure 6-13 VDD
UVLO vs. Temperature

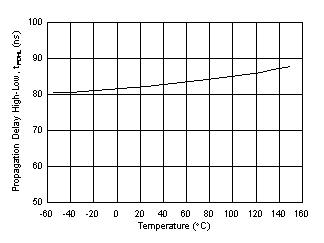

| VCC = 3.3V | VDD=18V | CL = 100pF |
| RON = 0Ω | ROFF = 0Ω |
| VCC = 3.3V | VDD=18V | CL = 10nF |
| RON = 0Ω | ROFF = 0Ω |
Figure 6-21 VCLMPTH Miller Clamp Threshold Voltage vs.
Temperature
