3 說明
UCC21521 是一款隔離式雙通道柵極驅動器，具有 4A 峰值拉電流和 6A 峰值灌電流。該器件設計用于驅動高達 5MHz 的功率 MOSFET、IGBT 和 SiC MOSFET，具有一流的傳播延遲和脈寬失真度。
輸入側通過一個 5.7kVRMS 增強型隔離層與兩個輸出驅動器隔離，共模瞬態抗擾度 (CMTI) 的最小值為 100V/ns。兩個二次側驅動器之間采用內部功能隔離，支持高達 1500 VDC 的工作電壓。
每個驅動器可配置為兩個低側驅動器、兩個高側驅動器或一個死區時間 (DT) 可編程的半橋驅動器。EN 引腳拉低時會同時關閉兩個輸出，懸空或拉高時可使器件恢復正常運行。作為一種失效防護機制，初級側邏輯故障會強制兩個輸出為低電平。
此器件接受高達 25V 的 VDD 電源電壓。3V 到 18V 的寬輸入電壓 VCCI 范圍使得該驅動器適用于連接數字和模擬控制器。所有電源電壓引腳都具有欠壓鎖定 (UVLO) 保護功能。
憑借所有這些高級特性，UCC21521 能夠滿足各類電源應用中對于高效率、高電源密度和穩健性的需求。
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| UCC21521ADW | DW SOIC (16) | 10.30mm x 7.50mm |
| UCC21521DW | DW SOIC (16) | 10.30mm x 7.50mm |
| UCC21521CDW | DW SOIC (16) | 10.30mm x 7.50mm |

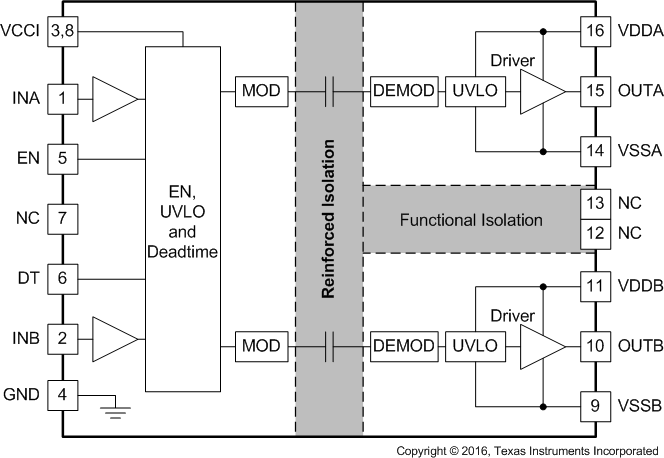

功能方框圖
