7.2 Rising and Falling Time

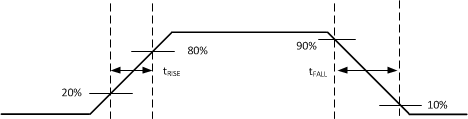

Figure 27shows the criteria for measuring rising (tRISE) and falling (tFALL) times. For more information on how short rising and falling times are achieved see Output Stage.
Figure 27. Rising and Falling Time Criteria
