6.8 Typical Characteristics
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.

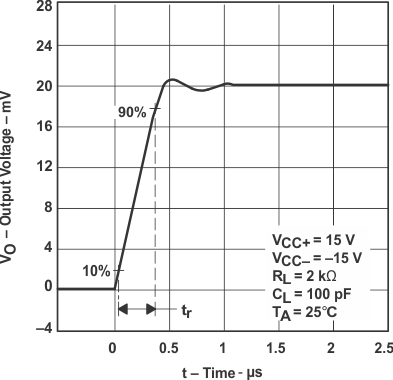

Figure 1. Rise Time, Overshoot, and Slew Rate

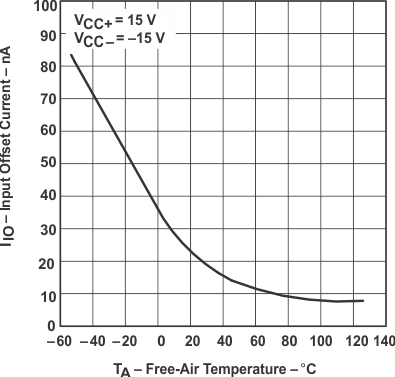

Figure 2. Input Offset Current vs Free-Air Temperature

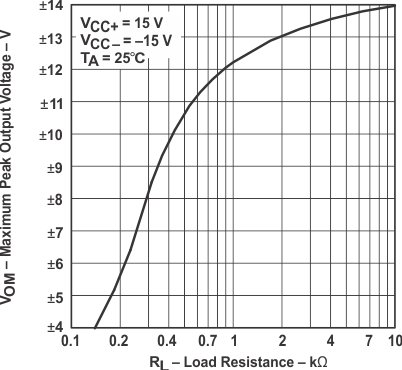

Figure 4. Maximum Output Voltage vs Load Resistance

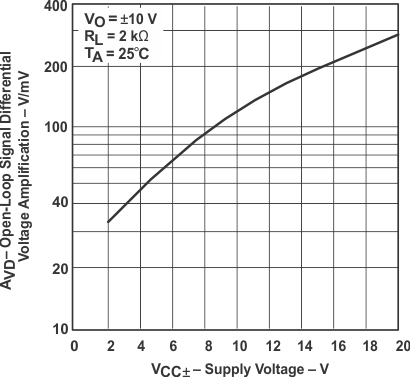

Figure 6. Open-Loop Signal Differential Voltage Amplification vs Supply Voltage

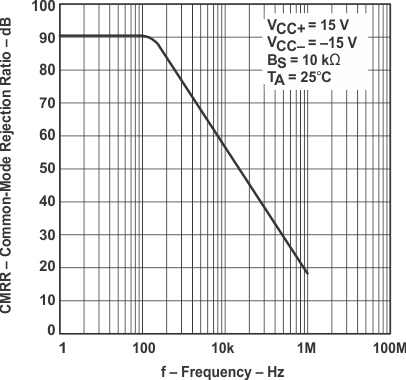

Figure 8. Common-Mode Rejection Ratio vs Frequency

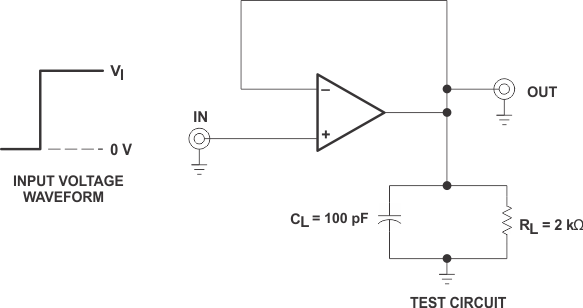

Figure 10. Voltage-Follower Large-Signal Pulse Response

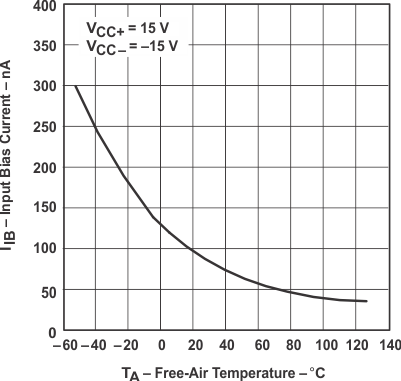

Figure 3. Input Bias Current vs Free-Air Temperature

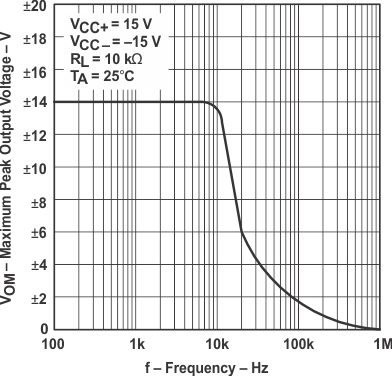

Figure 5. Maximum Peak Output Voltage vs Frequency
Figure 7. Open-Loop Large-Signal Differential Voltage Amplification vs Frequency
Figure 9. Output Voltage vs Elapsed Time
