6.8 Typical Characteristics
The typical characteristics shown in this section apply to near-end eye measurements taken at nominal conditions. The eyes are measured with various pre-channel cable lengths applied at the input or post-channel cable lengths applied at the output of the TUSB211A as indicated.

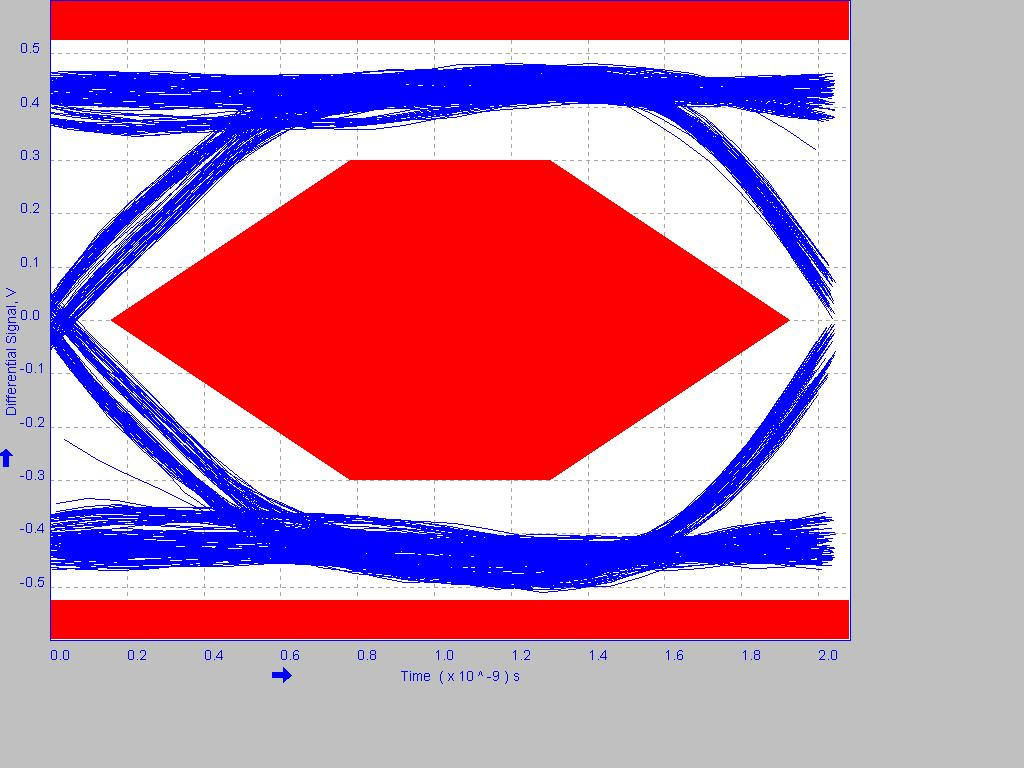

Figure 6-1 2
Meter Pre-Channel With TUSB211A EQ=1

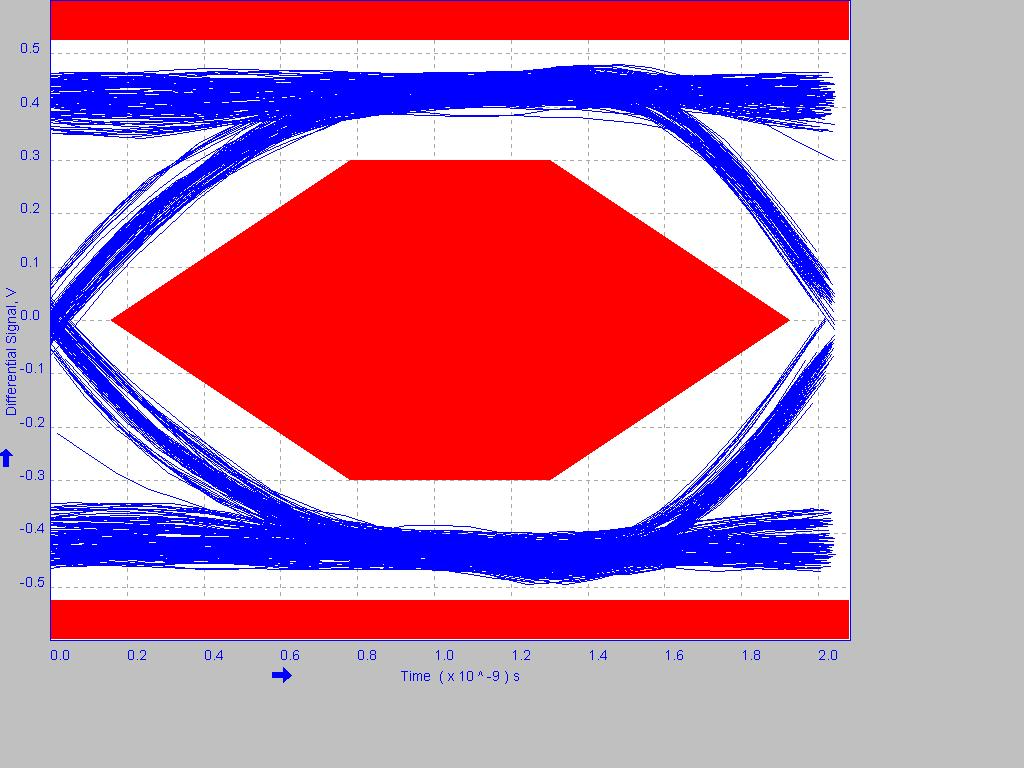

Figure 6-3 2
Meter Post-Channel With TUSB211A EQ=1

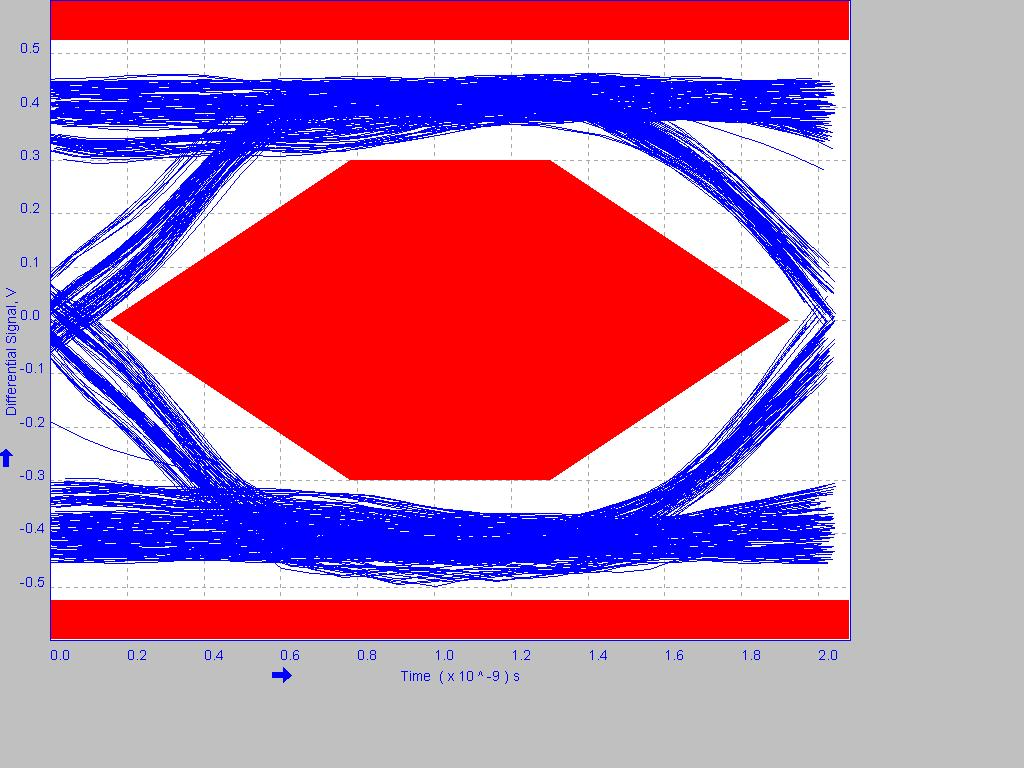

Figure 6-2 5
Meter Pre-Channel With TUSB211A EQ=2

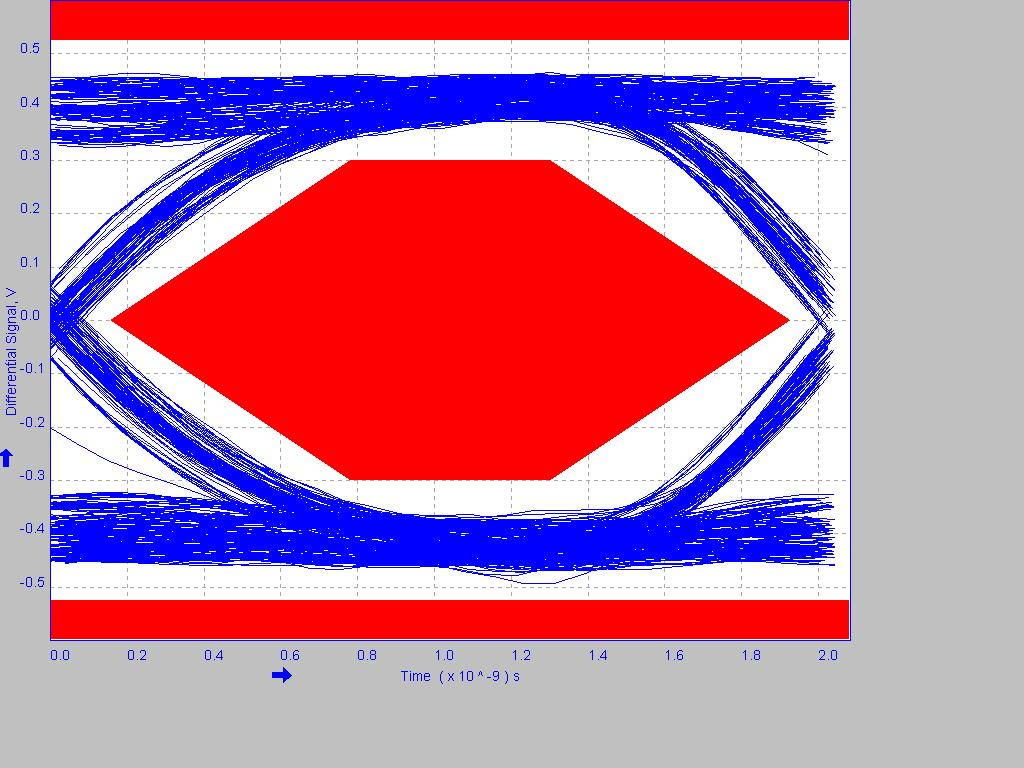

Figure 6-4 4
Meter Post-Channel With TUSB211A EQ=2
