8 Parameter Measurement Information

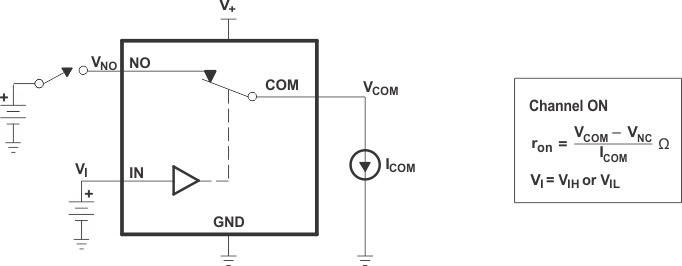

Figure 13. ON-State Resistance (ron)

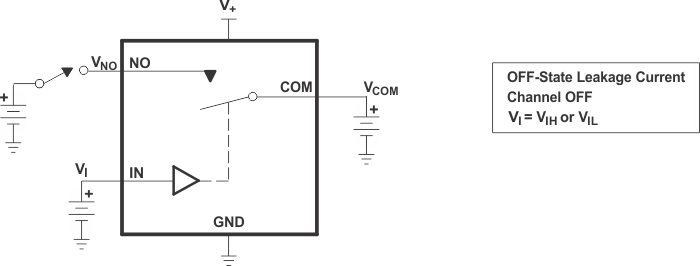

Figure 14. OFF-State Leakage Current (ICOM(OFF), INO(OFF), ICOM(PWROFF), INO(PWR(FF))

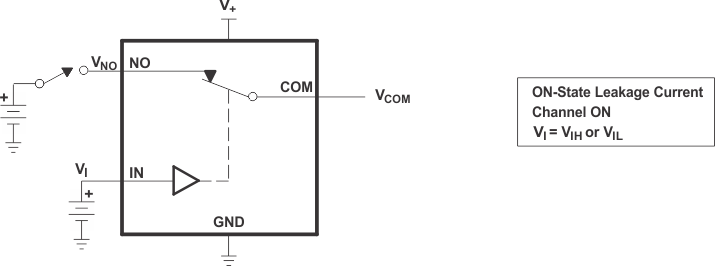

Figure 15. ON-State Leakage Current (ICOM(ON), INO(ON))

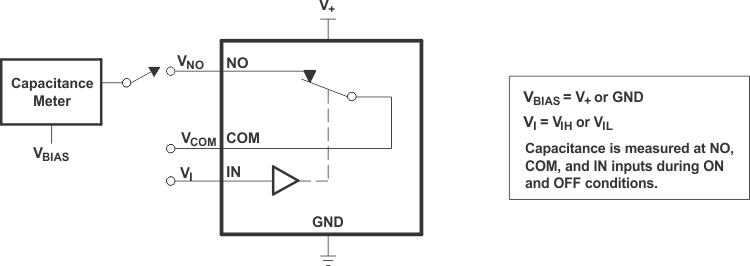

Figure 16. Capacitance (CI, CCOM(OFF), CCOM(ON), CNO(OFF), CNO(ON))
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns,
tf < 5 ns.
tf < 5 ns.
2. CL includes probe and jig capacitance.

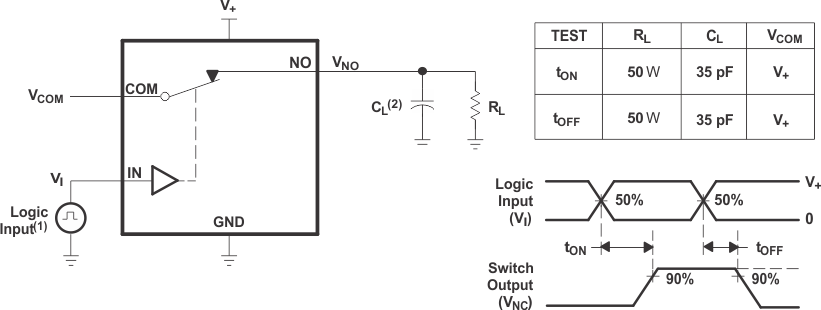

Figure 17. Turn-On (tON) and Turn-Off Time (tOFF)

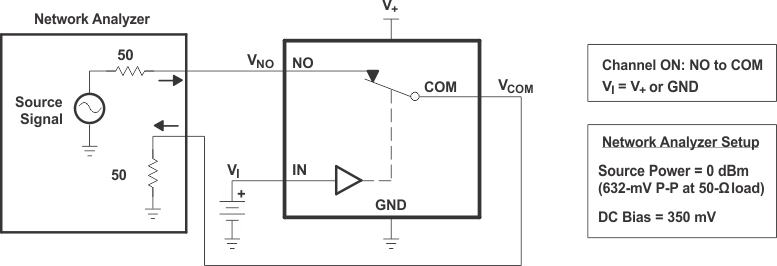

Figure 18. Bandwidth (BW)

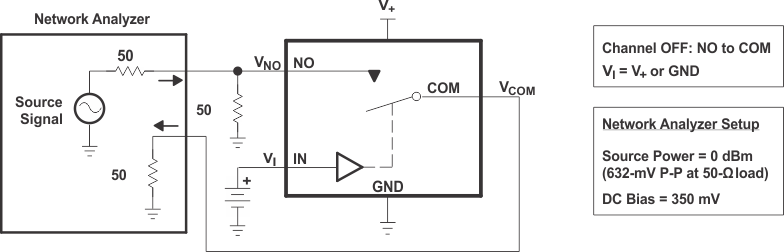

Figure 19. OFF Isolation (OISO)
1. CL includes probe and jig capacitance.
2. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns,
tf < 5 ns.

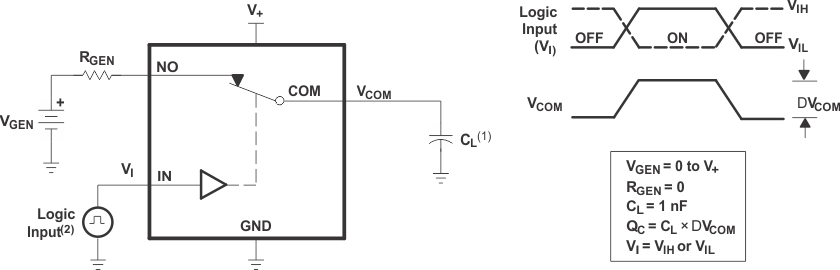

Figure 20. Charge Injection (QC)
tf < 5 ns.
1. CL includes probe and jig capacitance.

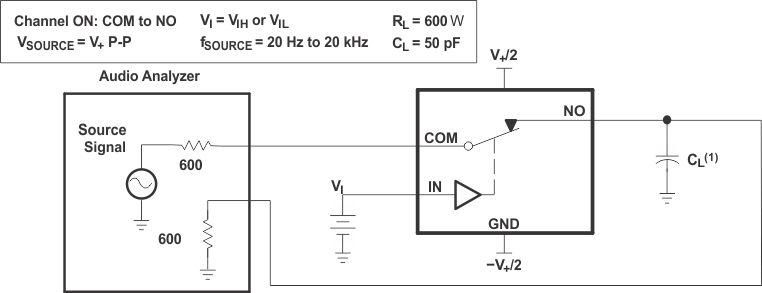

Figure 21. Total Harmonic Distortion (THD)
