7 Parameter Measurement Information

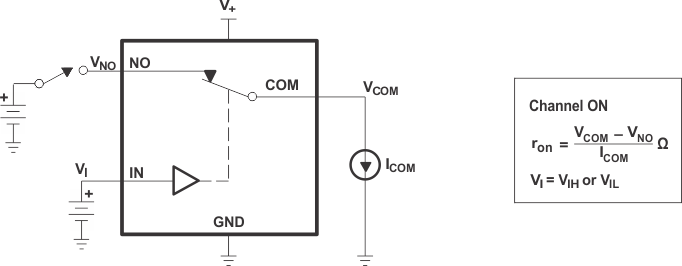

Figure 16. ON-State Resistance (ron)

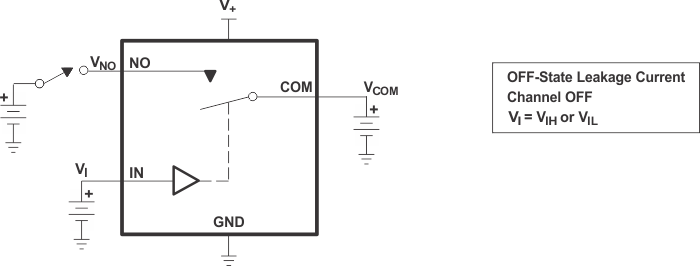

Figure 17. OFF-State Leakage Current (ICOM(OFF), INC(OFF), ICOM(PWROFF), INC(PWR(FF))

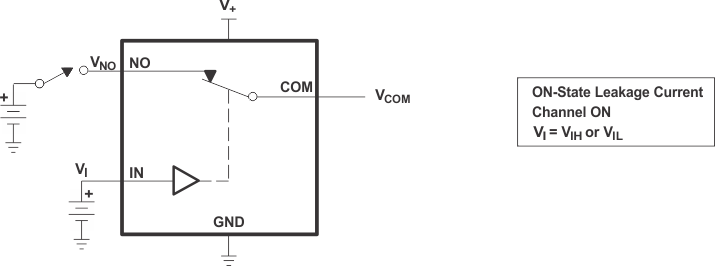

Figure 18. ON-State Leakage Current (ICOM(ON), INC(ON))

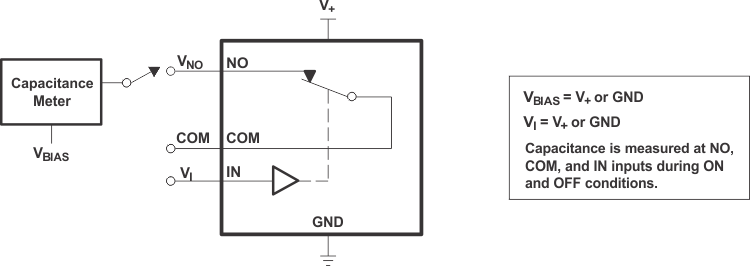

Figure 19. Capacitance (CI, CCOM(OFF), CCOM(ON), CNC(OFF), CNC(ON))
1. All input pulses are supplied by generators having the following characteristics:
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
2. CL includes probe and jig capacitance.

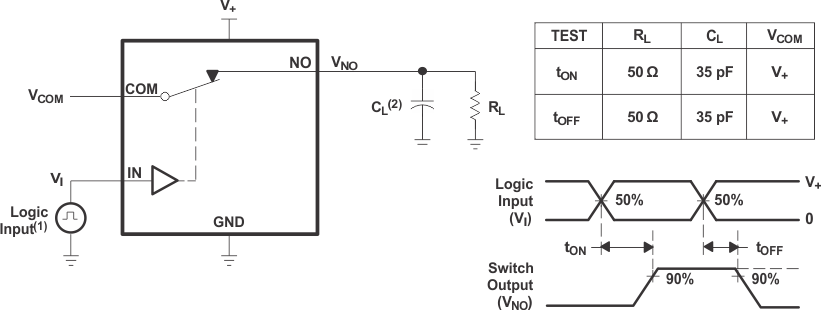

Figure 20. Turnon (tON) and Turnoff Time (tOFF)

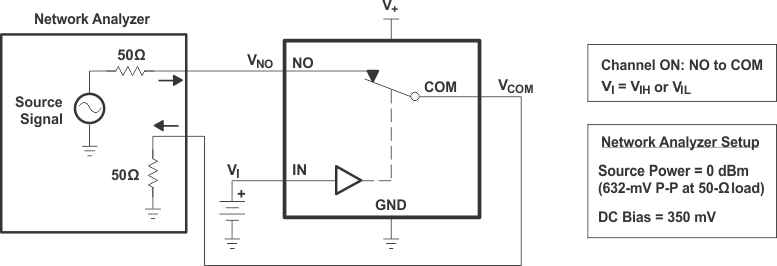

Figure 21. Bandwidth (BW)

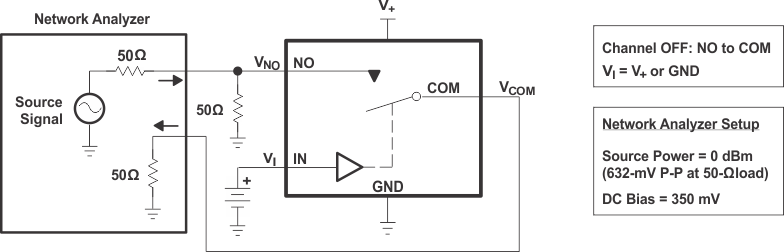

Figure 22. OFF Isolation (OISO)

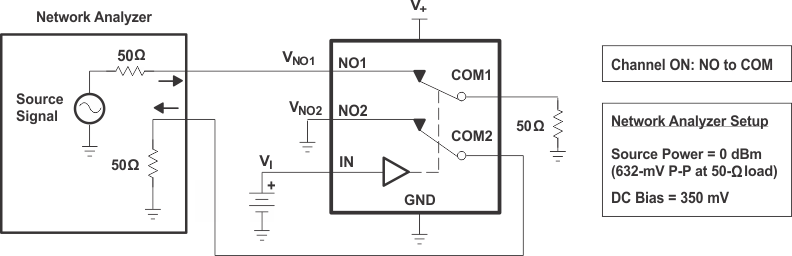

Figure 23. Crosstalk (XTALK)
1. CL includes probe and jig capacitance.
2. All input pulses are supplied by generators having the following characteristics:
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.

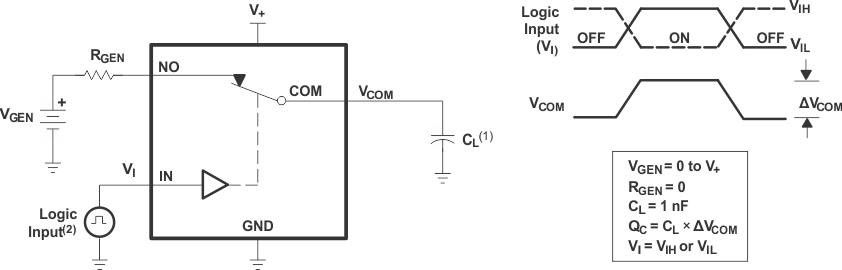

Figure 24. Charge Injection (QC) PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
1. CL includes probe and jig capacitance.

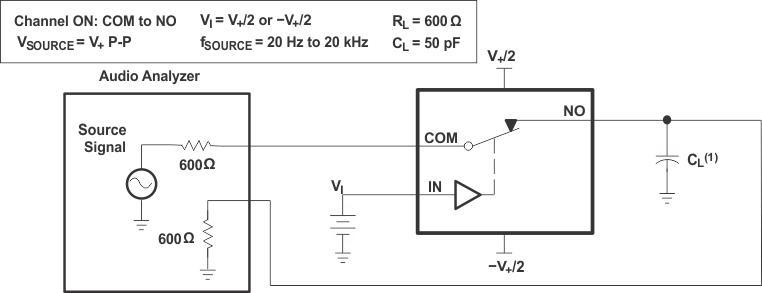

Figure 25. Total Harmonic Distortion (THD)
