8 Parameter Measurement Information
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
2. CL includes probe and jig capacitance.

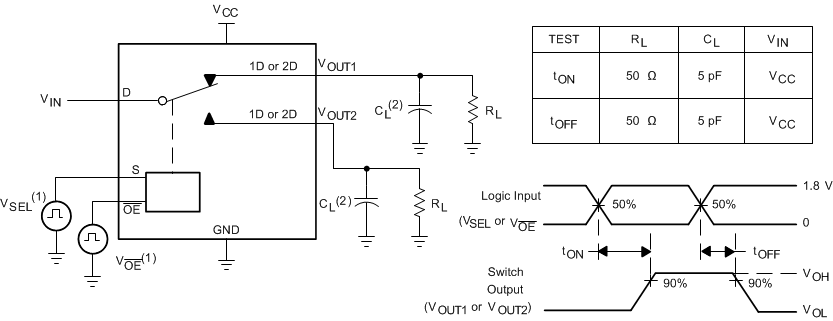

Figure 4. Turnon (tON) and Turnoff Time (tOFF)

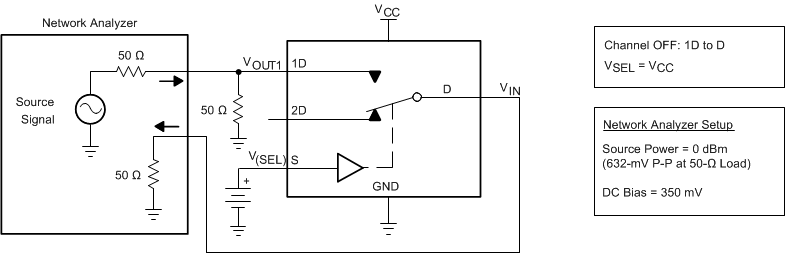

Figure 5. OFF Isolation (OIRR)

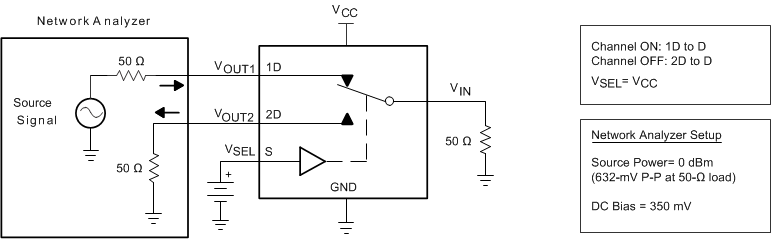

Figure 6. Crosstalk (XTALK)

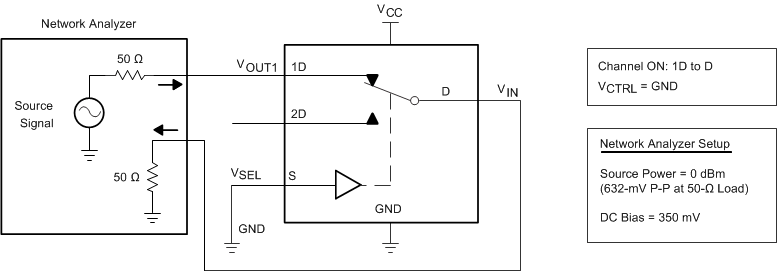

Figure 7. Bandwidth (BW)

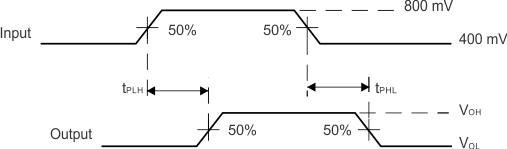

Figure 8. Propagation Delay

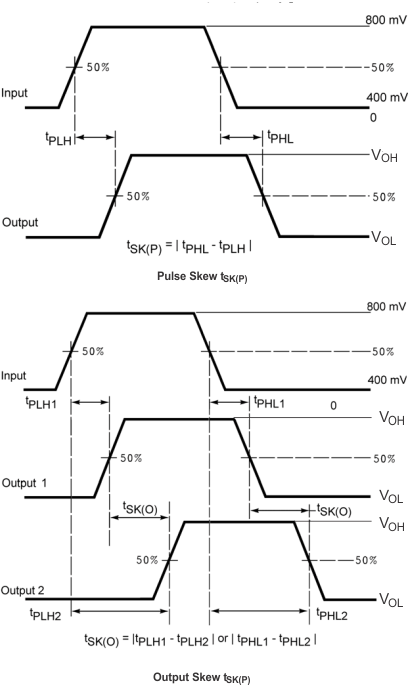

Figure 9. Skew Test

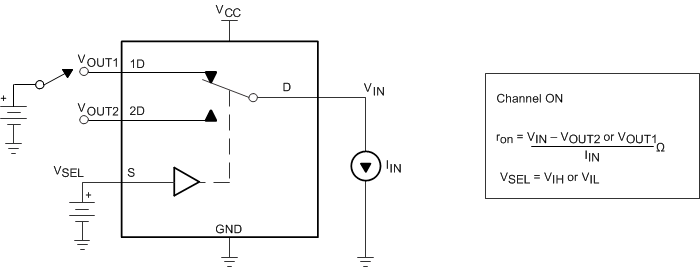

Figure 10. ON-State Resistance (ron)

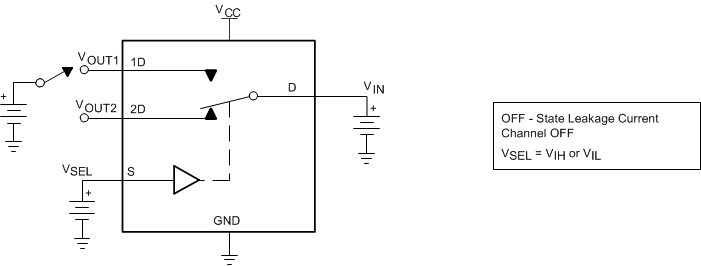

Figure 11. OFF-State Leakage Current

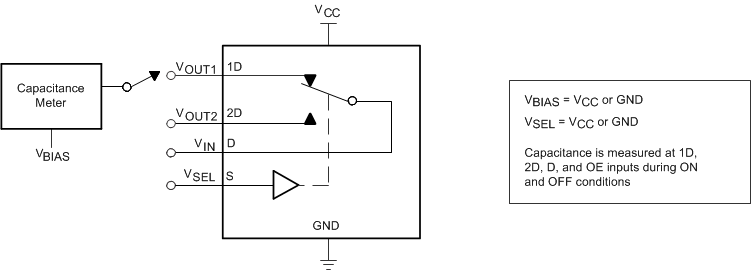

Figure 12. Capacitance
