SCDS228F AUGUST 2006 – December 2015 TS3A4741 , TS3A4742
UNLESS OTHERWISE NOTED, this document contains PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數(shù)據(jù) (封裝 | 引腳)
散熱焊盤機械數(shù)據(jù) (封裝 | 引腳)
- DCN|8
訂購信息

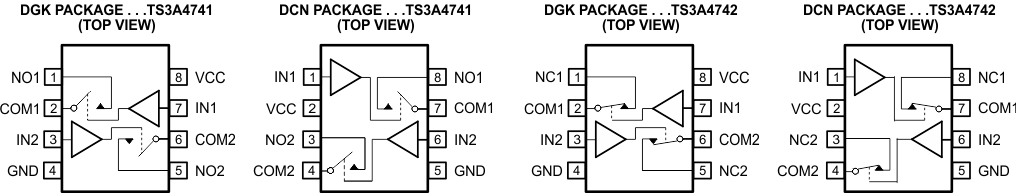

5 Pin Configuration and Functions
Pin Functions
| PIN | I/O | DESCRIPTION | ||||
|---|---|---|---|---|---|---|
| NAME | TS3A4741 | TS3A4742 | ||||
| MSOP | SOT | MSOP | SOT | |||
| COM1 | 2 | 7 | 2 | 7 | I/O | Common |
| COM2 | 6 | 4 | 6 | 4 | I/O | Common |
| GND | 4 | 5 | 4 | 5 | — | Ground |
| IN1 | 7 | 1 | 7 | 1 | I | Digital control to connect COM to NO or NC |
| IN2 | 3 | 6 | 3 | 6 | I | Digital control to connect COM to NO or NC |
| NC1 | — | — | 1 | 8 | I/O | Normally closed |
| NC2 | — | — | 5 | 3 | I/O | Normally closed |
| NO1 | 1 | 8 | — | — | I/O | Normally open |
| NO2 | 5 | 3 | — | — | I/O | Normally open |
| VCC | 8 | 2 | 8 | 2 | I | Power supply |
