5.13 Typical Characteristics
Figure 5-1 Driver
Pulse Skew vs Load Capacitance and Supply Voltage at TA = 25°C
(RGT Package)
Figure 5-3 . Receiver Path
High-to-Low Propagation Delay vs TA and Supply Voltage (RGT Package)

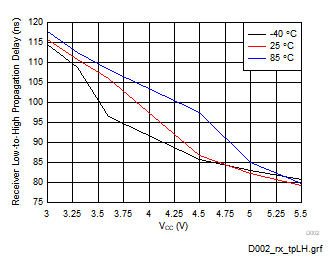

Figure 5-2 Receiver Path Low-to-High
Propagation Delay vs TA and Supply Voltage (RGT Package)
Figure 5-4 Receiver Pulse Skew
(|tpLH - tpHL|) vs TA and Supply
Voltage (RGT Package)
