5 Pin Configuration and Functions

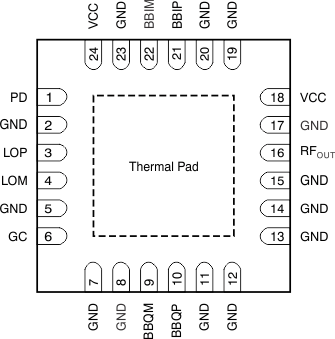

RGE Package
24 Pin VQFN
Top View
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | PD | I | Power-down digital input (high = device off) |
| 2 | GND | I | Ground |
| 3 | LOP | I | Local oscillator input |
| 4 | LOM | I | Local oscillator input |
| 5 | GND | I | Ground |
| 6 | GC | I | Gain control digital input (high = high gain) |
| 7 | GND | — | Ground or leave unconnected |
| 8 | GND | I | Ground |
| 9 | BBQM | I | In-quadrature input |
| 10 | BBQP | I | In-quadrature input |
| 11 | GND | I | Ground |
| 12 | GND | I | Ground |
| 13 | GND | I | Ground |
| 14 | GND | I | Ground |
| 15 | GND | I | Ground |
| 16 | RFOUT | O | RF output |
| 17 | GND | I | Ground |
| 18 | VCC | I | Power supply |
| 19 | GND | I | Ground |
| 20 | GND | I | Ground |
| 21 | BBIP | I | In-phase input |
| 22 | BBIM | I | In-phase input |
| 23 | GND | I | Ground |
| 24 | VCC | I | Power supply |
