5 Pin Configuration and Functions

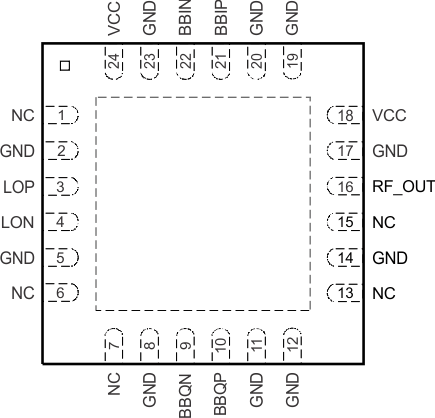

RGE Package
24-Pin VQFN With Exposed Thermal Pad
Top View
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| BBIN | 22 | I | In-phase negative input |
| BBIP | 21 | I | In-phase positive input |
| BBQN | 9 | I | Quadrature-phase negative input |
| BBQP | 10 | I | Quadrature-phase positive input |
| GND | 2, 5, 8, 11, 12, 14, 17, 19, 20, 23 | — | Ground |
| LON | 4 | I | Local oscillator (LO) negative input |
| LOP | 3 | I | Local oscillator (LO) positive input |
| NC | 1, 6, 7, 13, 15 | — | No connect |
| RF_OUT | 16 | O | RF output |
| VCC | 18, 24 | — | Power supply |
