8.2.3 Application Curves

T_A = 25°C, V_IN = 5 V, V_OUT = 1.8 V, 1.8 MHz, PWM mode, BOM = Table 8-1 unless otherwise noted.

TPSM82816 Efficiency VIN = 5.0 V and TA = 25°C

TPSM82816PVCA

PSM and FPWM

Figure 8-2 Efficiency V_IN = 5.0 V and T_A = 25°C

TPSM82816 Efficiency VIN = 3.3 V and TA = 25°C

TPSM82816PVCA

PSM and FPWM

Figure 8-4 Efficiency V_IN = 3.3 V and T_A = 25°C

TPSM82816 Efficiency VIN = 2.7 V and TA = 25°C

TPSM82816PVCA

PSM and FPWM

Figure 8-6 Efficiency V_IN = 2.7 V and T_A = 25°C

TPSM82816 Efficiency VIN = 5.0 V and TA = 85°C

TPSM82816PVCA

FPWM

Figure 8-8 Efficiency V_IN = 5.0 V and T_A = 85°C

TPSM82816 Efficiency VIN = 3.3 V and TA = 85°C

TPSM82816PVCA

FPWM

Figure 8-10 Efficiency V_IN = 3.3 V and T_A = 85°C

TPSM82816 Efficiency VIN = 2.7 V and TA = 85°C

TPSM82816PVCA

FPWM

Figure 8-12 Efficiency V_IN = 2.7 V and T_A = 85°C

TPSM82816 Load Regulation VIN = 5.0 V (PSM)

T_A = 25°C

Figure 8-14 Load Regulation V_IN = 5.0 V (PSM)

TPSM82816 Load Regulation VIN = 3.3 V (PSM)

T_A = 25°C

Figure 8-16 Load Regulation V_IN = 3.3 V (PSM)

TPSM82816 Load Regulation VIN = 2.7 V (PSM)

T_A = 25°C

Figure 8-18 Load Regulation V_IN = 2.7 V (PSM)

TPSM82816 TPSM82816PVCA Safe Operating Area VIN = 5.0 V

R_θJA = 26.6°C/W

f_SW = 1.8 MHz

T_J,max = 125 °C

Figure 8-20 TPSM82816PVCA Safe Operating Area V_IN = 5.0 V

TPSM82816 TPSM82816SIE Safe Operating Area VIN = 5.0 V

R_θJA = 32.2 °C/W

f_SW = 1.8 MHz

T_J,max = 125 °C

Figure 8-22 TPSM82816SIE Safe Operating Area V_IN = 5.0 V

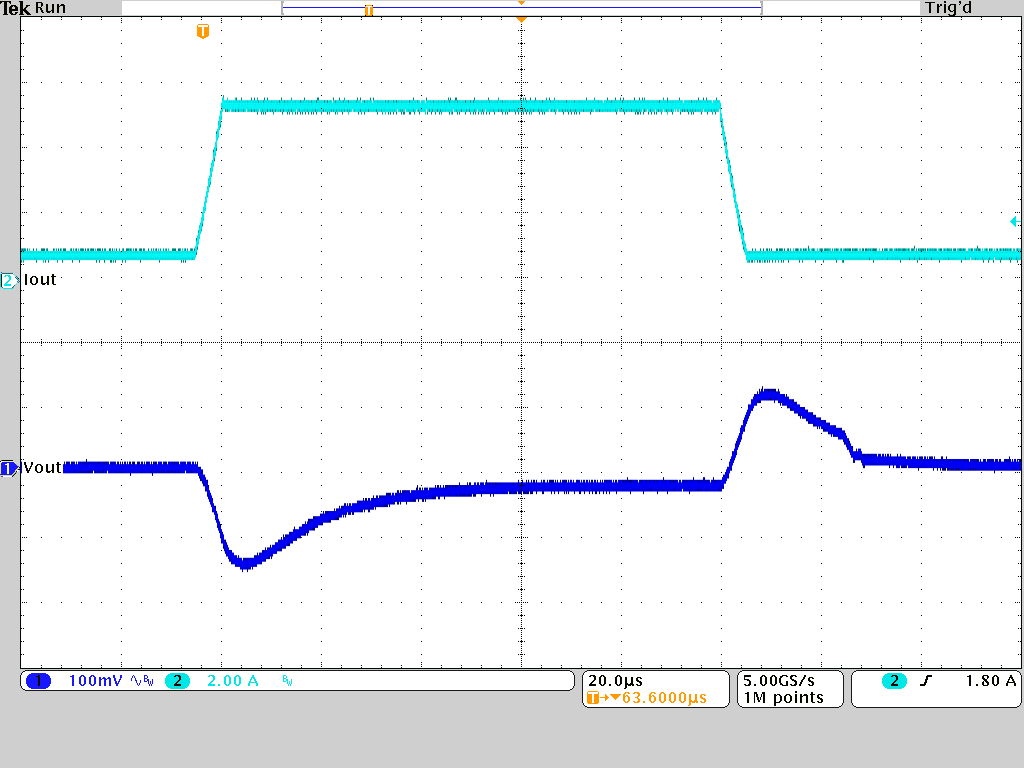

V_OUT = 1.8 V	PSM	T_A = 25°C
V_IN = 5.0 V	I_OUT = 0.6 A to 5.4 A to 0.6 A

Figure 8-24 Load Transient Response

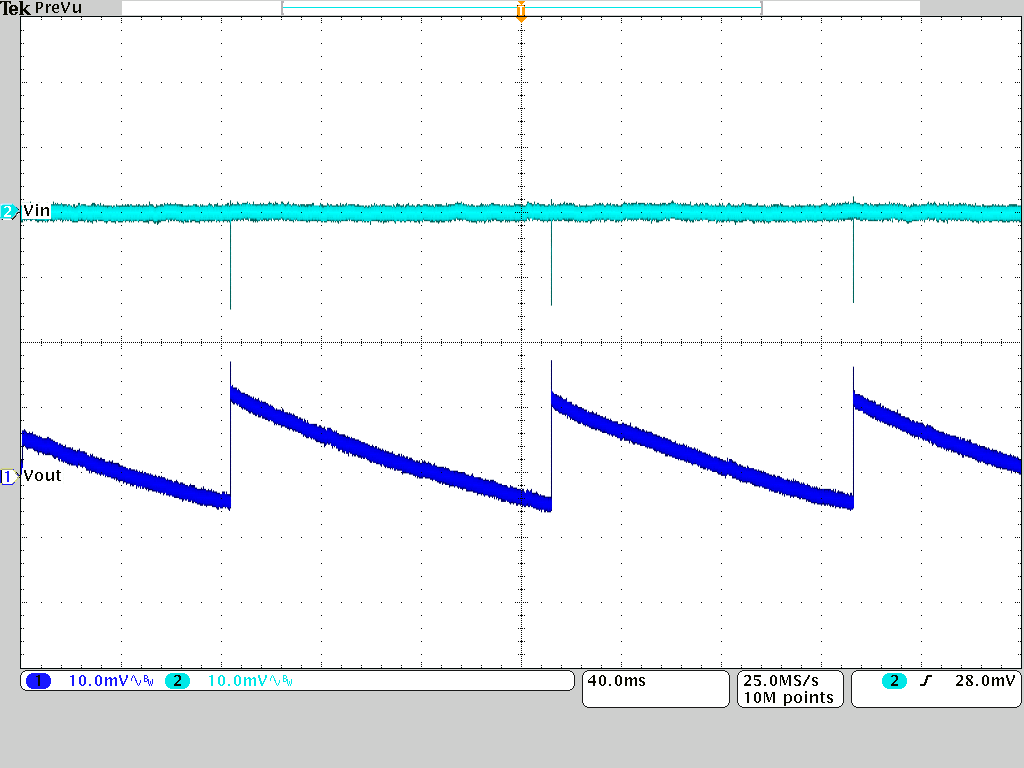

TPSM82816 Output and Input Voltage Ripple

V_OUT = 1.8 V	PSM	T_A = 25 °C
I_OUT = 0 A	V_IN = 5.0 V	BW = 20 MHz

Figure 8-26 Output and Input Voltage Ripple

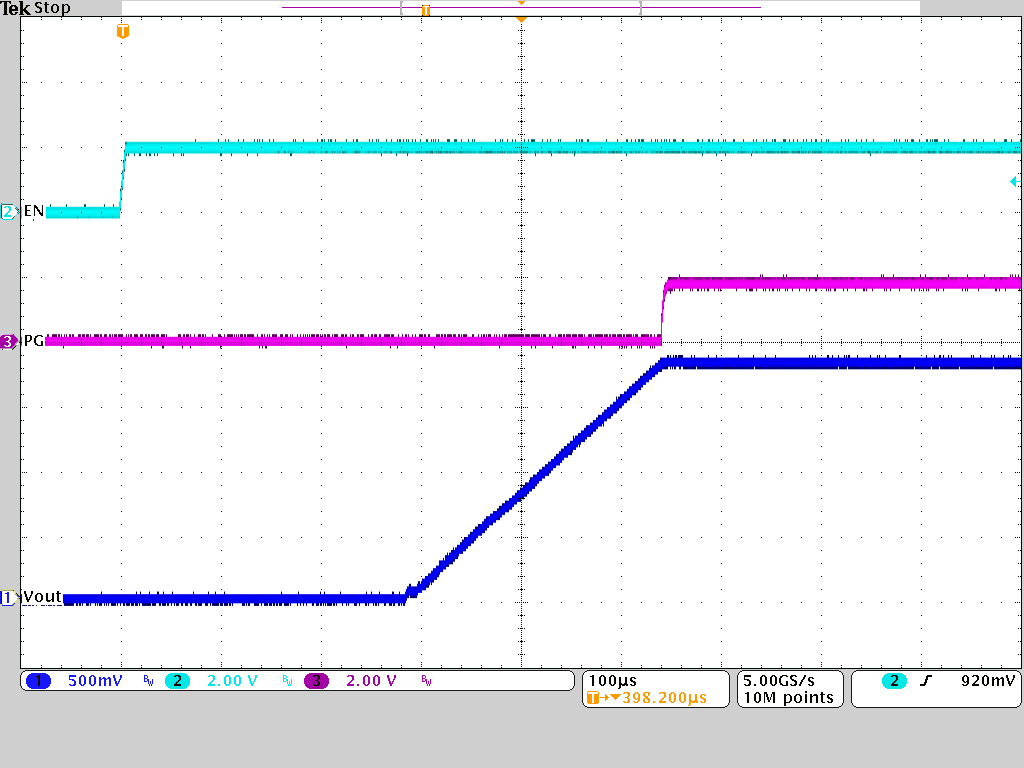

V_OUT = 1.8 V	PSM	T_A = 25°C
I_OUT = 0 A	V_IN = 5 V	C_SS = 4.7 nF

Figure 8-28 Start-Up Timing

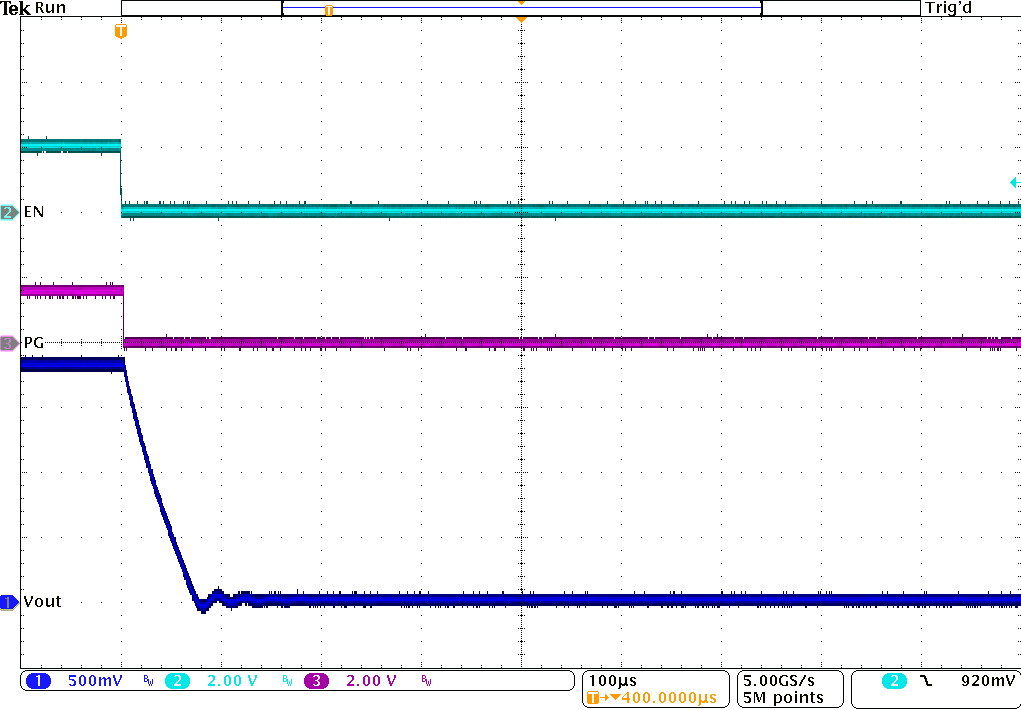

V_OUT = 1.8 V	PSM	T_A = 25°C
I_OUT = 0.1 A	V_IN = 5 V	C_SS = 4.7 nF

Figure 8-30 Shut-Down Timing

TPSM82816SIE

PSM and FPWM

Figure 8-3 Efficiency V_IN = 5.0 V and T_A = 25°C

TPSM82816SIE

PSM and FPWM

Figure 8-5 Efficiency V_IN = 3.3 V and T_A = 25°C

TPSM82816SIE

PSM and FPWM

Figure 8-7 Efficiency V_IN = 2.7 V and T_A = 25°C

TPSM82816SIE

FPWM

Figure 8-9 Efficiency V_IN = 5.0 V and T_A = 85°C

TPSM82816SIE

FPWM

Figure 8-11 Efficiency V_IN = 3.3 V and T_A = 85°C

TPSM82816SIE

FPWM

Figure 8-13 Efficiency V_IN = 2.7 V and T_A = 85°C

T_A = 25°C

Figure 8-15 Load Regulation V_IN = 5.0 V (FPWM)

TPSM82816 Load Regulation VIN = 3.3 V (FPWM)

T_A = 25°C

Figure 8-17 Load Regulation V_IN = 3.3 V (FPWM)

TPSM82816 Load Regulation VIN = 2.7 V (FPWM)

T_A = 25°C

Figure 8-19 Load Regulation V_IN = 2.7 V (FPWM)

TPSM82816 TPSM82816PVCA Safe Operating Area VIN = 3.3 V

R_θJA = 26.6°C/W

f_SW = 1.8 MHz

T_J,max = 125 °C

Figure 8-21 TPSM82816PVCA Safe Operating Area V_IN = 3.3 V

TPSM82816 TPSM82816SIE Safe Operating Area VIN = 3.3 V

R_θJA = 32.2 °C/W

f_SW = 1.8 MHz

T_J,max = 125 °C

Figure 8-23 TPSM82816SIE Safe Operating Area V_IN = 3.3 V

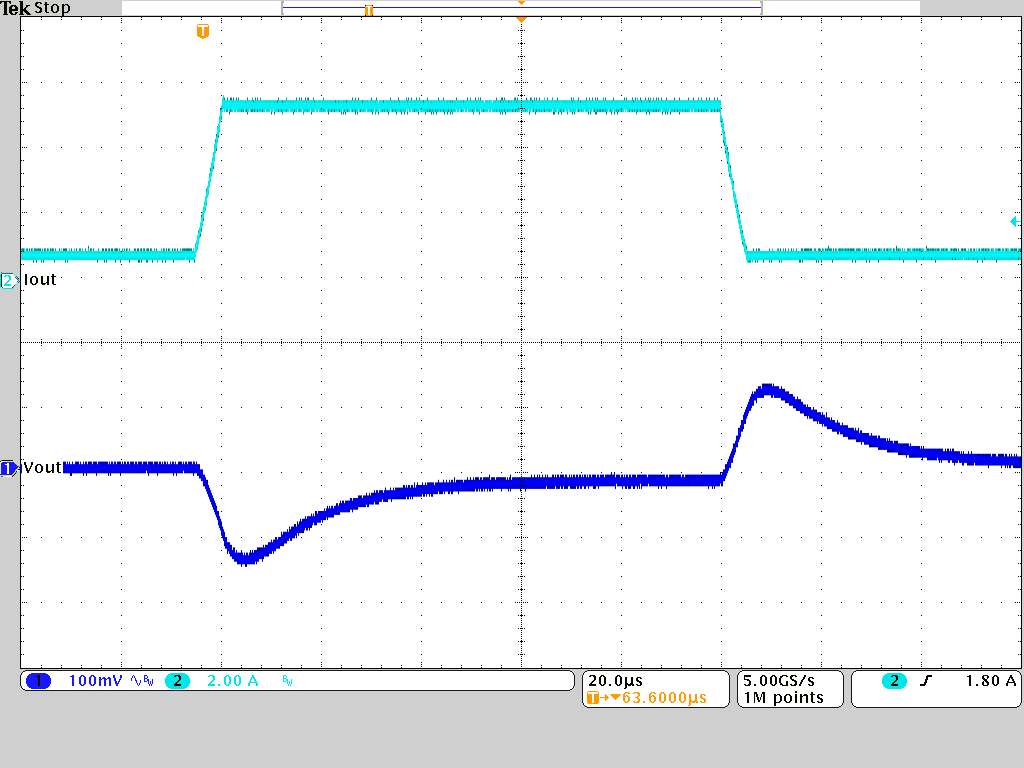

V_OUT = 1.8 V	FPWM	T_A = 25°C
V_IN = 5.0 V	I_OUT = 0.6 A to 5.4 A to 0.6 A

Figure 8-25 Load Transient Response

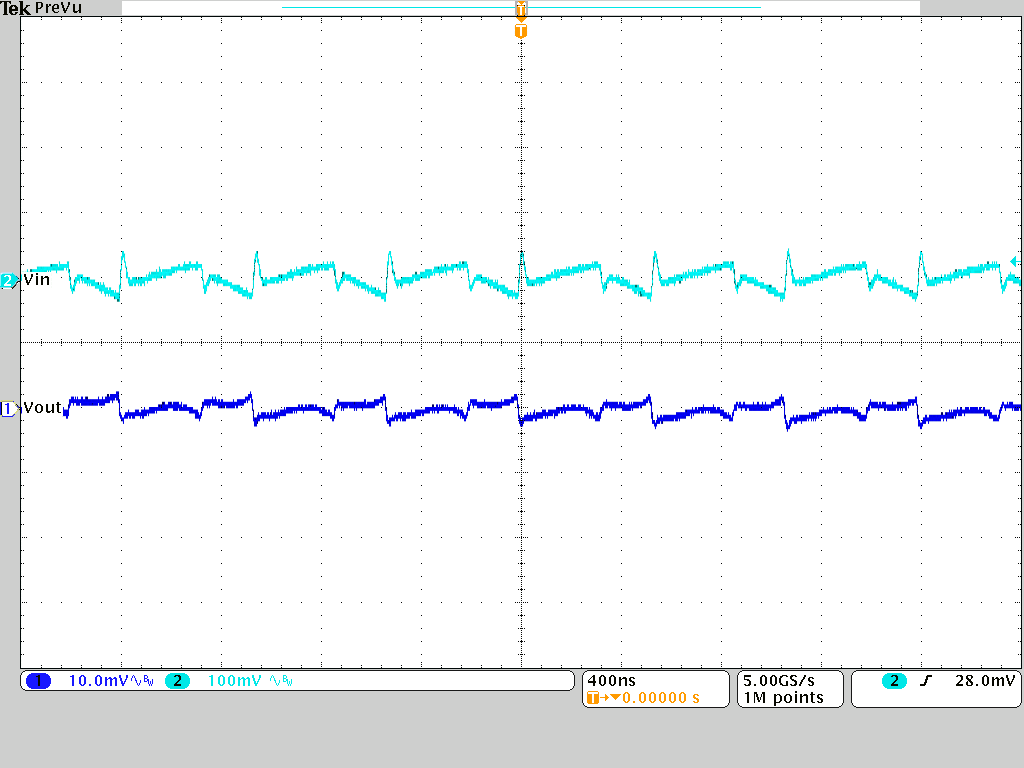

V_OUT = 1.8 V	PWM	T_A = 25°C
I_OUT = 4 A	V_IN = 5.0 V	BW = 20 MHz

Figure 8-27 Output and Input Voltage Ripple

V_OUT = 1.8 V	FPWM	T_A = 25°C
I_OUT = 4 A	V_IN = 5 V	C_SS = 4.7 nF

Figure 8-29 Start-Up Timing

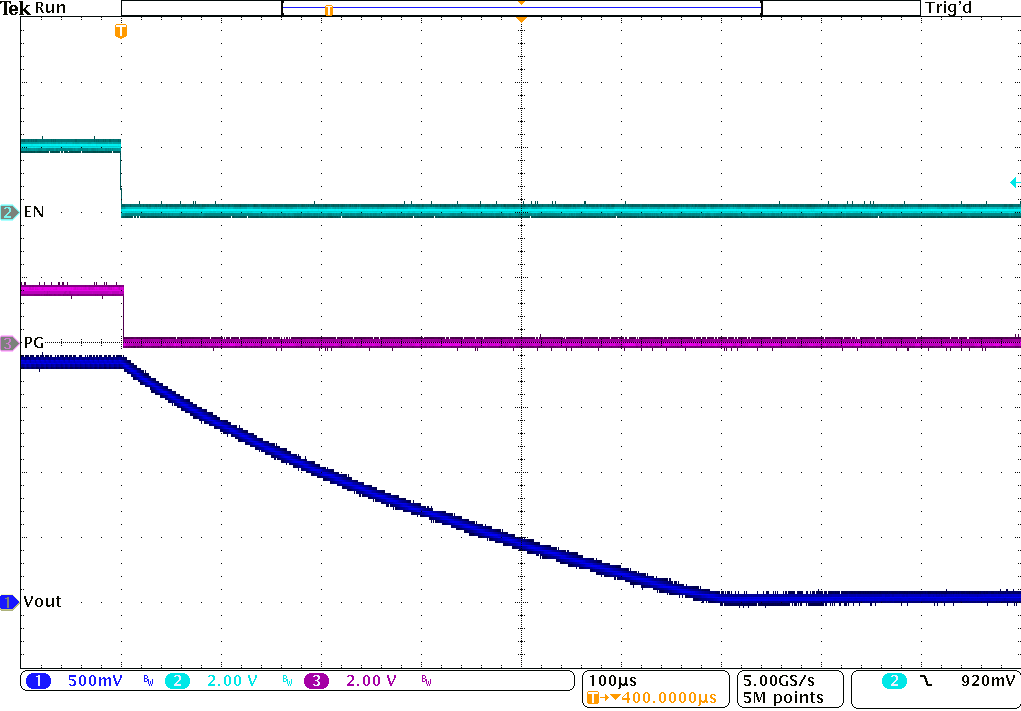

V_OUT = 1.8 V	FPWM	T_A = 25°C
I_OUT = 1A	V_IN = 5 V	C_SS = 4.7 nF

Figure 8-31 Shut-Down Timing
