7.3.7.1.4 Configuration 2: Dual Phase, Primary and Secondary Sync to External System Clock
- Direct connection between external clock and SYNC pin of primary and secondary.
- Direct VSHARE and ISHARE connections between primary and secondary.
- SYNC pin of primary is configured as sync in by its MODE pin.
- Primary and secondary receive external system clock from SYNC pin. Their RT pin determine the sync point for clock phase shift.

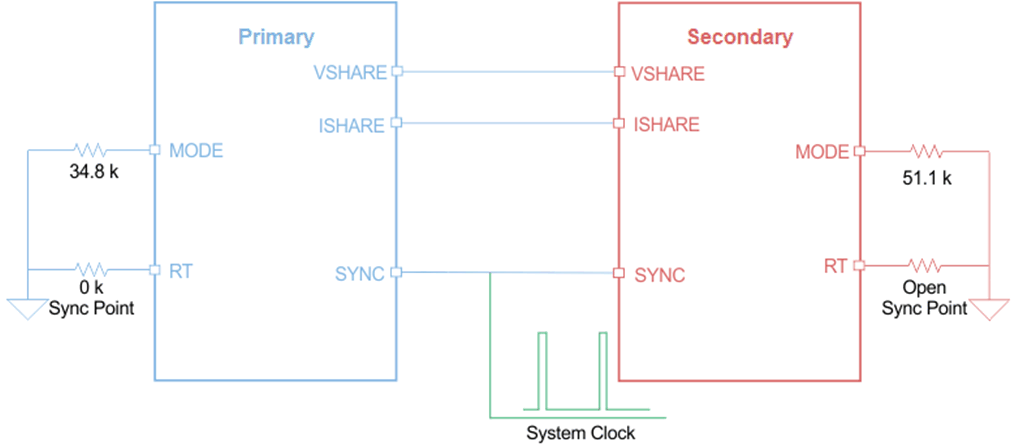

Figure 7-6 2-Phase
Stackable, 180° Phase Shift: Primary and Secondary Sync to
External System Clock
