8.2.1 Boost Regulator With Separate or Paralleled Channels
A boost application is appropriate for a situation where V(VIN) is from 9 V to 16 V and LED forward voltage is always higher than battery the battery voltage. One can use the boost-regulator topology with each channel driving a separate LED string. For higher-current applications, connect both channels in parallel to drive a single LED string. The per-channel design parameters and calculations are the same in either case.

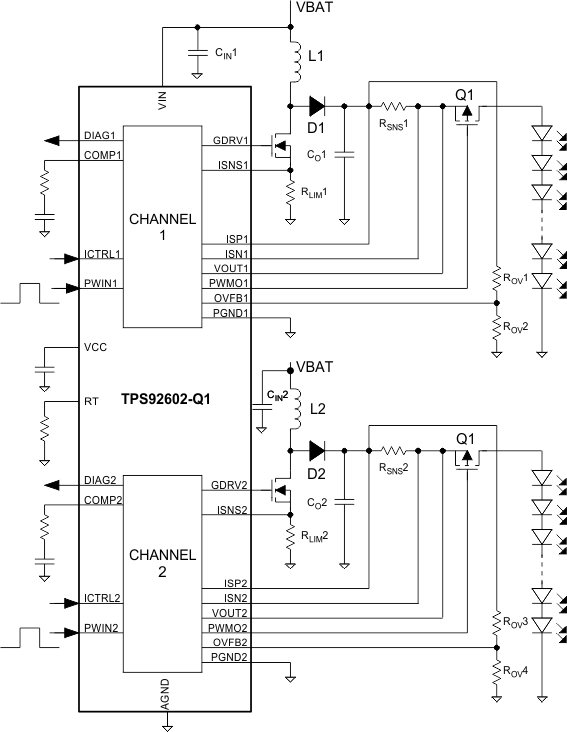

Figure 14. Boost Regulator (VIN < VO) Simplified Schematic, Separate Channels

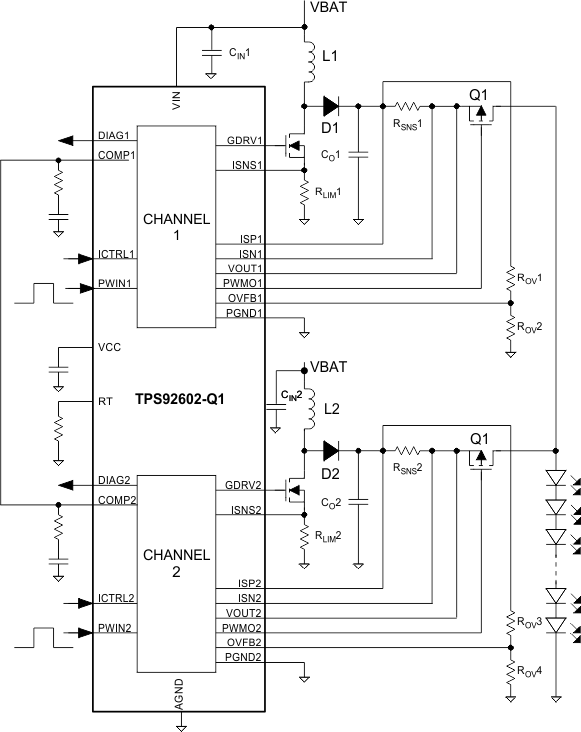

Figure 15. Boost Regulator (VIN < VO) Simplified Schematic, Paralleled Channels

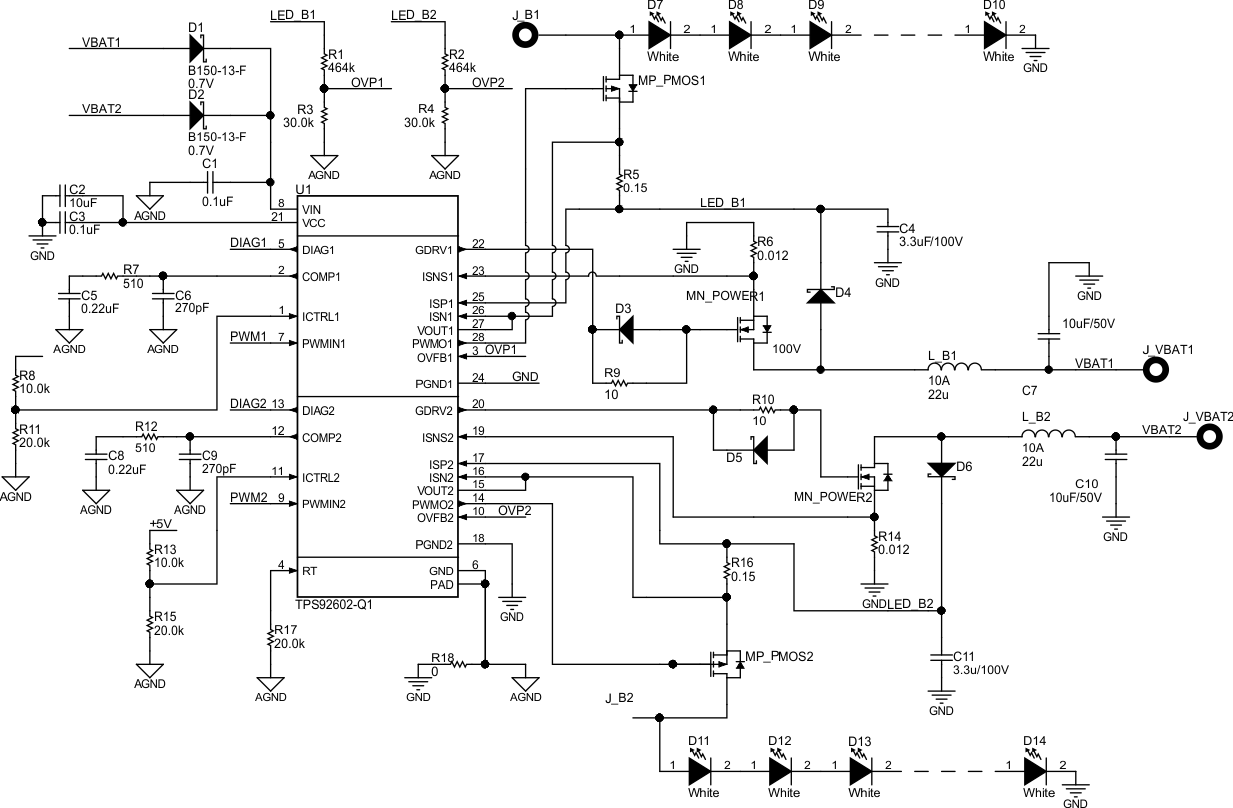

Figure 16. Boost Regulator (VIN < VO) Detailed Schematic
