6.7 Typical Characteristics
VIN = 12 V, unless otherwise specified.

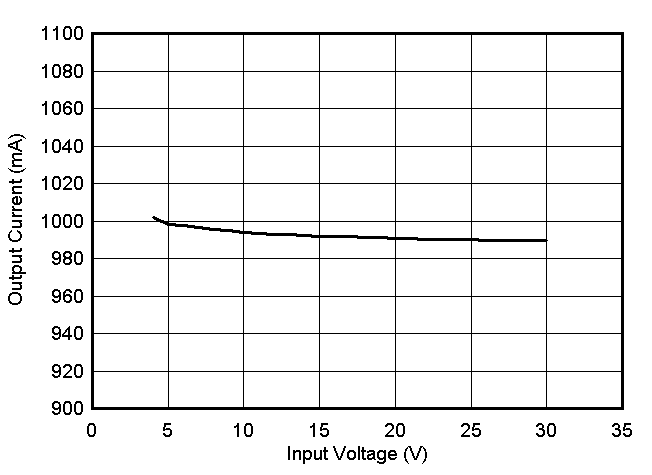

Figure 6-1 Output Current vs Input
Voltage

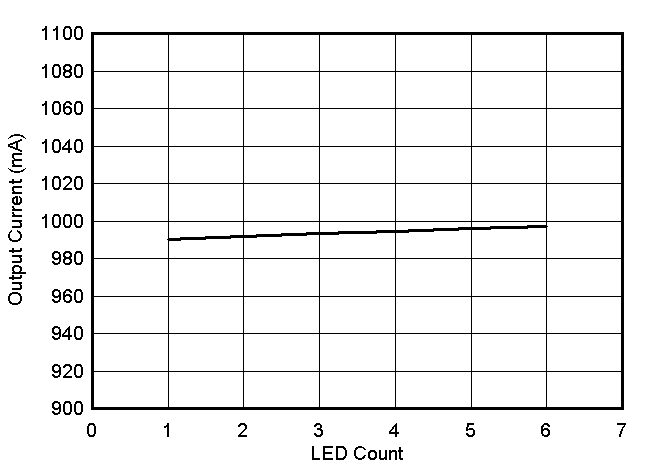

Figure 6-3 Output Current vs LED
Count

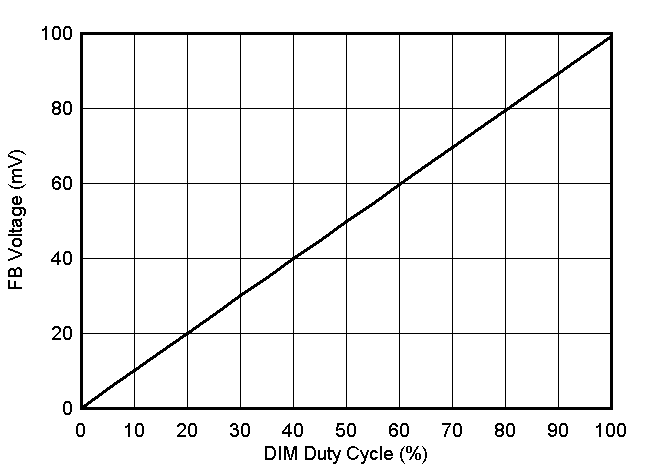

Figure 6-5 DIM Duty Cycle vs FB
Voltage in Analog Dimming (for TPS92200D2)

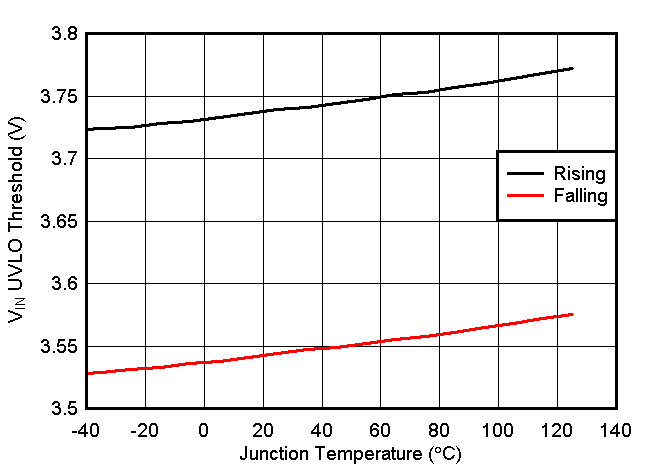

Figure 6-7 VIN UVLO Threshold vs
Junction Temperature

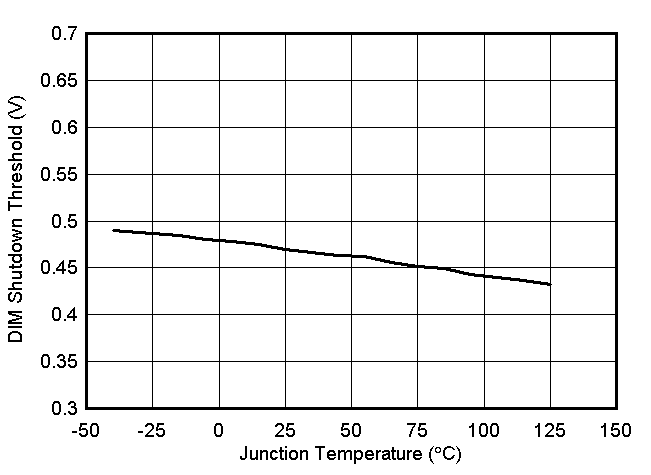

Figure 6-9 DIM Shutdown Threshold vs
Junction Temperature

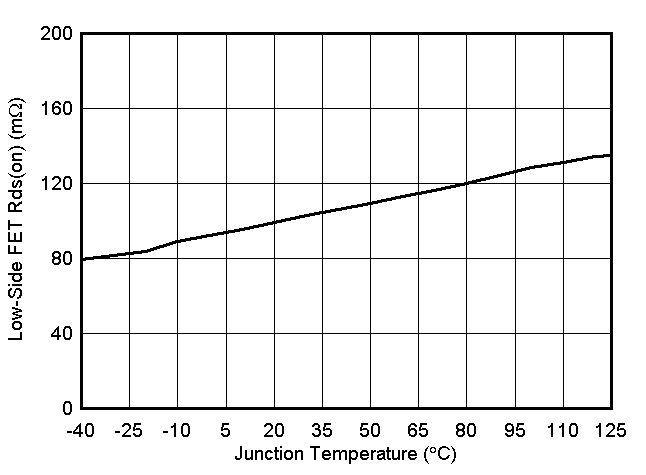

Figure 6-11 Low-Side FET On
Resistance vs Junction Temperature

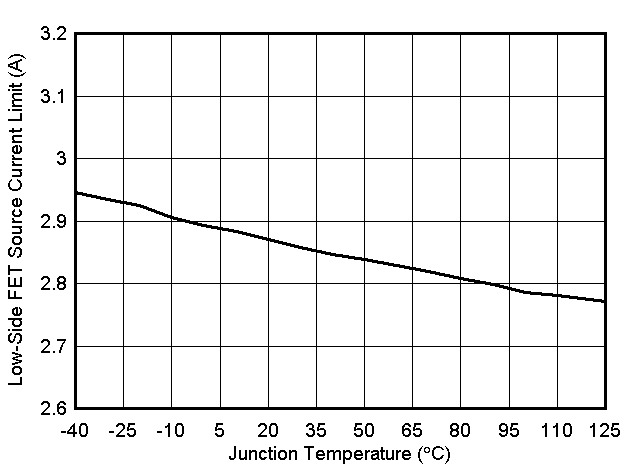

Figure 6-13 Low-Side FET Source
Current Limit vs Junction Temperature

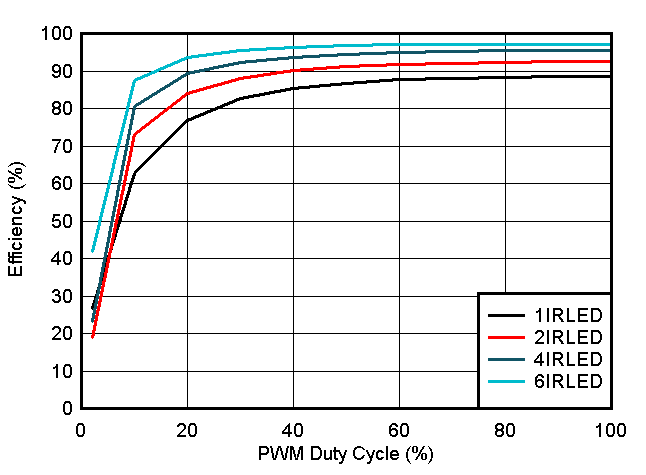

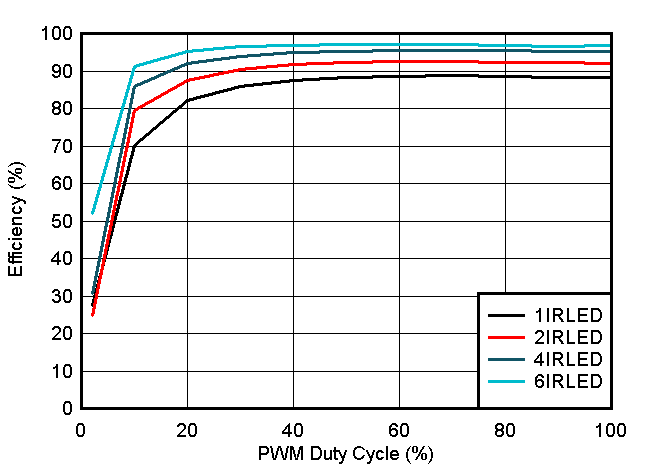

Figure 6-15 Efficiency at 1-A Output Current, 4.7-μH Inductor, 12-V Input Voltage

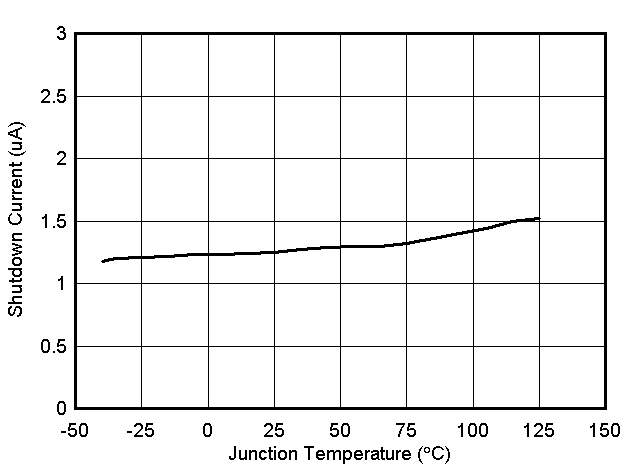

Figure 6-2 Shutdown Current vs
Junction Temperature

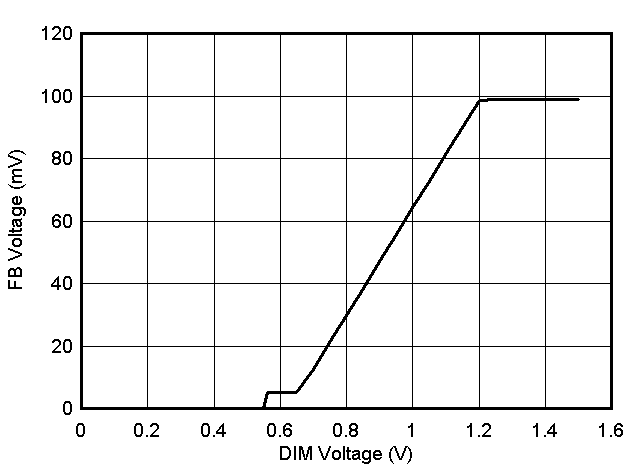

Figure 6-4 DIM Voltage vs FB Voltage
in Analog Dimming (for TPS92200D1)

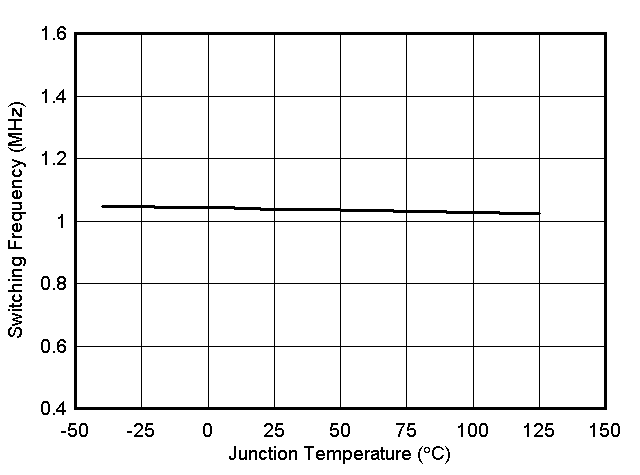

Figure 6-6 Switching Frequency vs
Junction Temperature

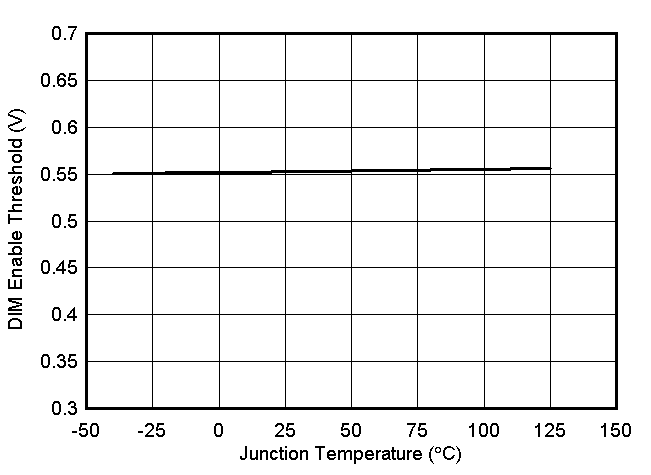

Figure 6-8 DIM Enable Threshold vs
Junction Temperature

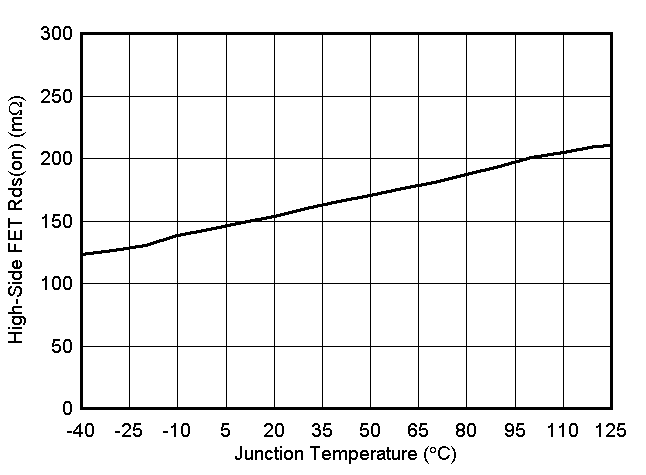

Figure 6-10 High-side FET On
Resistance vs Junction Temperature

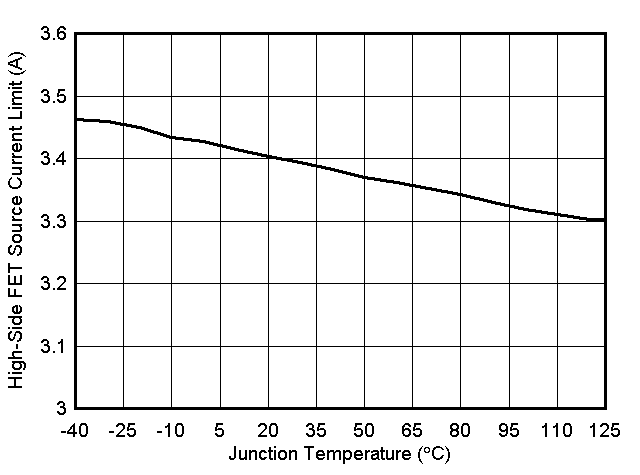

Figure 6-12 High-Side FET Source
Current Limit vs Junction Temperature

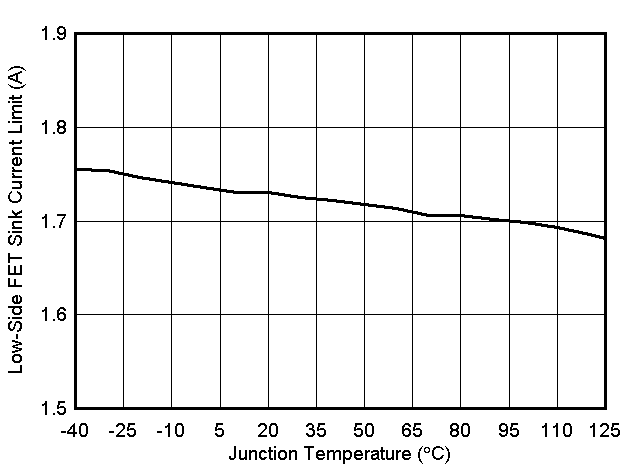

Figure 6-14 Low-Side FET Sink Current
Limit vs Junction Temperature
Figure 6-16 Efficiency at 1.5-A Output Current, 4.7-μH Inductor, 12-V Input Voltage
