ZHCSIS8F September 2018 – March 2024 TPS7H2201-SEP , TPS7H2201-SP
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Device Options
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Electrical Characteristics: All Devices
- 6.6 Electrical Characteristics: CFP and KGD Options
- 6.7 Electrical Characteristics: HTSSOP Option
- 6.8 Switching Characteristics (All Devices)
- 6.9 Quality Conformance Inspection
- 6.10 Typical Characteristics
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Device and Documentation Support
- 11Revision History
- 12Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- DAP|32
散熱焊盤機械數據 (封裝 | 引腳)
- DAP|32
訂購信息

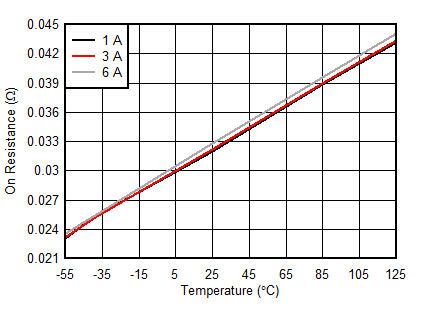

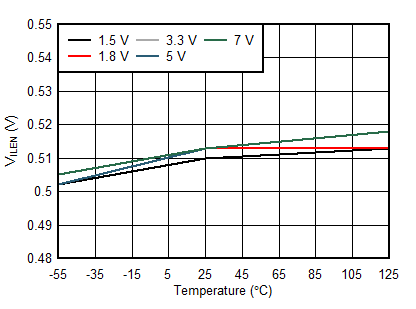

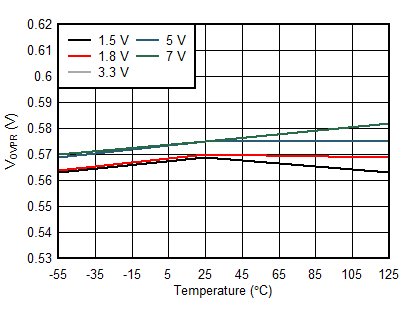

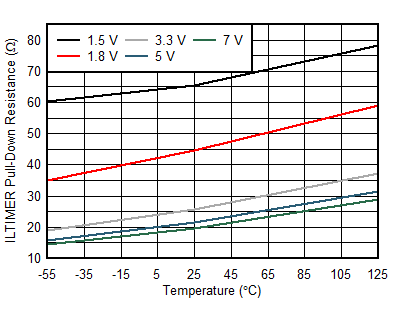

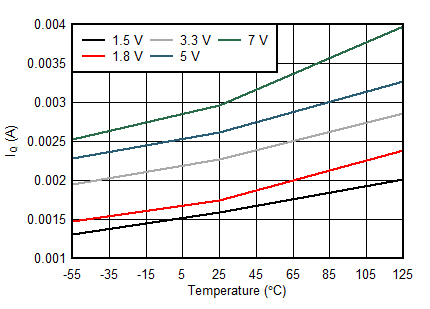

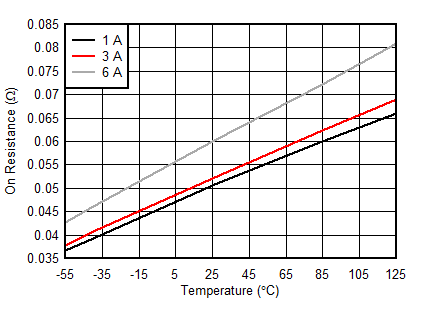

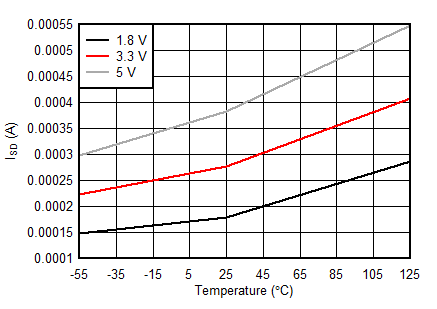

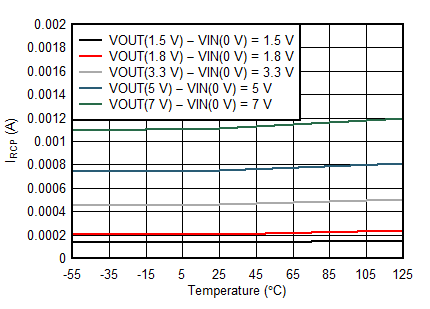

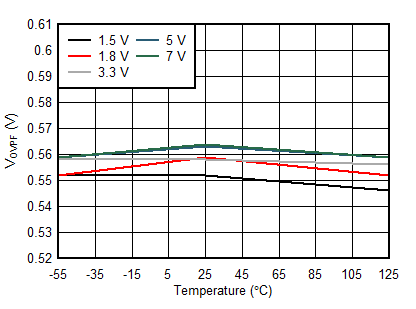

6.10 Typical Characteristics
| IIL = 7.5 A |
| IIL = 7.5 A |
| IIL = 7.5 A |
| EN pin driven directly | ||
| OVP pin driven directly | ||
| IIL = 7.5 A |
| IIL = 7.5 A |
| IIL = 7.5 A |
| EN pin driven directly | ||
| OVP pin driven directly | ||
| Waveform at 3.3 V is obscured by the 5 V | ||
