8.1.10 Adjustable Operation
As shown in Figure 8-16, the output voltage of the device can be set using a single external resistor (RNR/SS). Equation 6 calculates the output voltage.

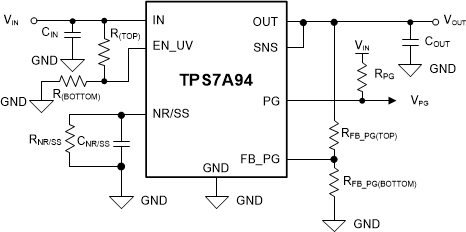

Figure 8-16 Typical
CircuitTable 8-4 shows the recommended RNR/SS resistor values to achieve several common rails using a standard 1%-tolerance resistor.
| TARGETED OUTPUT VOLTAGE (V) |
RNR/SS (kΩ) | CALCULATED OUTPUT VOLTAGE (V) |
|---|---|---|
| 0.4 | 2.67 | 0.4005 |
| 0.5 | 3.32 | 0.498 |
| 0.6 | 4.02 | 0.603 |
| 0.7 | 4.64 | 0.696 |
| 0.8 | 5.36 | 0.804 |
| 0.9 | 6.04 | 0.906 |
| 1.0 | 6.65 | 0.9975 |
| 1.2 | 8.06 | 1.209 |
| 1.5 | 10.0 | 1.5 |
| 2.5 | 16.5 | 2.475 |
| 3.0 | 20.0 | 3.0 |
| 3.3 | 22.1 | 3.315 |
| 3.6 | 24.3 | 3.645 |
| 4.7 | 31.6 | 4.74 |
| 5.0 | 33.2 | 4.98 |
To avoid engaging the current limit during start-up with a large COUT capacitor, make sure that:
- A minimum NR/SS capacitor of 1 μF is used
- When the output capacitor is greater than 100 μF, maintain a COUT to CNR/SS ratio < 100
Because the set resistor is also placed on the NR/SS pin, consider using a thin-film resistor and provide enough resistor temperature drift to ensure the targeted accuracy.
