8.2.3 Application Curves
| IOUT = 3 A |
| IOUT = 2 A |
| IOUT = 2 A |

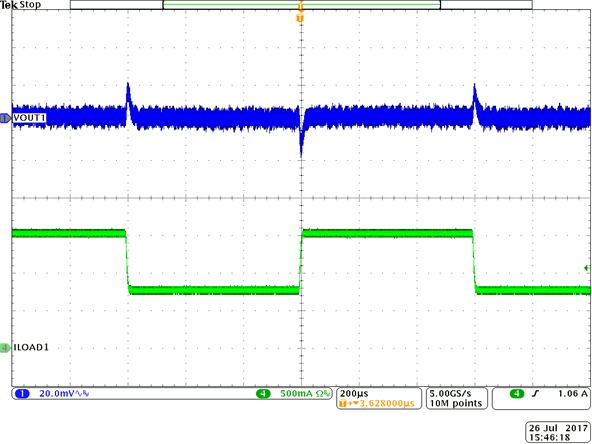

| IOUT = 0.75 to 1.5 A | SR = 0.25 A/μs |
| IOUT = 0.5 to 1 A | SR = 0.25 A/μs |
| IOUT = 0.5 to 1 A | SR = 0.25 A/μs |

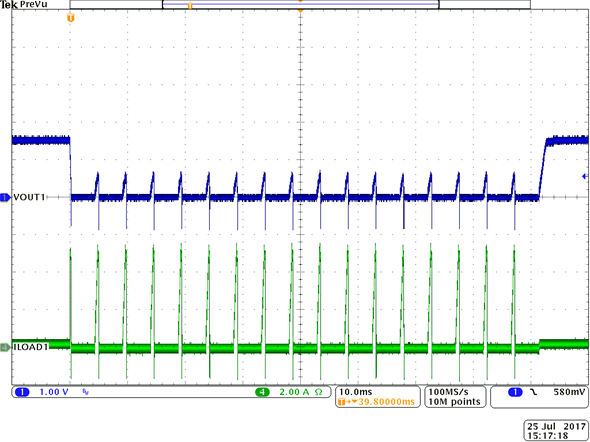

Figure 8-15 BUCK1
Hiccup and Recovery
Figure 8-17 BUCK3
Hiccup and Recovery
Figure 8-19 180°
Out-of-Phase
| VIN = 5 V, VOUT1 = 1.5 V/2 A, VOUT2 = 1.2 V/1.5 A, | |
| VOUT3 = 2.5 V/1.5 A, | |
| TA = 25°C EVM condition 4 layers, 75 mm × 75 mm |
| IOUT = 2 A |
A.

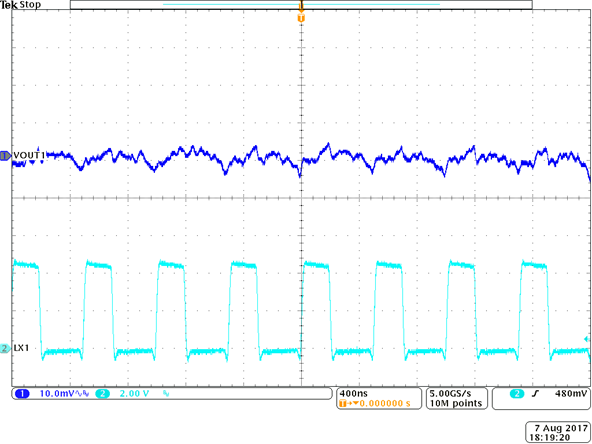

Figure 8-6 BUCK1

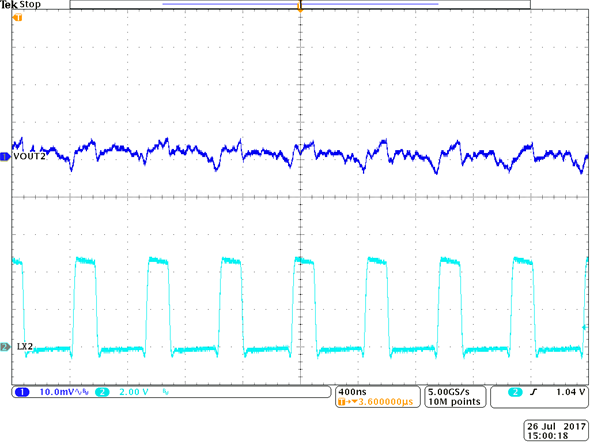

Output Voltage Ripple| IOUT = 3 A |
| IOUT = 2 A |

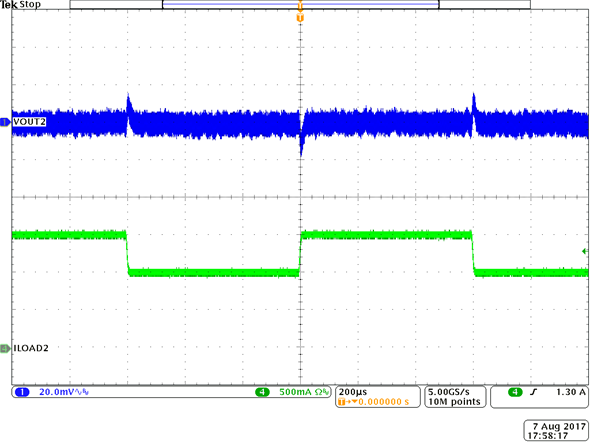

| IOUT = 1.5 to 2.25 A | SR = 0.25 A/μs |
| IOUT = 1 to 1.5 A | SR = 0.25 A/μs |
| IOUT = 1 to 1.5 A | SR = 0.25 A/μs |

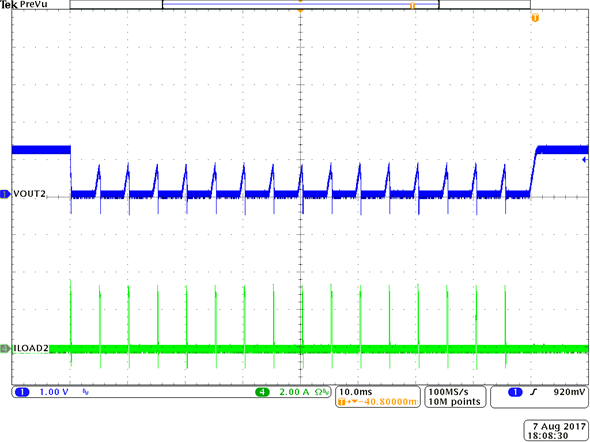

Figure 8-16 BUCK2
Hiccup and Recovery

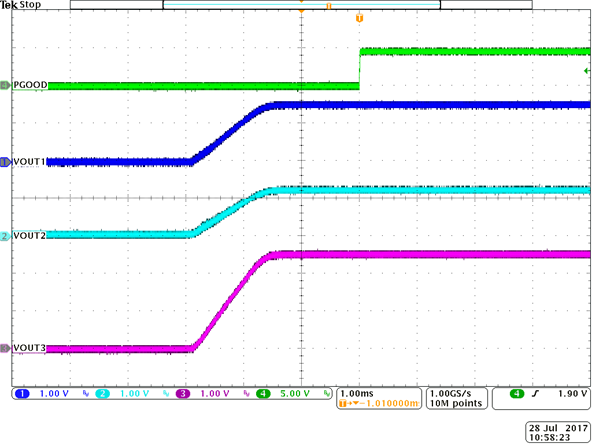

Figure 8-18 PGOOD

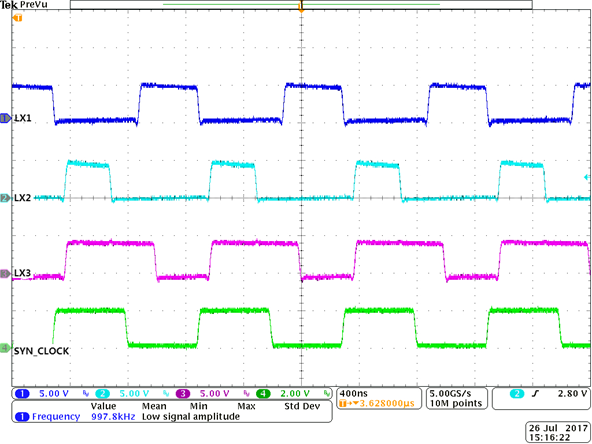

Figure 8-20 Synchronization With External Clock
