8.3.2.1 Programmable PGOOD DELAY
An internal 3-μA pullup current source is connected to PG_DLY pin. The PGOOD delay time can be programmed by connecting a capacitor between PG_DLY pin and ground. The delay time can be calculated as Equation 2.
Equation 2.
where
- VPG_DLY = 1.5 V
- Ip = 3 μA

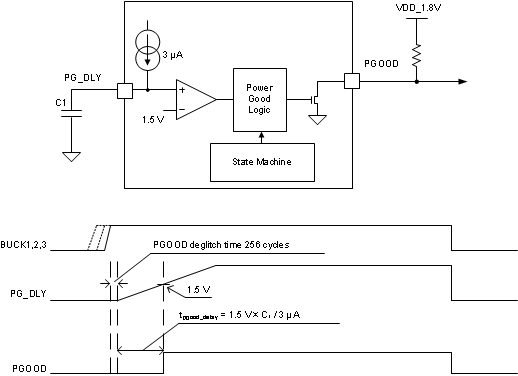

Figure 8-2 Power Good Delay Timing Diagram
