8.1.1 Applications Without Backup Battery
In applications that require always-on supplies but no battery backup, the CC input to the power path must be connected to ground.

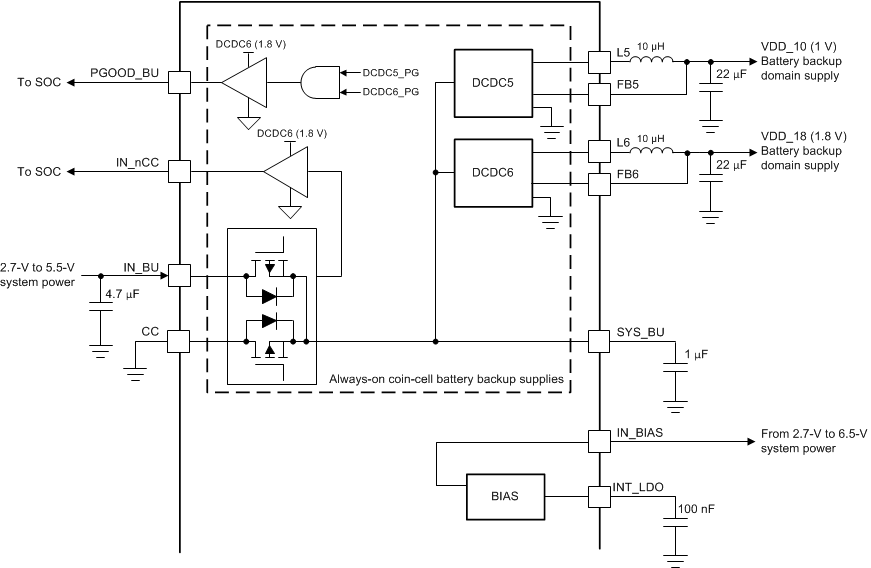

Figure 8-1 CC Input to Power PathNote:
In applications without backup battery, CC input must be tied to ground.
