6.7 Typical Characteristics

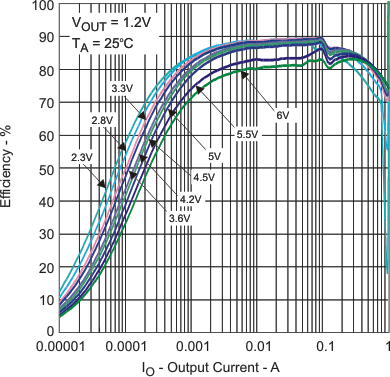

Figure 1. Efficiency (DC-DC 600-mA PFM Mode)
vs Output Current

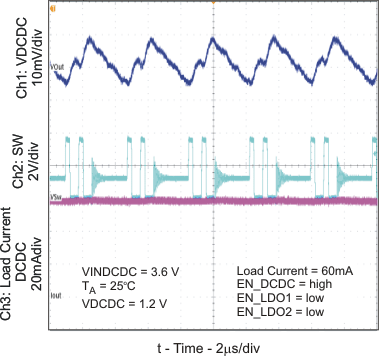

Figure 3. Output Voltage Ripple (DC-DC PFM Mode)

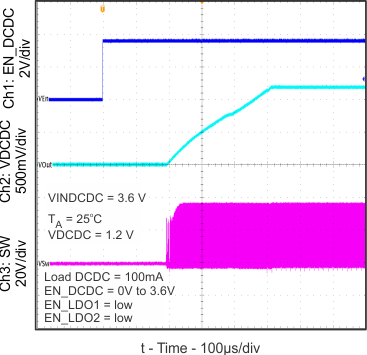

Figure 5. Start-Up Timing (DC-DC)
Figure 7. Line Transient Response (DC-DC PFM Mode)
Figure 9. Line Transient Response (LDOx)
Figure 11. Load Transient Response (DC-DC PWM Mode)

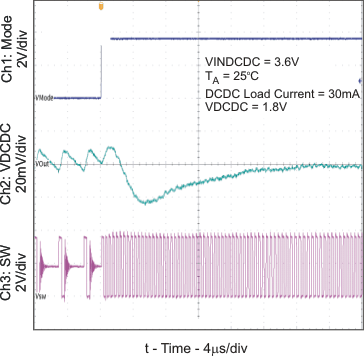

Figure 13. PFM to PWM Transition (DC-DC)

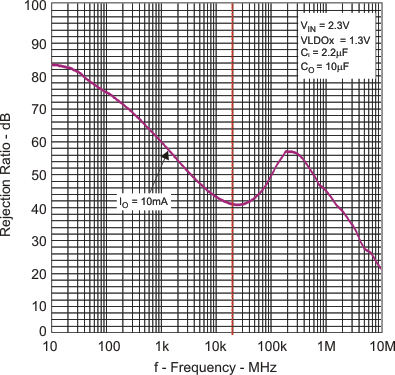

Figure 15. Power-Supply Rejection Ratio (LDOx) vs Frequency

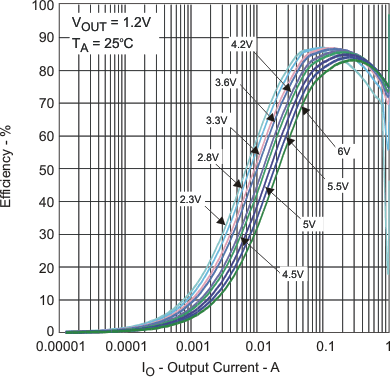

Figure 2. Efficiency (DC-DC 600-mA PWM Mode)
vs Output Current

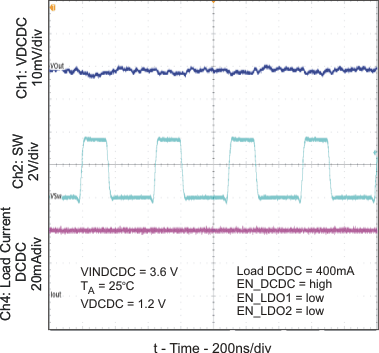

Figure 4. Output Voltage Ripple (DC-DC PWM Mode)

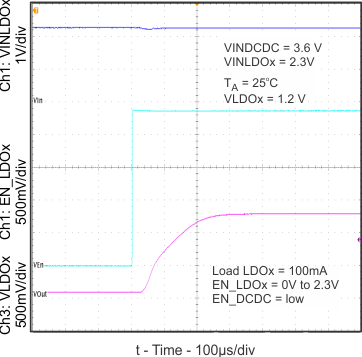

Figure 6. Start-Up Timing (LDOx)
Figure 8. Line Transient Response (DC-DC PWM Mode)
Figure 10. Load Transient Response (DC-DC PFM Mode)
Figure 12. Load Transient Response (LDOx)

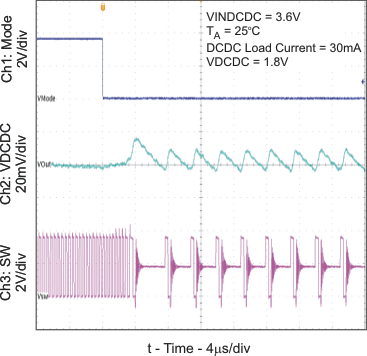

Figure 14. PWM to PFM Transition (DC-DC)
