8.3.3 Typical Application for Laser Diode Bias
Laser diode bias typically requires a voltage of about -1 V from a 3.3 V supply. The TPS63710 was optimized for these operating conditions. The passive components have been chosen for a fixed supply voltage of 3.3 V. The number of the input, output and CCP capacitors have been adjusted for the input and output voltage in this application.

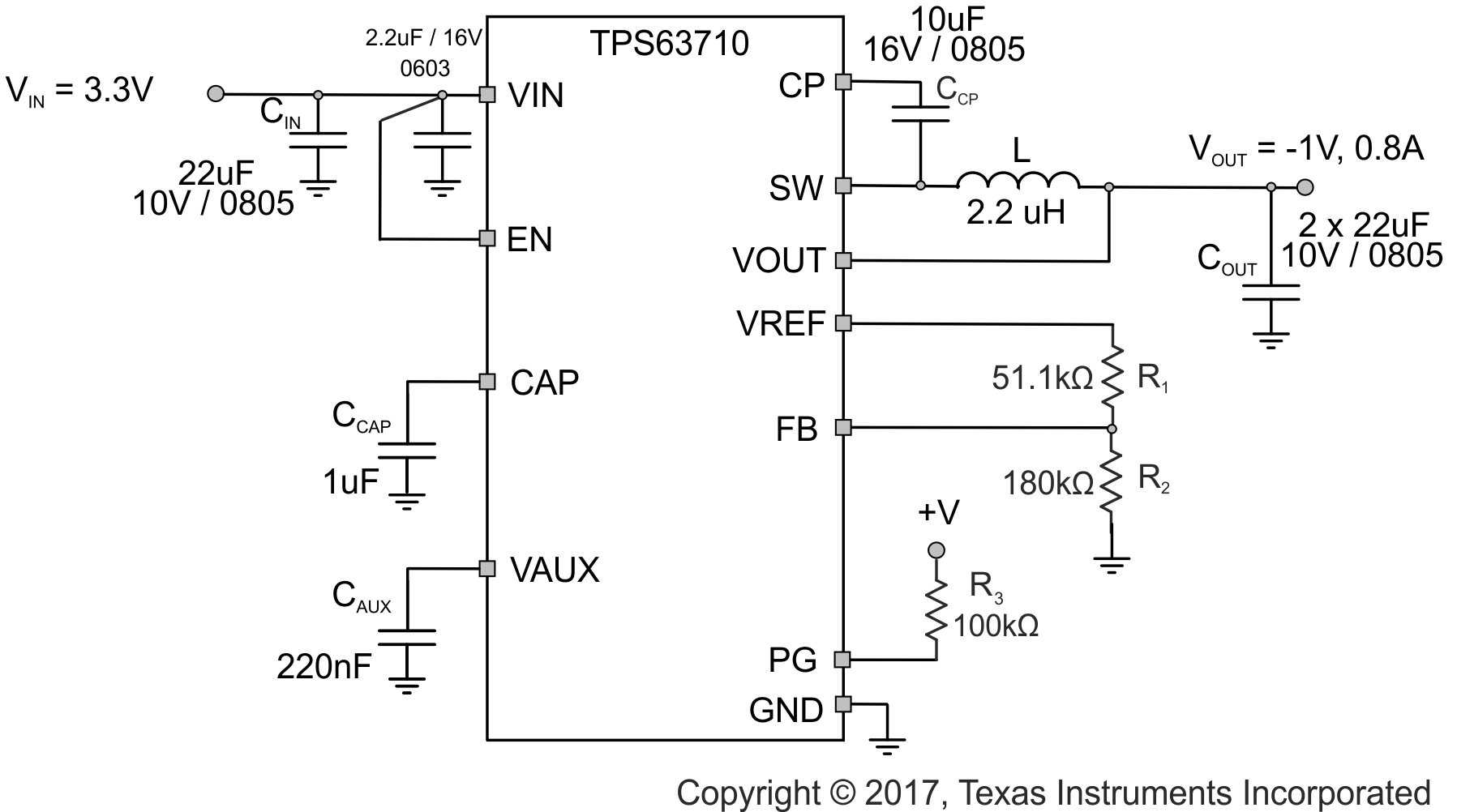

Figure 43. Typical Application for an Output Voltage of -1 V
