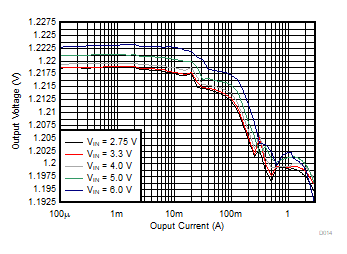

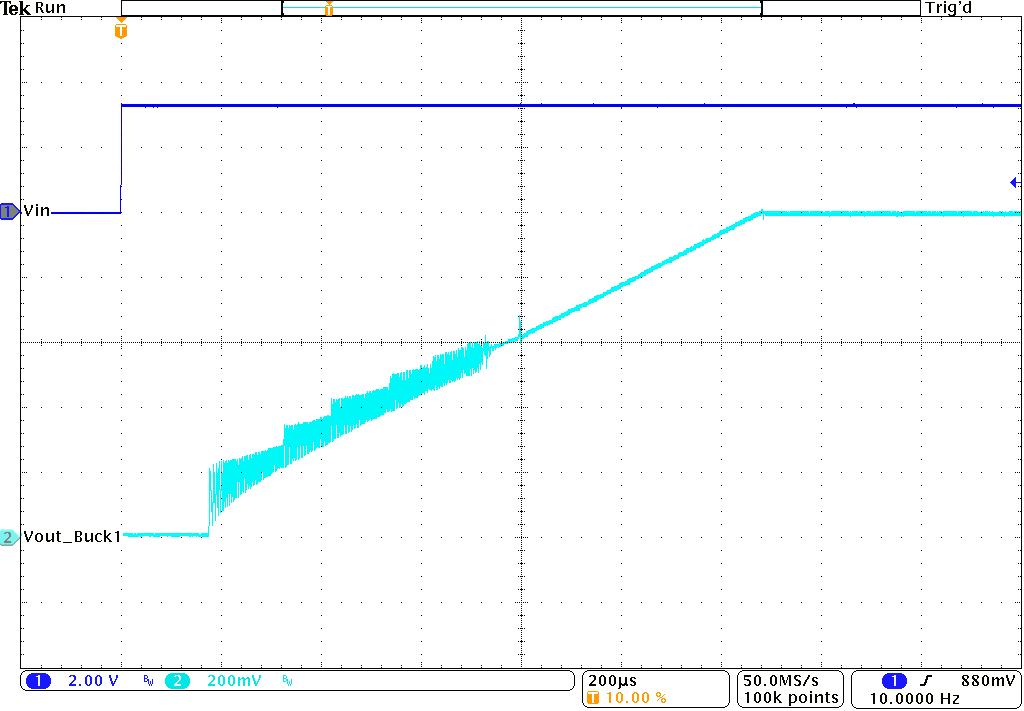

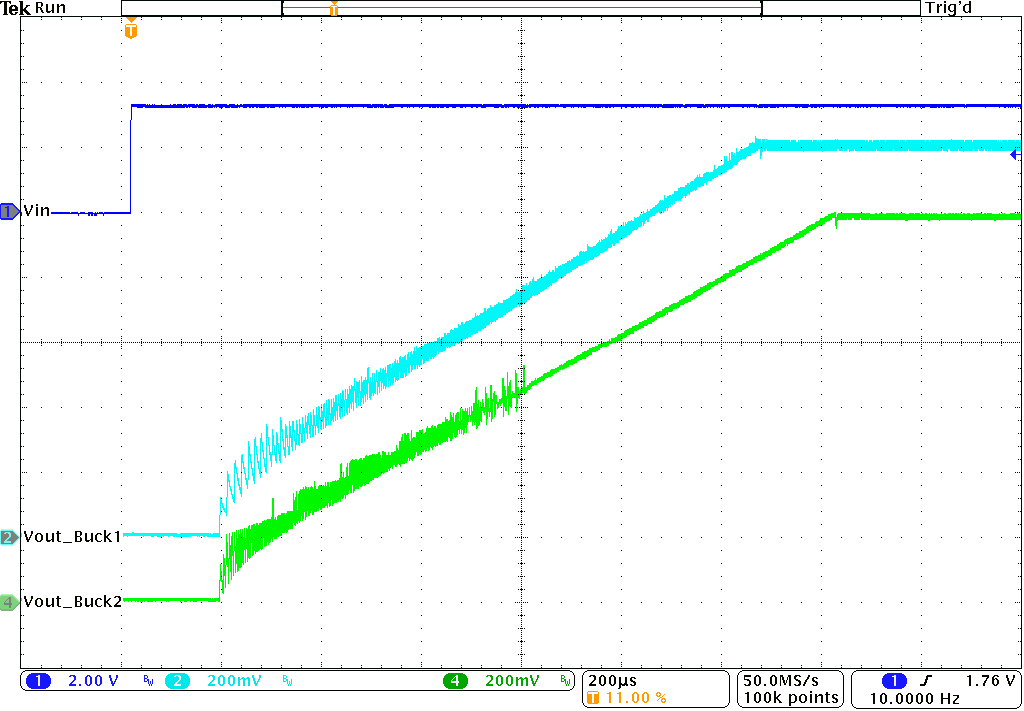

10.2.3 應用曲線
除非另有說明，否則所有繪圖都是在器件設為 PWM 模式時的標稱開關頻率 2.25MHz 下繪制的。BOM 依據 表 8-1。
除非另有說明，否則所有繪圖都是在器件設為 PWM 模式時的標稱開關頻率 2.25MHz 下繪制的。BOM 依據 表 8-1。

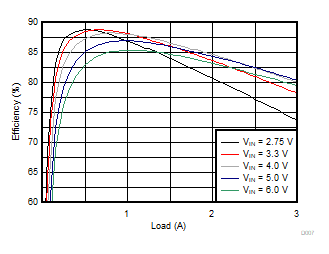

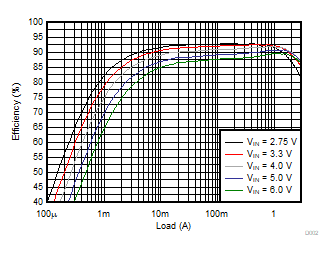

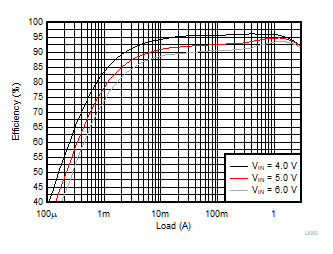

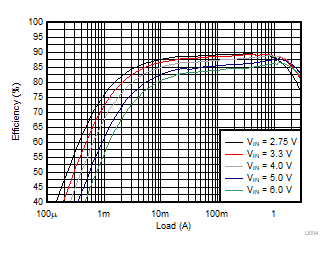

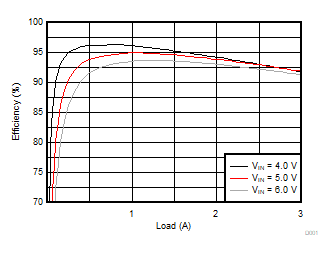

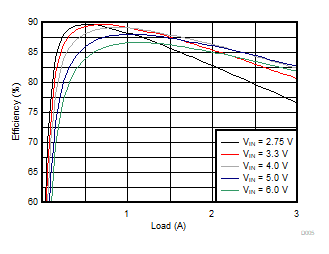

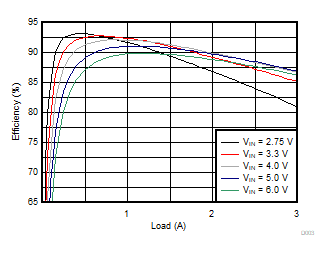

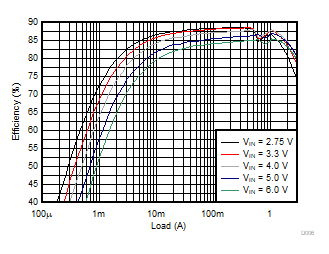

圖 10-2 效率與輸出電流之間的關系. 除非另有說明，否則所有繪圖都是在器件設為 PWM 模式時的標稱開關頻率 2.25MHz 下繪制的。BOM 依據 表 8-1。

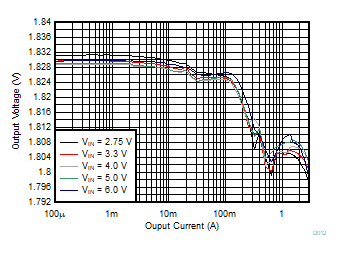

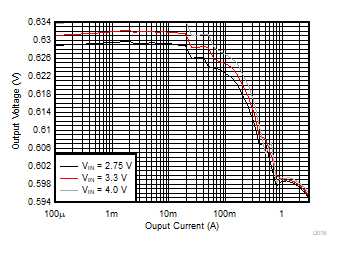

| VOUT = 3.3 V | PFM | TA = 25°C |
| VOUT = 1.8 V | PFM | TA = 25°C |
| VOUT = 1.2 V | PFM | TA = 25°C |
| VOUT = 1.0 V | PFM | TA = 25°C |
| VOUT = 0.6 V | PFM | TA = 25°C |
| VOUT = 3.3 V | PFM | TA = 25°C |
| VOUT = 1.8 V | PFM | TA = 25°C |
| VOUT = 1.2 V | PFM | TA = 25°C |
| VOUT = 1.0 V | PFM | TA = 25°C |
| VOUT = 0.6 V | PFM | TA = 25°C |

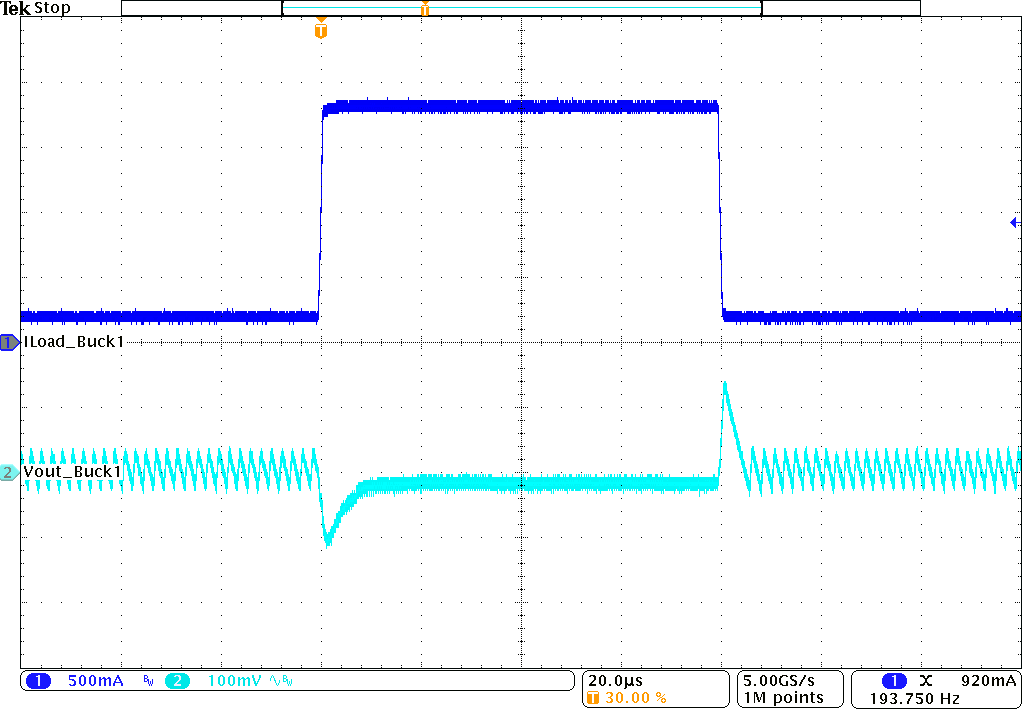

| VOUT = 3.3 V | PFM | TA = 25°C |

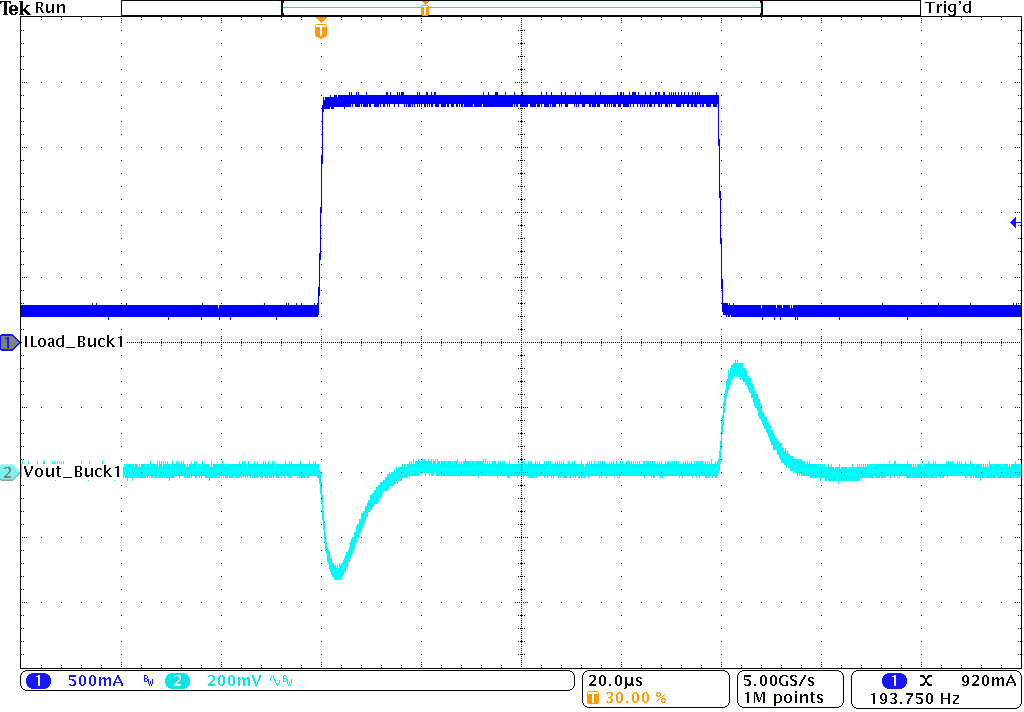

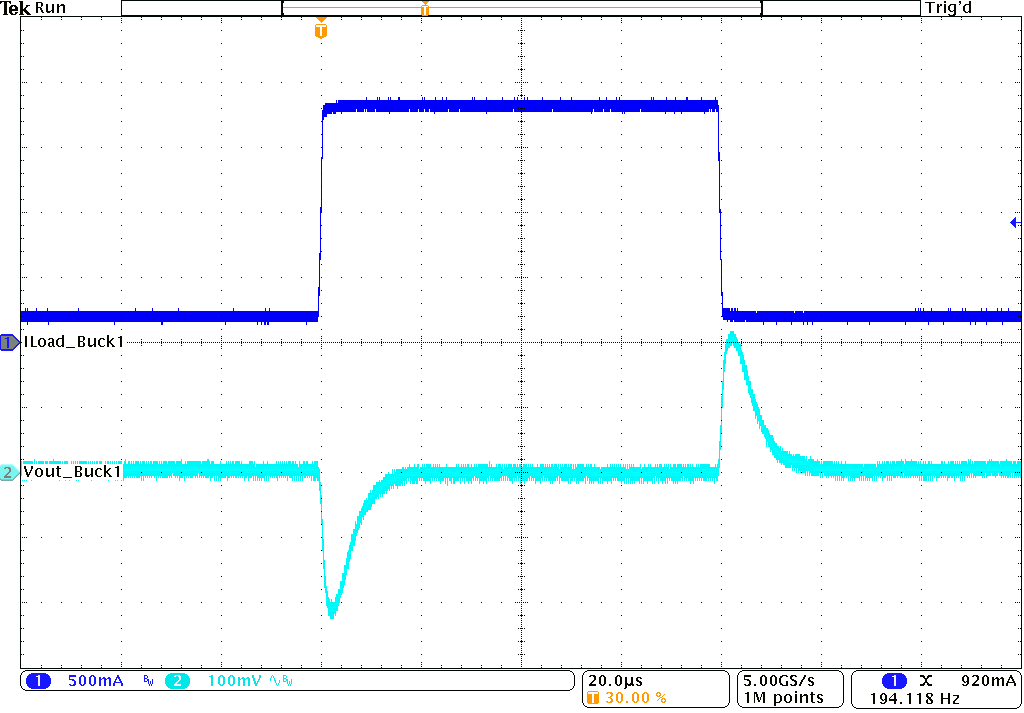

| VIN = 5.0V | IOUT = 0.2A 至 1.8A 至 0.2A | |
| VOUT = 1.8 V | PFM | TA = 25°C |
| VIN = 5.0V | IOUT = 0.2A 至 1.8A 至 0.2A | |
| VOUT = 1.2 V | PFM | TA = 25°C |
| VIN = 5.0V | IOUT = 0.2A 至 1.8A 至 0.2A | |
| VOUT = 1.0 V | PFM | TA = 25°C |
| VIN = 5.0V | IOUT = 0.2A 至 1.8A 至 0.2A | |
| VOUT = 0.6 V | PFM | TA = 25°C |
| VIN = 3.3V | IOUT = 0.2A 至 1.8A 至 0.2A | |

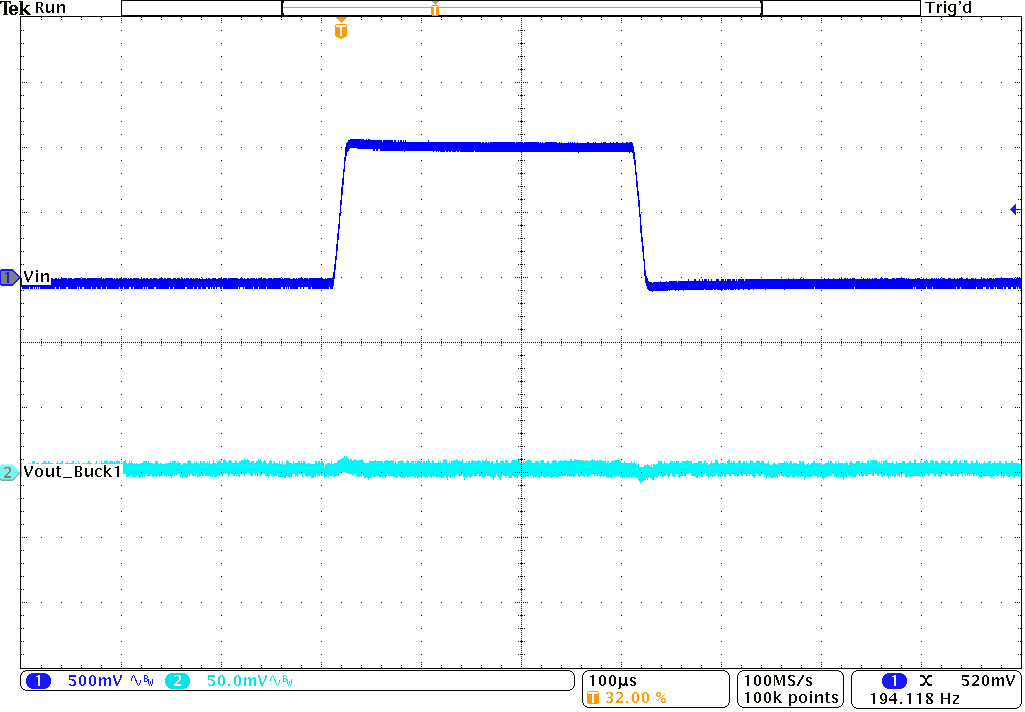

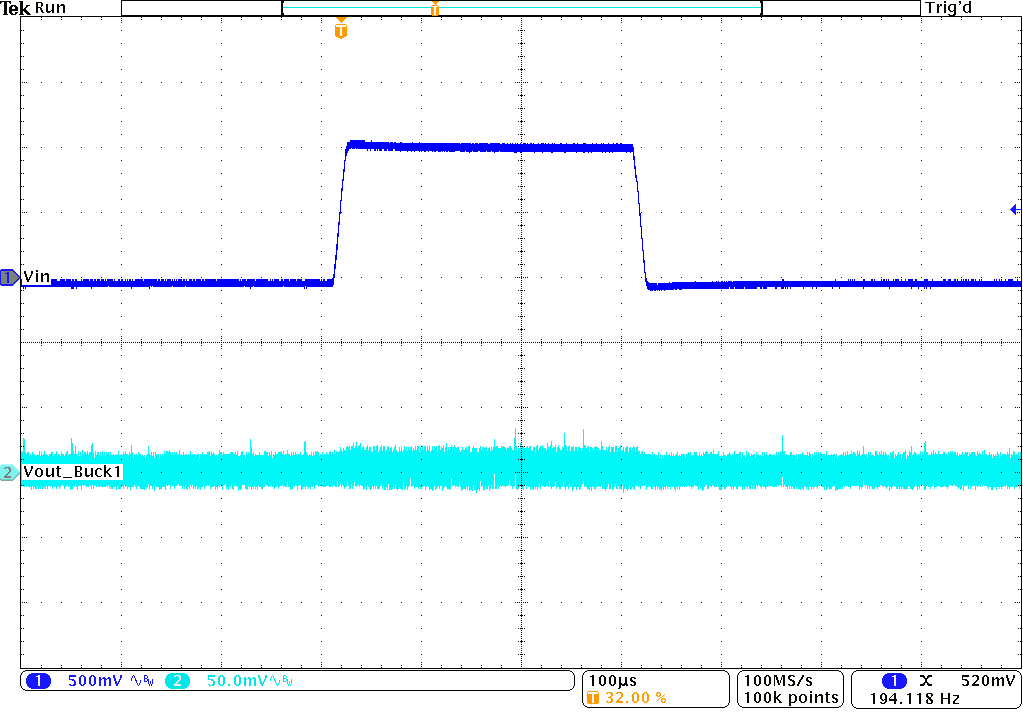

| VOUT = 3.3 V | PFM | TA = 25°C |

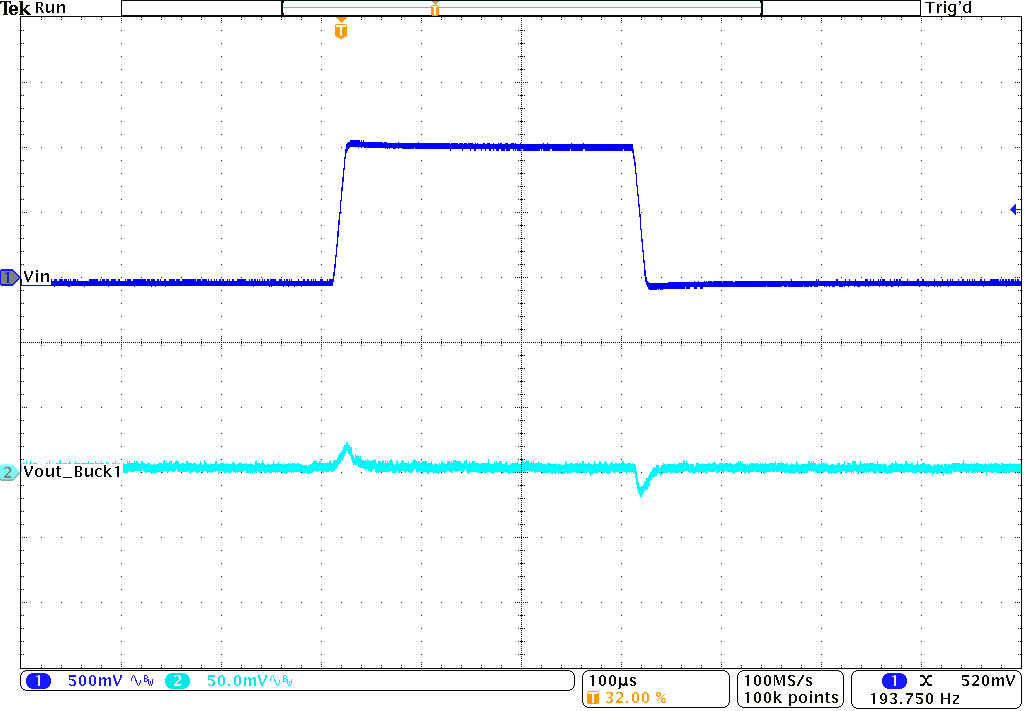

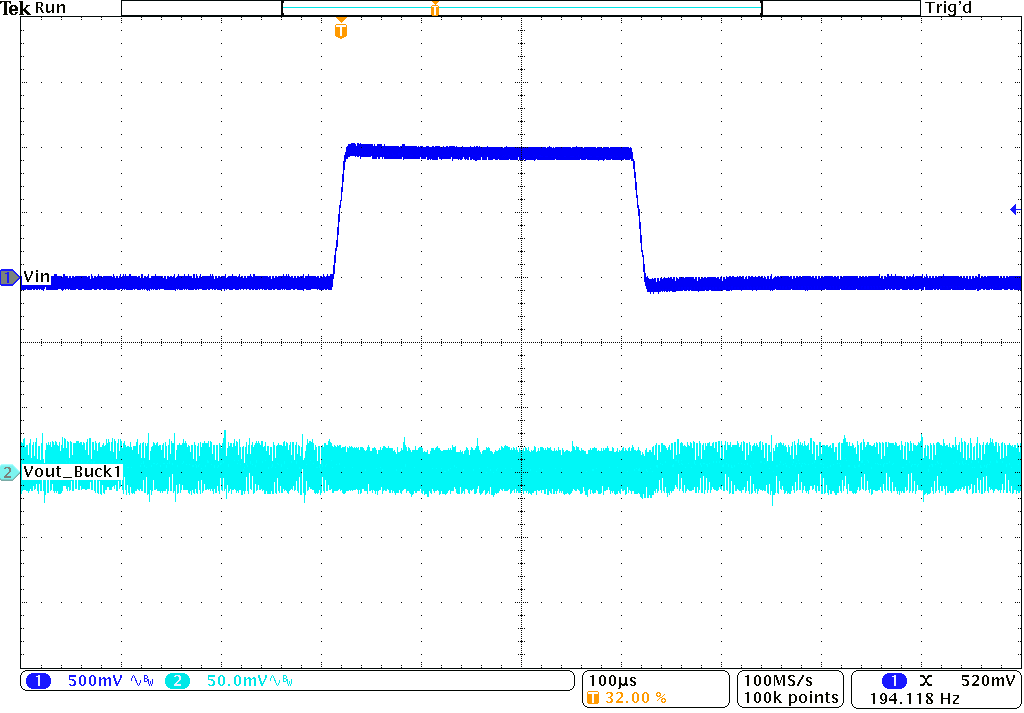

| IOUT = 0.3A | VIN = 4.5V 至 5.5V 至 4.5V | |

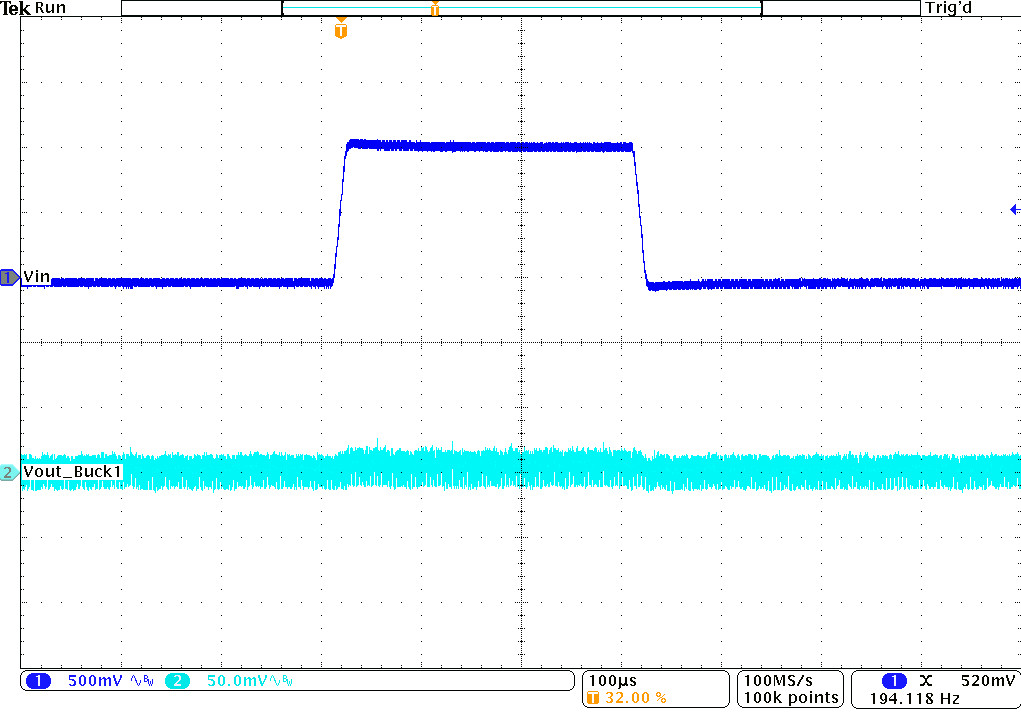

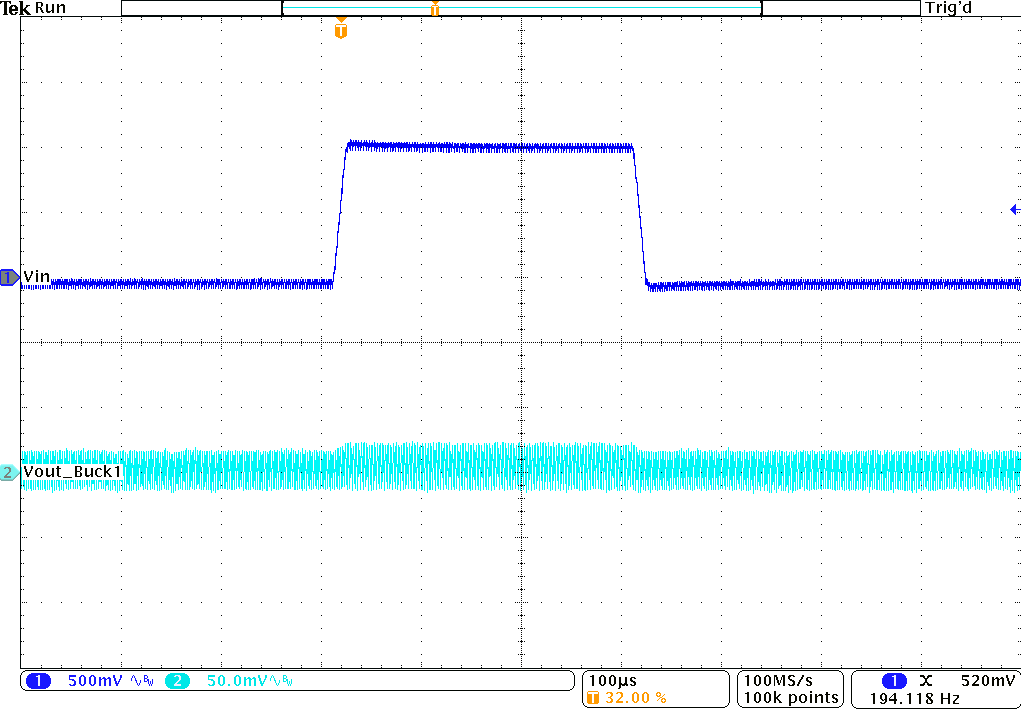

| VOUT = 1.8 V | PFM | TA = 25°C |
| IOUT = 0.3A | VIN = 4.5V 至 5.5V 至 4.5V | |

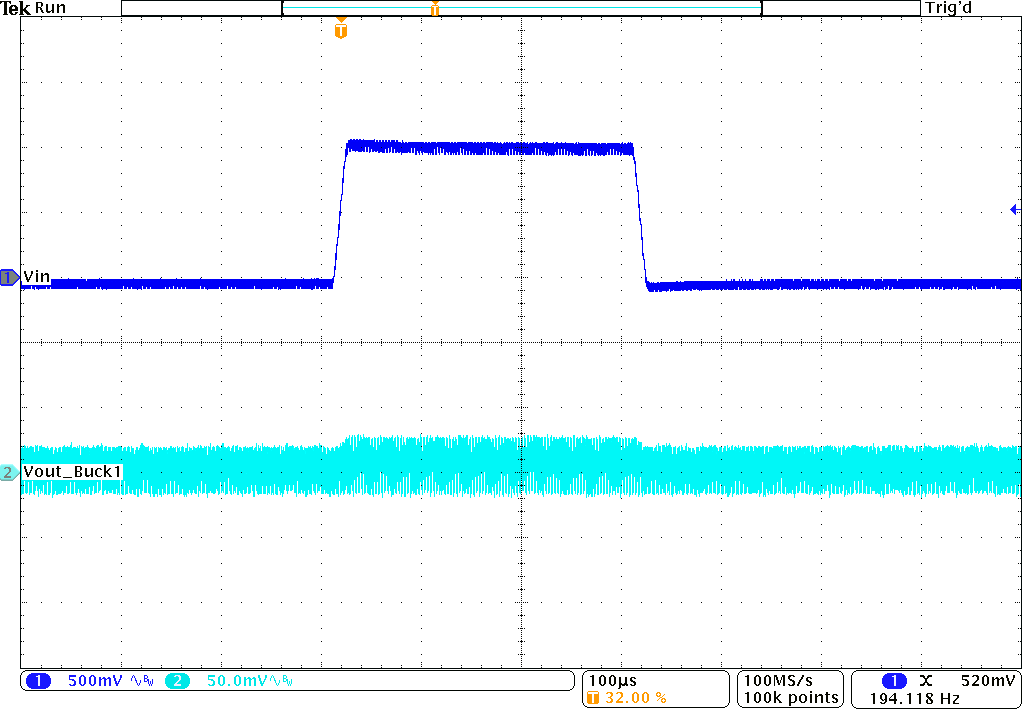

| VOUT = 1.2 V | PFM | TA = 25°C |
| IOUT = 0.3A | VIN = 4.5V 至 5.5V 至 4.5V | |
| VOUT = 1.0 V | PFM | TA = 25°C |
| IOUT = 0.3A | VIN = 4.5V 至 5.5V 至 4.5V | |
| VOUT = 0.6 V | PFM | TA = 25°C |
| IOUT = 0.3A | VIN = 4.5V 至 5.5V 至 4.5V | |

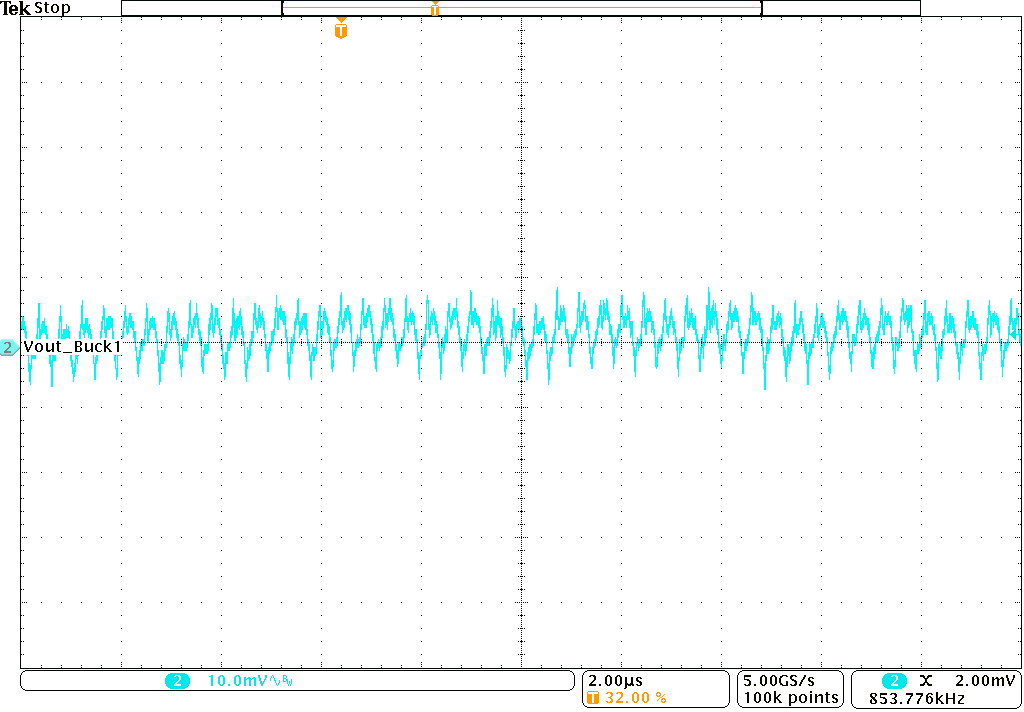

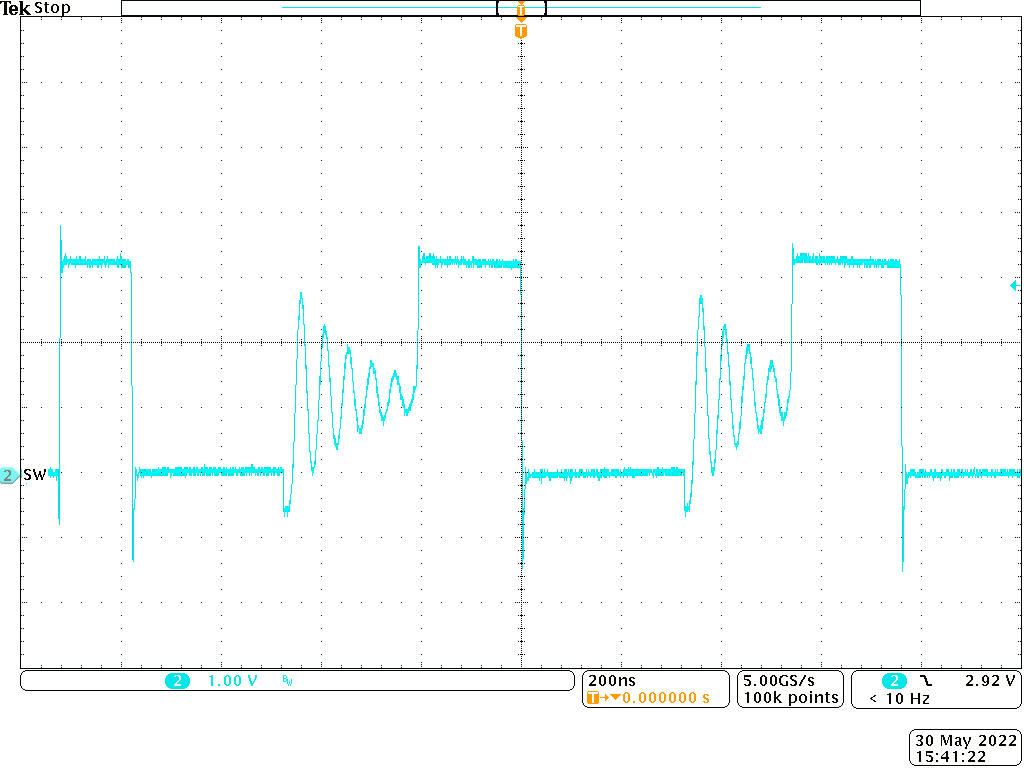

| VOUT = 3.3 V | PFM | TA = 25°C |
| IOUT = 0.3A | VIN = 5.0V | BW = 20MHz |
| VOUT = 1.8 V | PWM | TA = 25°C |
| IOUT = 3A | VIN = 5.0V | BW = 20MHz |

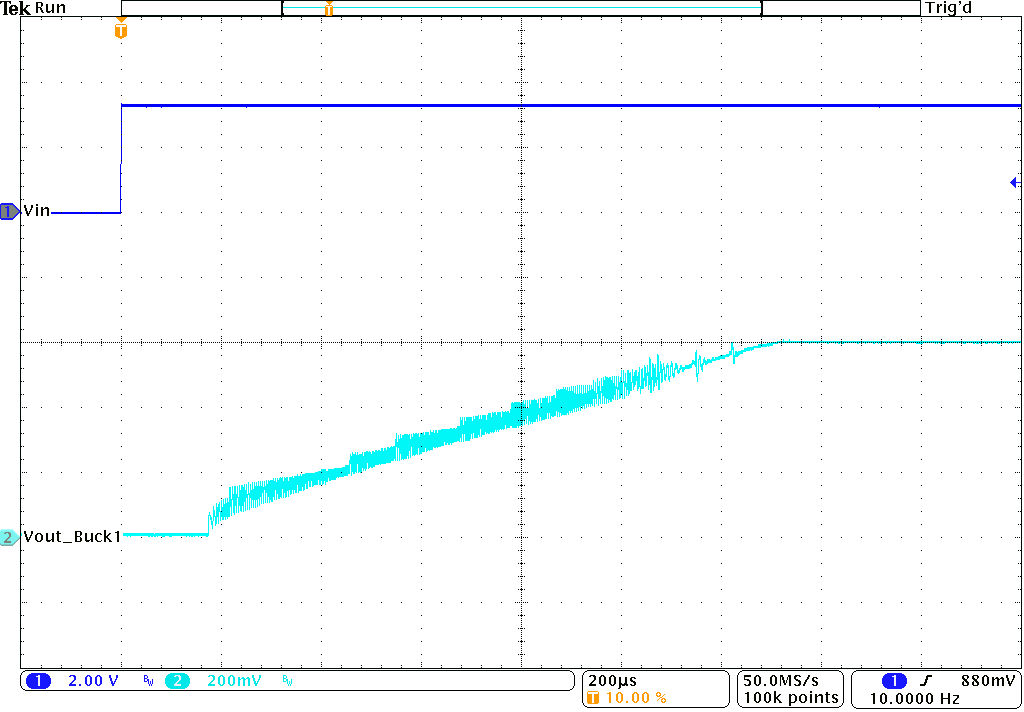

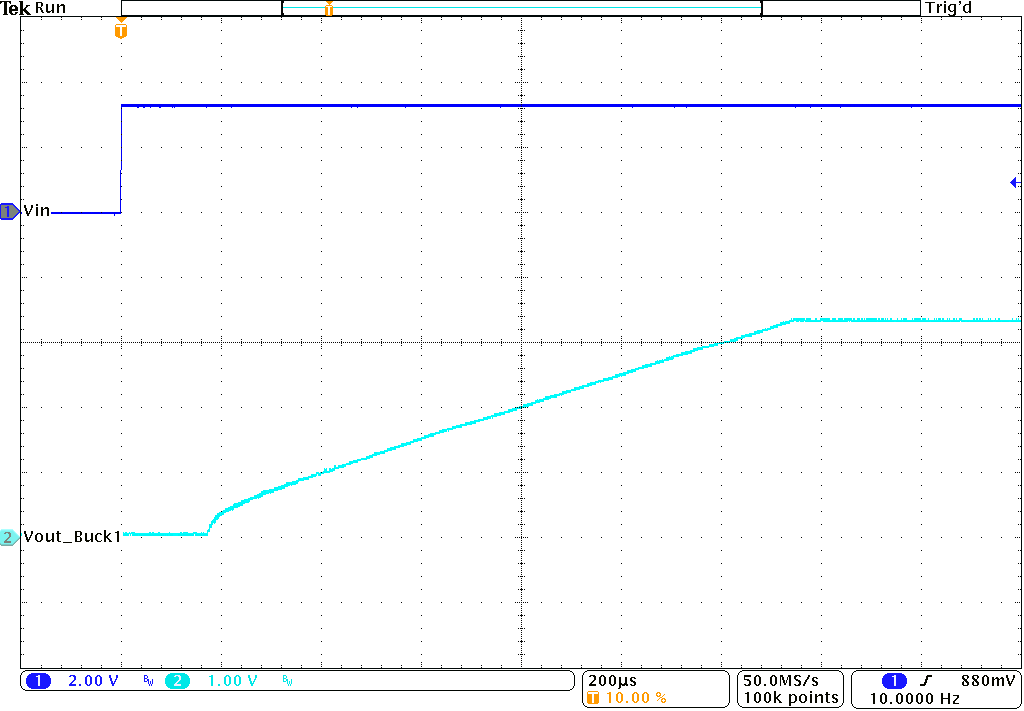

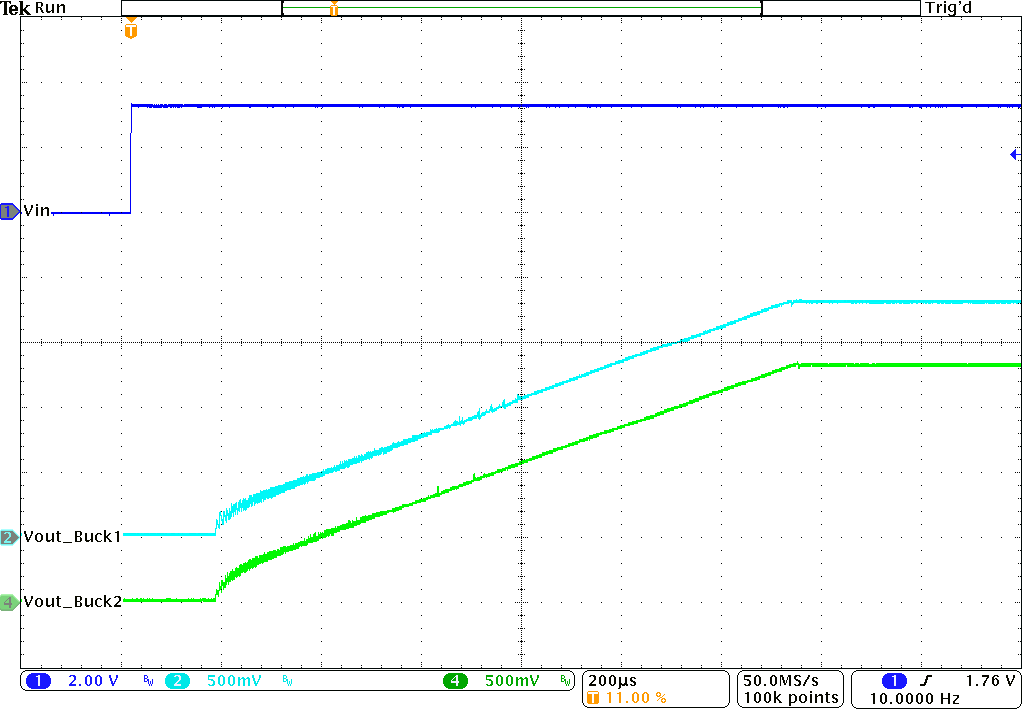

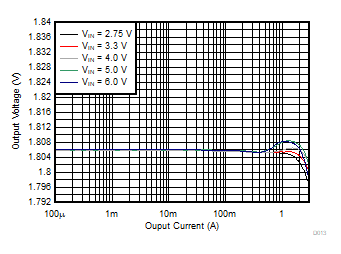

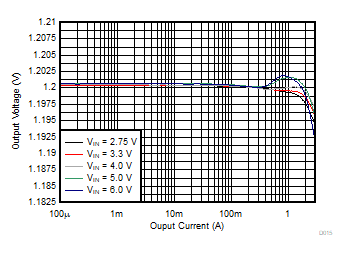

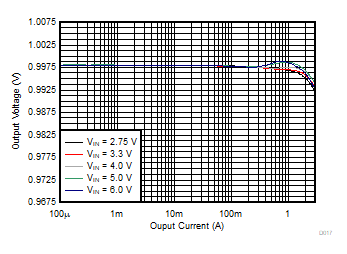

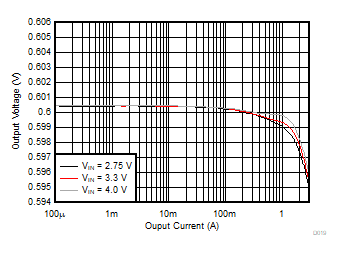

| VOUT = 3.3 V | PWM | TA = 25°C |
| IOUT = 3A | VIN = 5.0V | |
| VOUT1/2 = 1.2V | PWM | TA = 25°C |
| IOUT1 = 1A | IOUT2 = 3A | VIN = 5.0V |
| VOUT = 0.6 V | PWM | TA = 25°C | |||
| IOUT1 = 3A | VIN = 5.0V | ||||
| VOUT = 3.3 V | PWM | TA = 25°C |
| VOUT = 1.8 V | PWM | TA = 25°C |
| VOUT = 1.2 V | PWM | TA = 25°C |
| VOUT = 1.0 V | PWM | TA = 25°C |
| VOUT = 0.6 V | PWM | TA = 25°C |
| VOUT = 3.3 V | PWM | TA = 25°C |
| VOUT = 1.8 V | PWM | TA = 25°C |
| VOUT = 1.2 V | PWM | TA = 25°C |
| VOUT = 1.0 V | PWM | TA = 25°C |
| VOUT = 0.6 V | PWM | TA = 25°C |

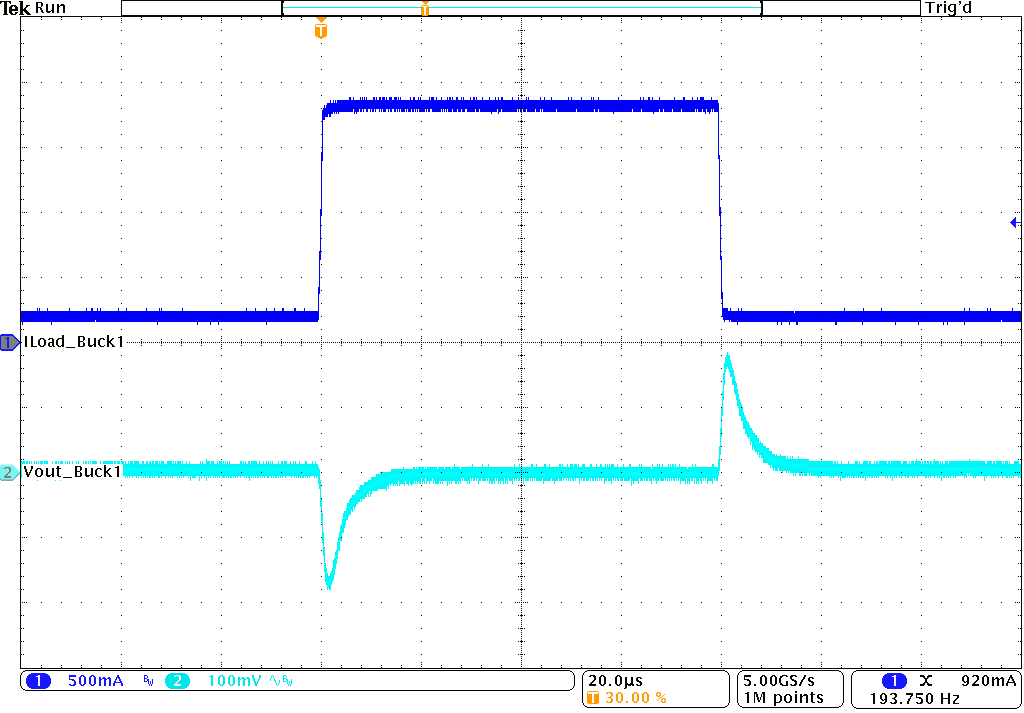

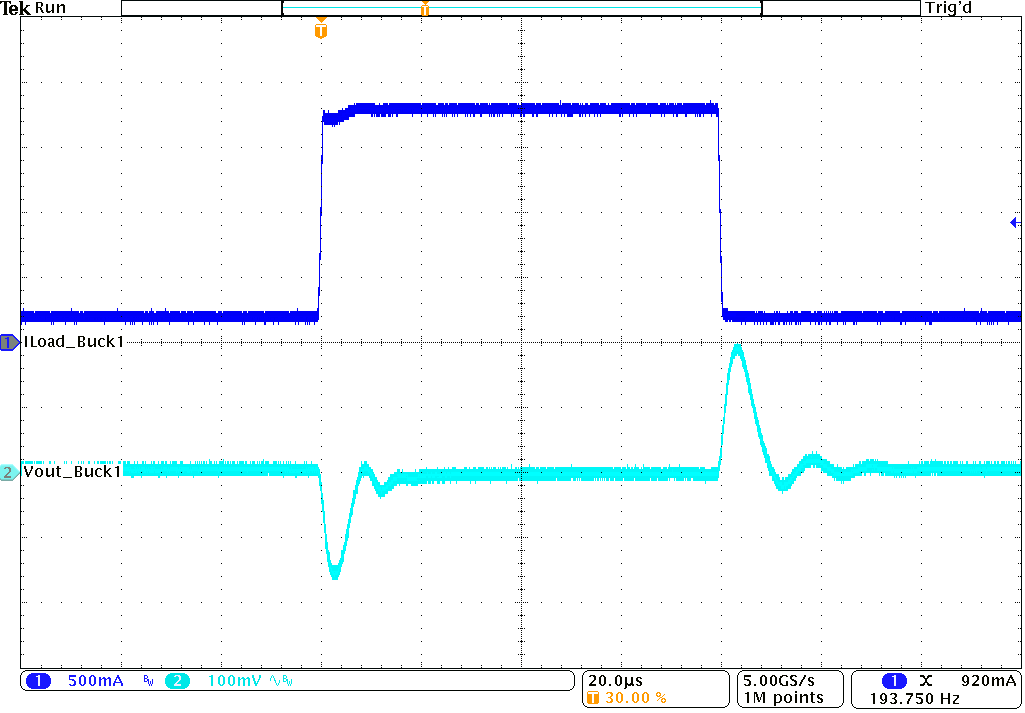

| VOUT = 3.3 V | PWM | TA = 25°C |
| VIN = 5.0V | IOUT = 0.2A 至 1.8A 至 0.2A | |
| VOUT = 1.8 V | PWM | TA = 25°C |
| VIN = 5.0V | IOUT = 0.2A 至 1.8A 至 0.2A | |
| VOUT = 1.2 V | PWM | TA = 25°C |
| VIN = 5.0V | IOUT = 0.2A 至 1.8A 至 0.2A | |
| VOUT = 1.0 V | PWM | TA = 25°C |
| VIN = 5.0V | IOUT = 0.2A 至 1.8A 至 0.2A | |
| VOUT = 0.6 V | PWM | TA = 25°C |
| VIN = 3.3V | IOUT = 0.2A 至 1.8A 至 0.2A | |

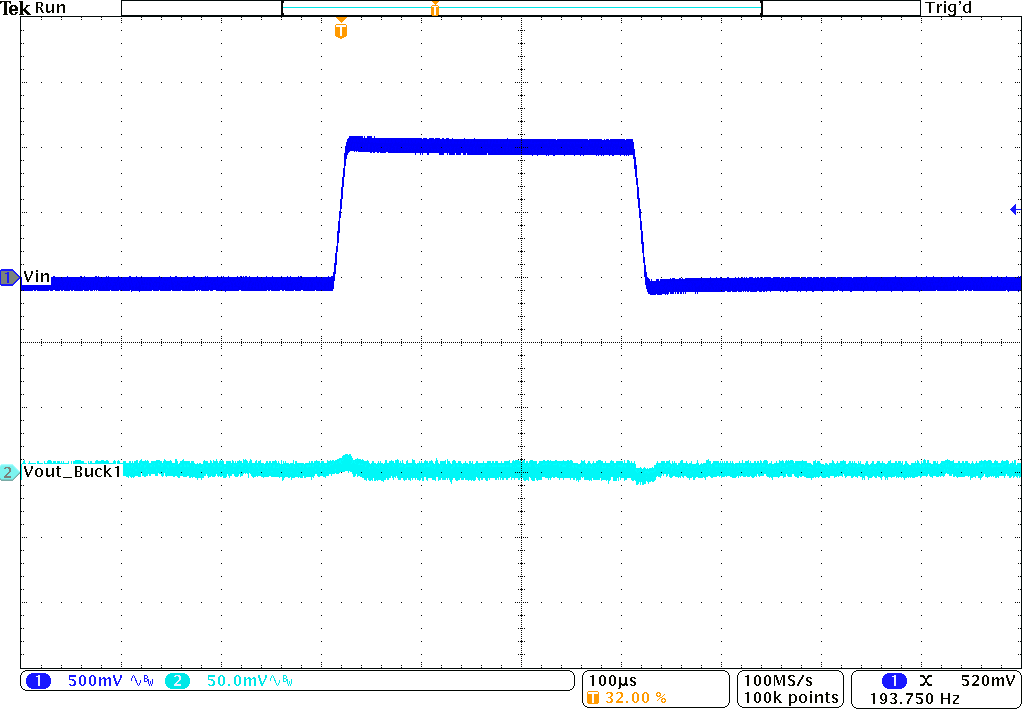

| VOUT = 3.3 V | PWM | TA = 25°C |

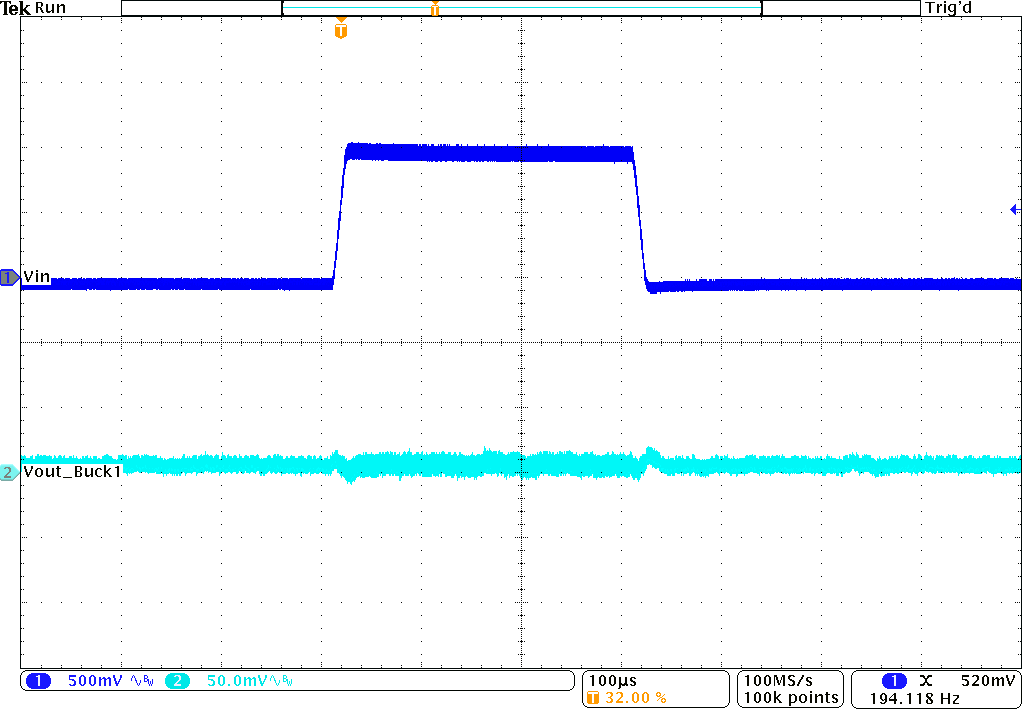

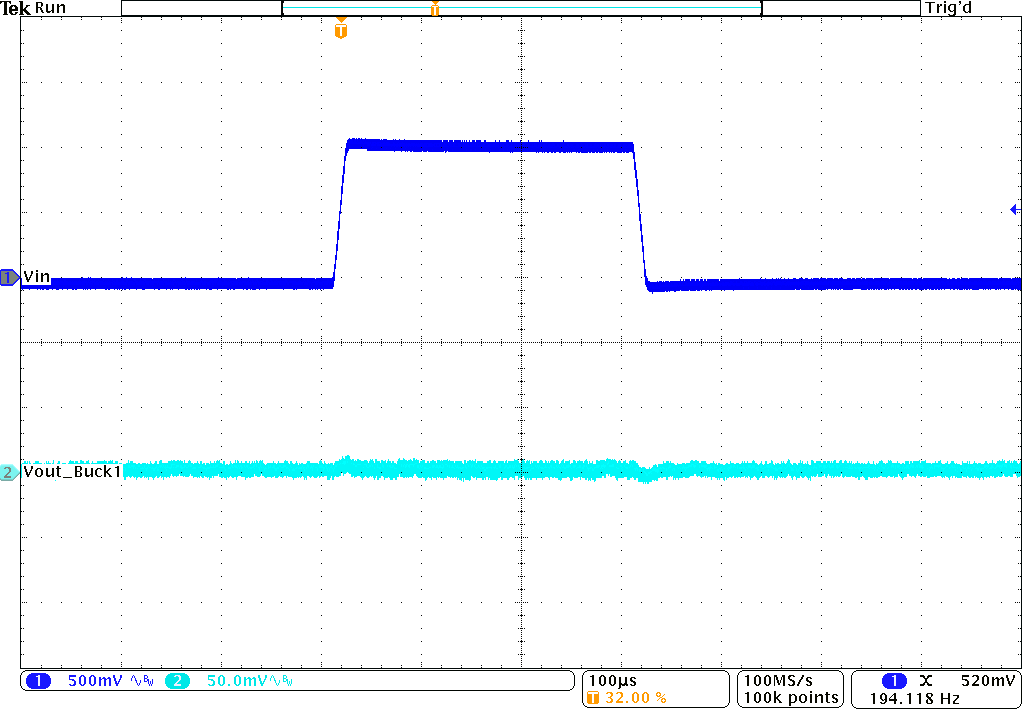

| IOUT = 3A | VIN = 4.5V 至 5.5V 至 4.5V | |
| VOUT = 1.8 V | PWM | TA = 25°C |
| IOUT = 3A | VIN = 4.5V 至 5.5V 至 4.5V | |
| VOUT = 1.2 V | PWM | TA = 25°C |
| IOUT = 3A | VIN = 4.5V 至 5.5V 至 4.5V | |
| VOUT = 1.0 V | PWM | TA = 25°C |
| IOUT = 3A | VIN = 4.5V 至 5.5V 至 4.5V | |
| VOUT = 0.6 V | PWM | TA = 25°C |
| IOUT = 3A | VIN = 4.5V 至 5.5V 至 4.5V | |

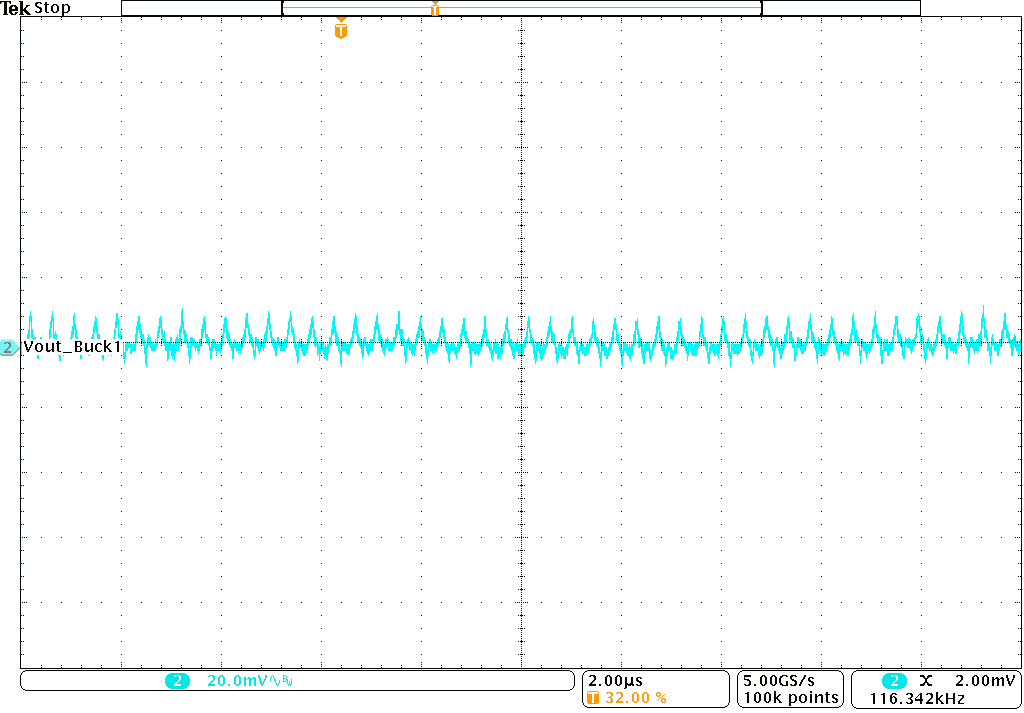

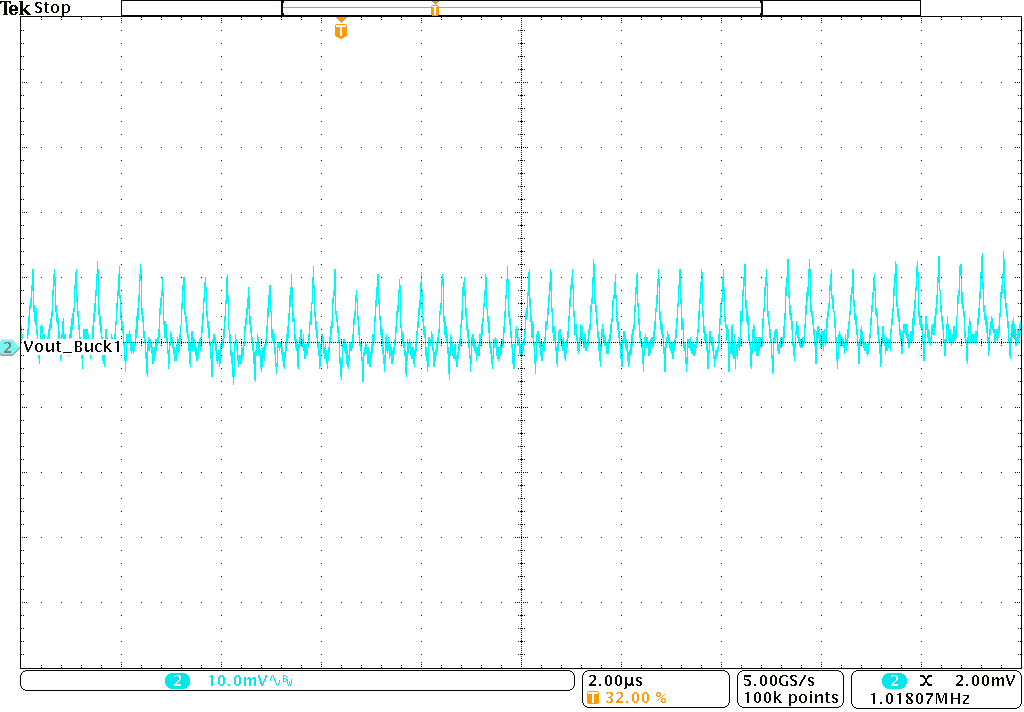

| VOUT = 3.3 V | PWM | TA = 25°C |
| IOUT = 3A | VIN = 5.0V | BW = 20MHz |
| VOUT = 1.2 V | TA = 25°C |
| IOUT = 0.4A | VIN = 3.3V |
| VOUT1/2 = 1.8V | PWM | TA = 25°C |
| IOUT1 = 2A | IOUT2 = 2A | VIN = 5.0V |
| VOUT = 1.0 V | PWM | TA = 25°C |
| IOUT1 = 3A | VIN = 5.0V | |
