SLVS676D JUNE 2006 – July 2015 TPS62420 , TPS62421
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Device Comparison Table
- 6 Pin Configuration and Functions
- 7 Specifications
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
- DRC|10
散熱焊盤機械數據 (封裝 | 引腳)
- DRC|10
訂購信息
7 Specifications
7.1 Absolute Maximum Ratings
Over operating free-air temperature range (unless otherwise noted)(1)| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| Input voltage on VIN(2) | –0.3 | 7 | V | ||
| Voltage on EN, MODE/DATA, DEF_1 | –0.3 | VIN +0.3, ≤7 | V | ||
| Maximum current into MODE/DATA | 500 | μA | |||
| Voltage on SW1, SW2 | –0.3 | 7 | V | ||
| Voltage on ADJ2, FB1 | –0.3 | VIN +0.3, ≤7 | V | ||
| TJ(max) | Maximum junction temperature | 150 | °C | ||
| TA | Operating ambient temperature | –40 | 85 | °C | |
| Tstg | Storage temperature | –65 | 150 | °C | |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute–maximum–rated conditions for extended periods may affect device reliability.
(2) All voltage values are with respect to network ground terminal.
7.2 ESD Ratings
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | ±2000 | V |
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±1000 | |||
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
Over operating free-air temperature range (unless otherwise noted)| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| VIN | Supply voltage | 2.5 | 6 | V | |
| Output voltage range for adjustable voltage | 0.6 | VIN | V | ||
| TA | Operating ambient temperature | –40 | 85 | °C | |
| TJ | Operating junction temperature | –40 | 125 | °C | |
7.4 Thermal Information
| THERMAL METRIC(1) | TPS62420, TPS62421 | UNIT | |
|---|---|---|---|
| DRC (VSON) | |||
| 10 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 45.9 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 64.3 | °C/W |
| RθJB | Junction-to-board thermal resistance | 20.4 | °C/W |
| ψJT | Junction-to-top characterization parameter | 1.3 | °C/W |
| ψJB | Junction-to-board characterization parameter | 20.6 | °C/W |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | 2.8 | °C/W |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.
7.5 Electrical Characteristics
VIN = 3.6 V, VOUT = 1.8 V, EN = VIN, MODE = GND, L = 2.2 μH, COUT = 20 μF, TA = –40°C to 85°C typical values are at TA = 25°C (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| SUPPLY CURRENT | |||||||
| VIN | Input voltage range | 2.5 | 6 | V | |||
| IQ | Operating quiescent current | One converter, IOUT = 0 mA. PFM mode enabled (Mode = 0) device not switching, EN1 = 1 or EN2 = 1 |
19 | 29 | μA | ||
| Two converter, IOUT = 0 mA. PFM mode enabled (Mode = 0) device not switching, EN1 = 1 and EN2 = 1 |
32 | 48 | μA | ||||
| IOUT = 0 mA, MODE/DATA = GND, for one converter, VOUT 1.575 V(1) | 23 | μA | |||||
| IOUT = 0 mA, MODE/DATA = VIN, for one converter, VOUT 1.575 V(1) | 3.6 | mA | |||||
| ISD | Shutdown current | EN1, EN2 = GND, VIN = 3.6 V(2) | 1.2 | 3 | μA | ||
| EN1, EN2 = GND, VIN ramped from 0 V to 3.6 V(3) | 0.1 | 1 | |||||
| VUVLO | Undervoltage lockout threshold | Falling | 1.5 | 2.35 | V | ||
| Rising | 2.4 | ||||||
| ENABLE EN1, EN2 | |||||||
| VIH | High-level input voltage, EN1, EN2 | 1.2 | VIN | V | |||
| VIL | Low-level input voltage, EN1, EN2 | 0 | 0.4 | V | |||
| IIN | Input bias current, EN1, EN2 | EN1, EN2 = GND or VIN | 0.05 | 1.0 | μA | ||
| DEF_1 INPUT | |||||||
| VDEF_1H | DEF_1 high level input voltage | DEF_1 pin is a digital input at fixed output voltage options (TPS62421) | 0.9 | VIN | V | ||
| VDEF_1L | DEF_1 low level input voltage | 0 | 0.4 | ||||
| IIN | Input biasd current DEF_1 | DEF_1 = GND or VIN | 0.01 | 1 | μA | ||
| MODE/DATA | |||||||
| VIH | High-level input voltage, MODE/DATA | 1.2 | VIN | V | |||
| VIL | Low-level input voltage, MODE/DATA | 0 | 0.4 | V | |||
| IIN | Input bias current, MODE/DATA | MODE/DATA = GND or VIN | 0.01 | 1 | μA | ||
| VOH | Acknowledge output voltage high | Open-drain, through external pullup resistor | VIN | V | |||
| VOL | Acknowledge output voltage low | Open-drain, sink current 500 μA | 0 | 0.4 | V | ||
| INTERFACE TIMING | |||||||
| tStart | Start time | 2 | μs | ||||
| tH_LB | High time low bit, logic 0 detection | Signal level on MODE/DATA pin is > 1.2 V | 2 | 200 | μs | ||
| tL_LB | Low time low bit, logic 0 detection | Signal level on MODE/DATA pin < 0.4 V | 2x tH_LB | 400 | μs | ||
| tL_HB | Low time high bit, logic 1 detection | Signal level on MODE/DATA pin < 0.4 V | 2 | 200 | μs | ||
| tH_LB | High time high bit, logic 1 detection | Signal level on MODE/DATA pin is > 1.2 V | 2x tL_HS | 400 | μs | ||
| TEOS | End of Stream | TEOS | 2 | μs | |||
| tACKN | Duration of acknowledge condition (MODE/DATE line pulled low by the device) | VIN 2.5 V to 6 V | 400 | 520 | μs | ||
| tvalACK | Acknowledge valid time | 2 | μs | ||||
| ttimeout | Time-out for entering power-save mode | MODE/DATA pin changes from high to low | 520 | μs | |||
| POWER SWITCH | |||||||
| RDS(ON) | P-channel MOSFET on-resistance, converter 1, 2 | VIN = VGS = 3.6 V | 280 | 620 | mΩ | ||
| ILK_PMOS | P-channel leakage current | VDS = 6 V | 1 | μA | |||
| RDS(ON) | N-channel MOSFET on-resistance converter 1, 2 | VIN = VGS = 3.6 V | 200 | 450 | mΩ | ||
| ILK_SW1/SW2 | Leakage current into SW1/SW2 pin | Includes N-Chanel leakage current, VIN = open, VSW = 6 V, EN = GND(4) |
6 | 7.5 | μA | ||
| ILIMF | Forward current limit PMOS and NMOS | OUT1 600 mA | 2.5 V ≤ VIN ≤ 6 V | 0.85 | 1.0 | 1.15 | A |
| OUT2 1000 mA | 1.19 | 1.4 | 1.61 | ||||
| TSD | Thermal shutdown | Increasing junction temperature | 150 | °C | |||
| Thermal shutdown hysteresis | Decreasing junction temperature | 20 | °C | ||||
| OSCILLATOR | |||||||
| fSW | Oscillator frequency | 2.5 V ≤ VIN ≤ 6 V | 2.0 | 2.25 | 2.5 | MHz | |
| OUTPUT | |||||||
| VOUT | Adjustable output voltage range | 0.6 | VIN | V | |||
| Vref | Reference voltage | 600 | mV | ||||
| VOUT (PFM) | DC output voltage accuracy PFM mode, adjustable and fixed output voltage(6) | Voltage positioning active, MODE/DATA = GND, device operating in PFM mode, VIN = 2.5 V to 5 V (5)(7) |
–1.5% | 1.01 × VOUT | 2.5% | ||
| VOUT | MODE/DATA = GND; device operating in PWM mode VIN = 2.5 V to 6 V(7) | –1% | 0% | 1% | |||
| VIN = 2.5 V to 6 V, Mode/Data = VIN , Fixed PWM operation, 0 mA < IOUT < IOUTMAX(8) | –1% | 0% | 1% | ||||
| DC output voltage load regulation | PWM operation mode | 0.5 | %/A | ||||
| tStart up | Start-up time | Activation time to start switching(9) | 170 | μs | |||
| tRamp | VOUT Ramp UP time | Time to ramp from 5% to 95% of VOUT | 750 | μs | |||
(1) Device is switching with no load on the output, L = 3.3 μH, value includes losses of the coil
(2) These values are valid after the device has been already enabled one time (EN1 or EN2 = High) and supply voltage VIN has not powered down.
(3) After the first enable, these values are valid when the device is disabled (EN1 and EN2 = Low) and supply voltage VIN is powered up. The values remain valid until the device has been enabled first time (EN1 or EN2 = high).
(4) At pins SW1 and SW2 an internal resistor of 1 MΩ is connected to GND
(5) Configuration L typ 2.2 μH, COUT typical 20 μF, see parameter measurement information, the output voltage ripple depends on the effective capacitance of the output capacitor, larger output capacitors lead to tighter output voltage tolerance
(6) Output voltage specification does not include tolerance of external voltage programming resistors
(7) In power-save mode, PWM operation is typically entered at IPSM = VIN/32 Ω.
(8) For VOUT > 2.2 V, VIN min = VOUT +0.3 V
(9) This time is valid if one converter turns from shutdown mode (EN2 = 0) to active mode (EN2 =1) and the other converter is already enabled (that is, EN1 = 1). In case both converters are turned from shutdown mode (EN1 and EN2 = Low) to active mode (EN1 and/or EN2 = 1) a value of typical 80 μs for ramp up of internal circuits needs to be added. After tStart the converter starts switching and ramps VOUT.
7.6 Dissipation Ratings
| PACKAGE | RθJA | POWER RATING FOR TA ≤ 25°C | DERATING FACTOR ABOVE TA = 25°C |
|---|---|---|---|
| DRC | 49°C/W | 2050 mW | 21 mW/°C |
7.7 Typical Characteristics

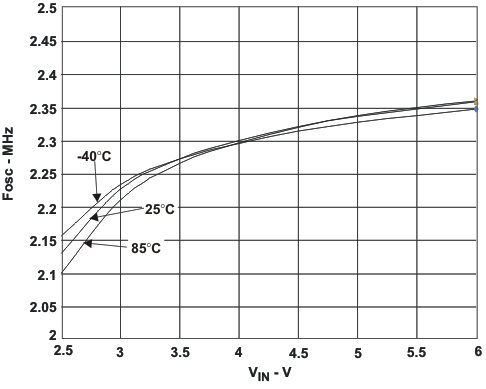

Figure 1. FOSC vs VIN

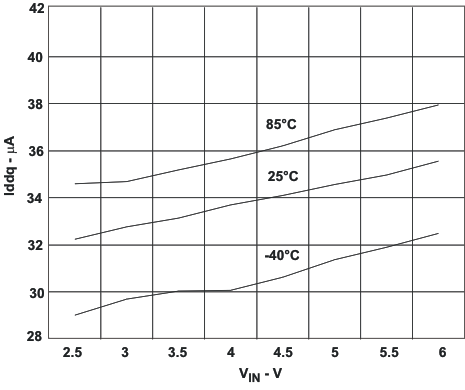

Figure 3. Iq For Both Converters, Not Switching

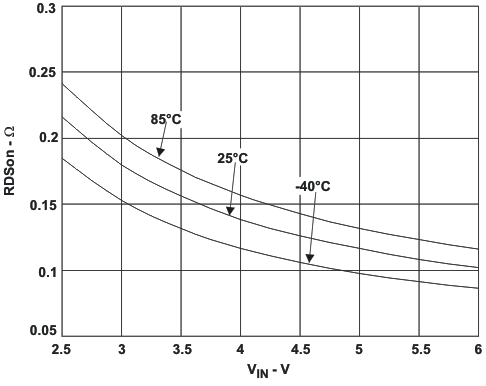

Figure 5. RDSON NMOS vs VIN

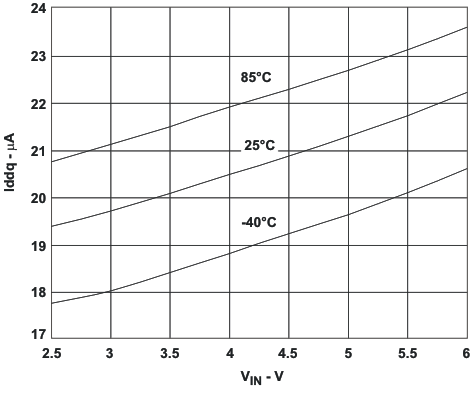

Figure 2. Iq For One Converter, Not Switching

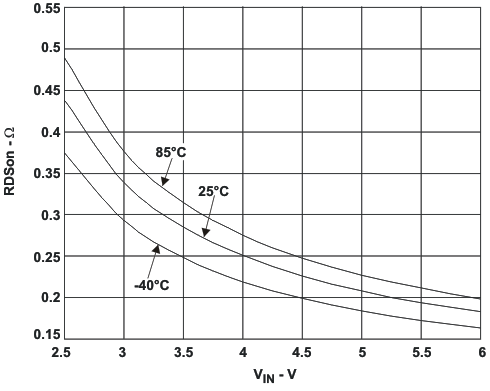

Figure 4. RDSON PMOS vs VIN
