6.6 Typical Characteristics
Table 1. Table Of Graphs
| Figure 1, L = TOKO #A915_Y-100M, unless otherwise noted | FIGURE | ||
|---|---|---|---|
| η | Efficiency | vs Load current at OUT = 15 V | Figure 1 |
| η | Efficiency | vs Load current at OUT = 10 V | Figure 2 |
| VFB | FB voltage | vs Free-air temperature | Figure 3 |
| VFB | FB voltage | vs Input voltage | Figure 4 |
| ILIM | Switch current limit | vs Free-air temperature | Figure 5 |
Figure 1. Efficiency vs Load

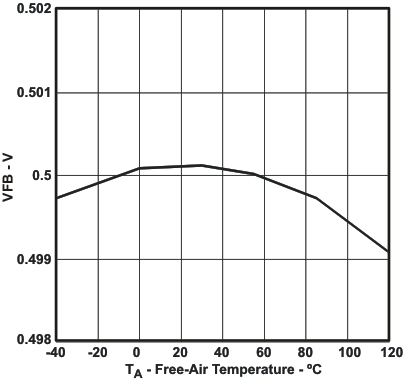

Figure 3. FB Voltage vs Free-Air Temperature

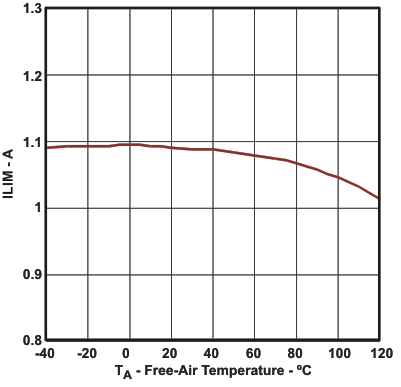

Figure 5. Switch Current Limit vs Free-Air Temperature
Figure 2. Efficiency vs Load

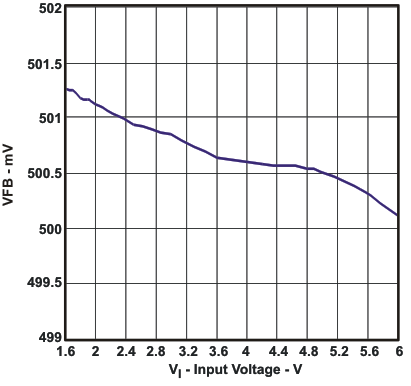

Figure 4. FB Voltage vs Input Voltage
