ZHCSDP8D May 2015 – August 2021 TPS61088
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Detailed Description
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
- RHL|20
散熱焊盤機械數據 (封裝 | 引腳)
- RHL|20
訂購信息
6.6 Typical Characteristics

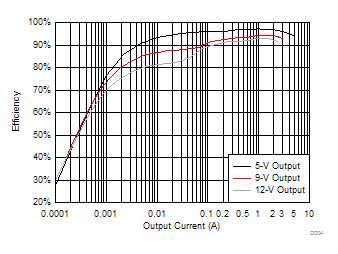

Figure 6-1 Efficiency vs Output Current, VOUT = 9 V, FPWM
Figure 6-3 Efficiency vs Output Current, VOUT = 9 V, PFM

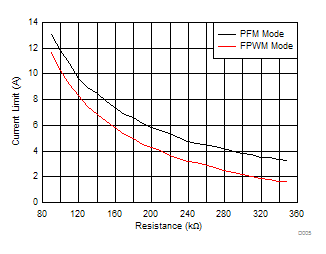

Figure 6-5 Current Limit vs Setting Resistance

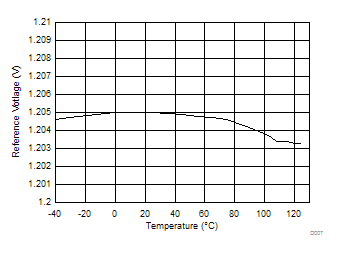

Figure 6-7 Reference Voltage vs Temperature

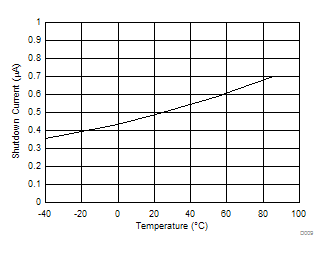

Figure 6-9 Shutdown Current vs Temperature

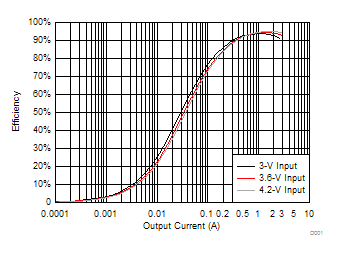

Figure 6-2 Efficiency vs Output Current, VIN = 3.6 V, FPWM

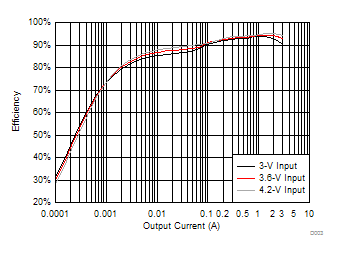

Figure 6-4 Efficiency vs Output Current, VIN = 3.6 V, PFM

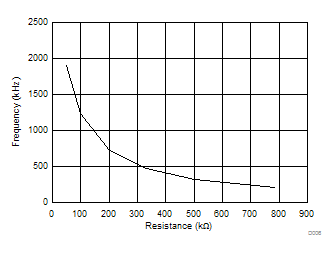

Figure 6-6 Switching Frequency vs Setting Resistance

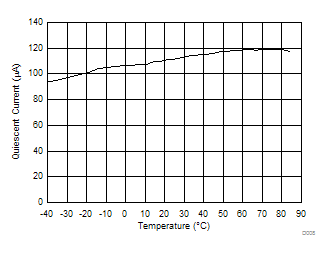

Figure 6-8 Quiescent Current vs Temperature
