9.2.3 Application Curves

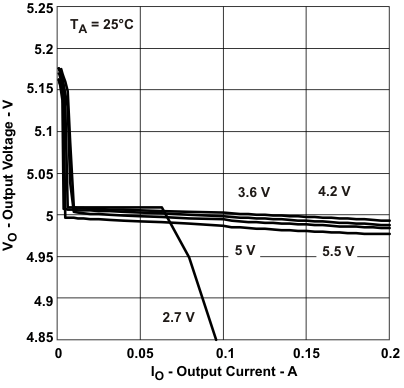

Figure 12. Output Voltage vs Output Current

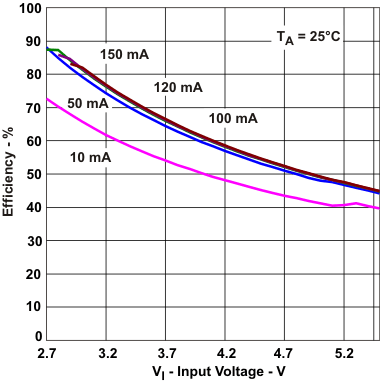

Figure 14. Efficiency vs Input Voltage
Figure 16. Load Transient Response

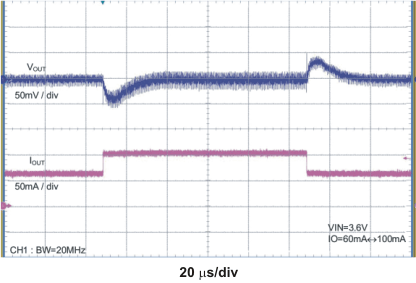

VIN = 3.6 V, Io = 60 mA to 100 mA
Figure 18. Load Transient
VCC = 3.6 V, Io = 0 mA
Figure 20. Output Ripple (Normal Mode)
VIN = 3.6 V, Io = 100 mA

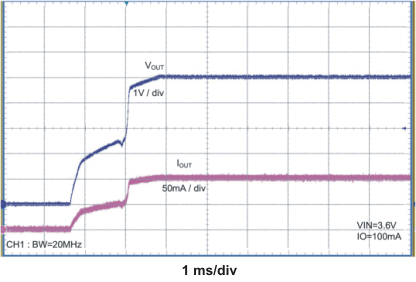

Figure 22. Power On
VIN = 3.6 V, Io = 100 mA

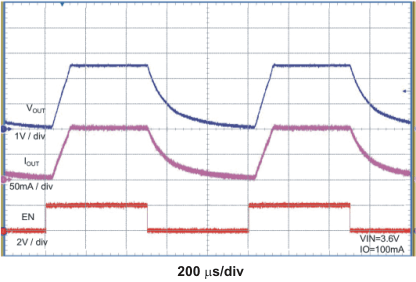

Figure 24. Enable / Disable
VIN = 3.6 V, Io = 100 mA

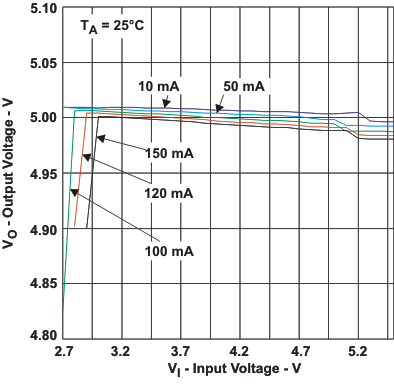

Figure 13. Output Voltage vs Input Voltage

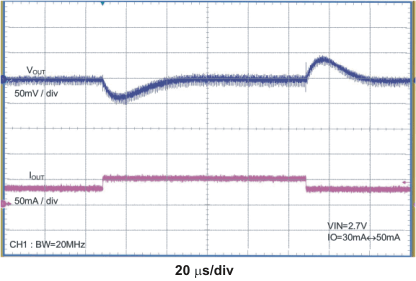

Figure 15. Load Transient Response
VIN = 2.7 V, Io = 30 mA to 50 mA

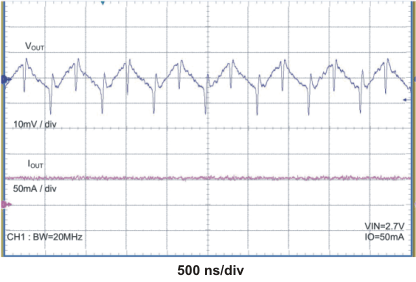

Figure 17. Output Ripple
VCC = 2.7 V, Io = 0 mA
Figure 19. Output Ripple Voltage (Normal Mode)
VIN = 2.7 V, Io = 50 mA

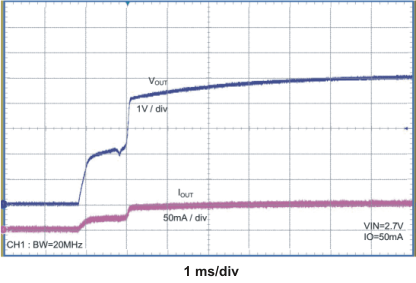

Figure 21. Power On
VIN = 2.7 V, Io = 50 mA

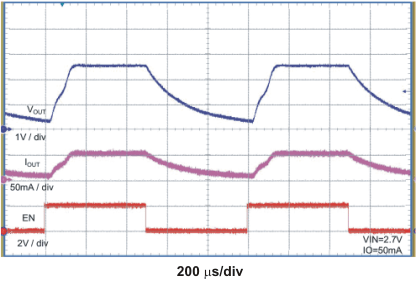

Figure 23. Enable / Disable
VIN = 2.7 V, Io = 50 mA

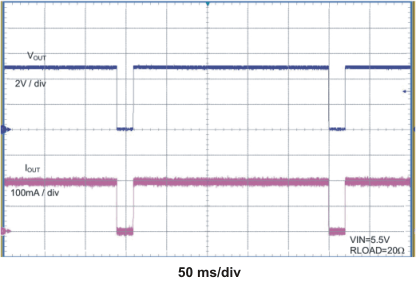

Figure 25. Thermal Shutdown Operation
VIN = 5.5 V, RLOAD= 20 Ω
