8.2.3 Application Curves
| V(VIN) = 5 V | f(SW) = 1 MHz | TA = 25°C |

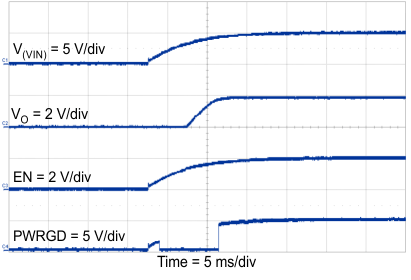

Figure 8-6 Power-Up VO, V(VIN)

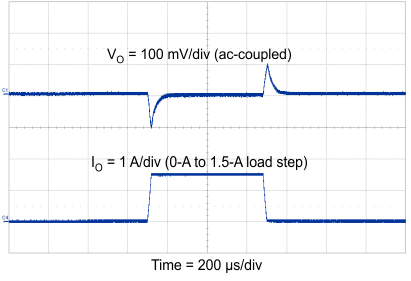

Figure 8-8 Transient Response, 1.5-A Step

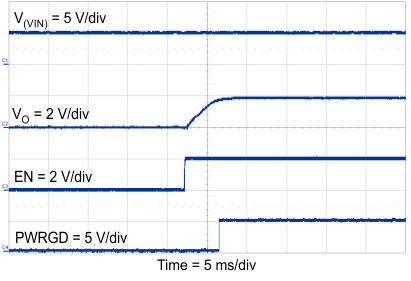

Figure 8-10 Power-Up VO, V(VIN)

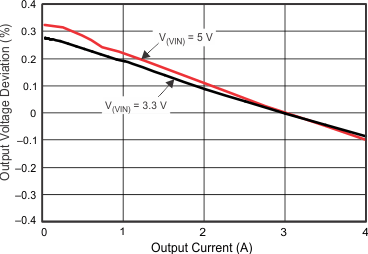

Figure 8-14 Load
Regulation vs Load Current
| VO = 1.8 V | f(SW) = 2 MHz |
| V(VIN) = 5 V | f(SW) = 1 MHz | TA = 25°C |
Figure 8-7 Power-Down VO, V(VIN)
Figure 8-9 Power-Up VO, V(VIN)

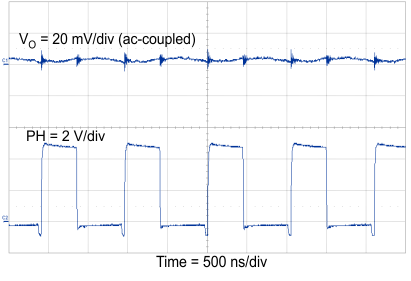

Figure 8-11 Output Ripple, 4 A
| VO = 1.2 V | f(SW) = 2 MHz | V(VIN) = 5 V |
| IO = 4 A |
| VO = 1.8 V | f(SW) = 2 MHz | IO = 4 A |
