6.6 Typical Characteristics
TJ=-40oC to 125oC, VVIN=12V(unless otherwise noted)

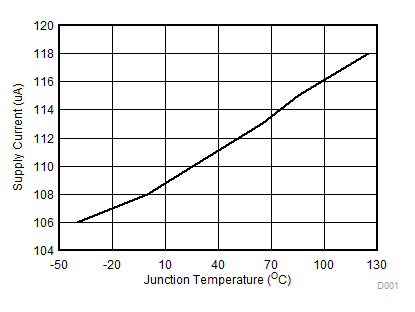

| VEN = 3.3 V |
1.

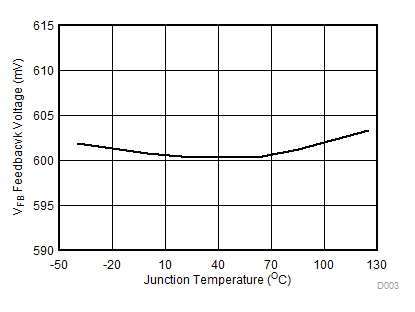

Figure 3. Feedback Voltage vs Junction Temperature
1.

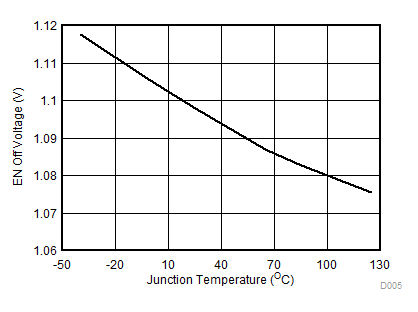

Figure 5. Enable Off Voltage vs Junction Temperature
1.

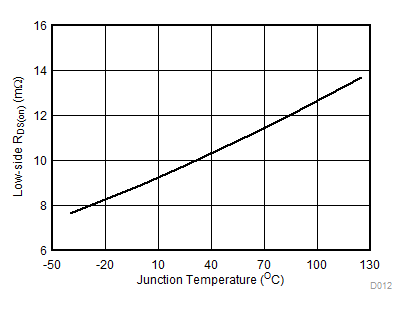

Figure 7. Low-Side RDS(on) vs Junction Temperature
1.

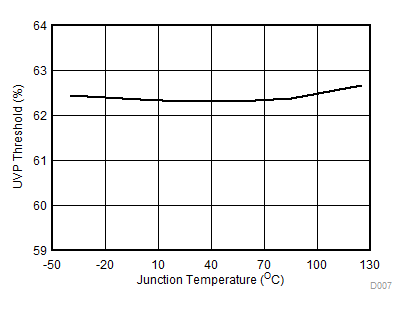

Figure 9. UVP Threshold vs Junction Temperature
1.

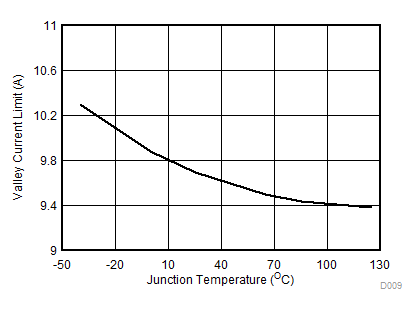

Figure 11. Valley Current Limit vs Junction Temperature
1.

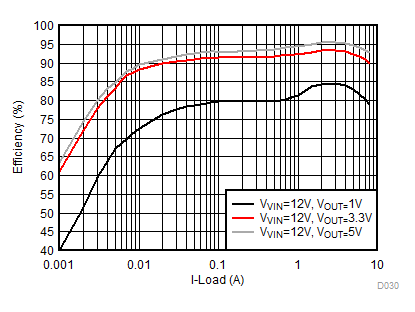

Figure 13. Efficiency, Eco-mode, FSW = 600 kHz
1.

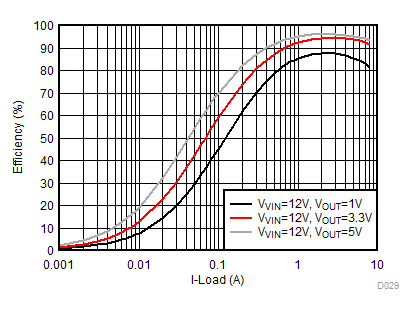

Figure 15. Efficiency, FCCM, FSW = 600 kHz
1.

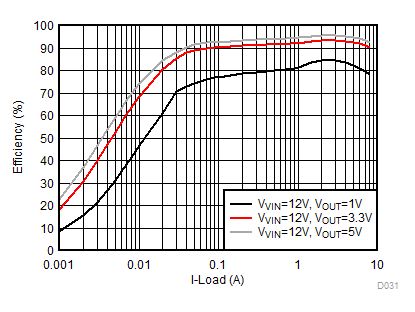

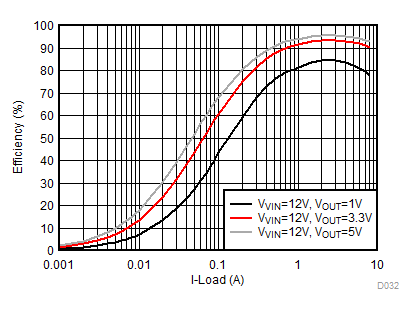

Figure 17. Efficiency, OOA-mode, FSW = 1 MHz
1.

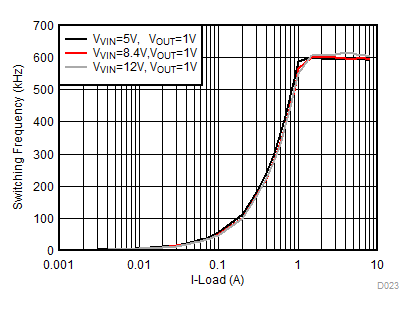

Figure 19. Load Regulation, Eco-mode, FSW = 600 kHz
1.

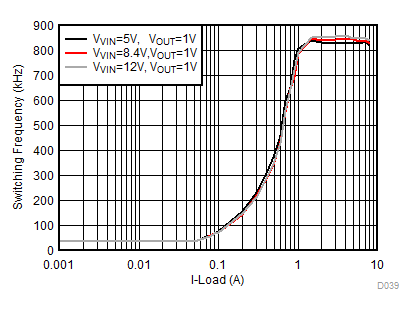

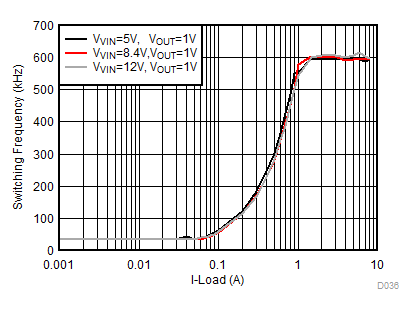

Figure 21. FSW Load Regulation, OOA-mode, FSW = 600 kHz
1.

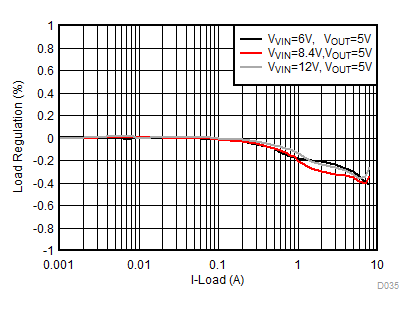

Figure 23. FSW Load Regulation, Eco-mode, FSW = 800 kHz
1.

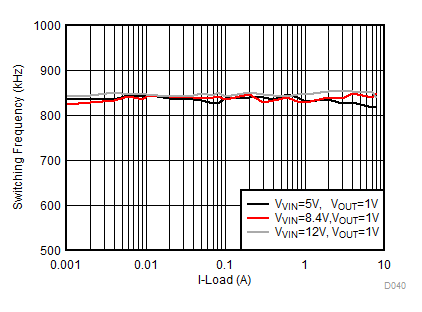

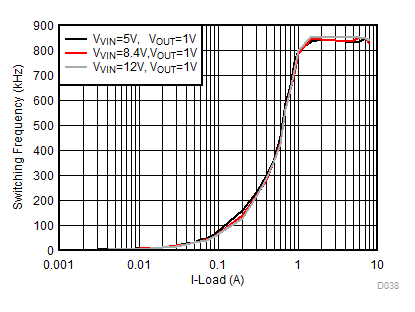

Figure 25. FSW Load Regulation, FCCM, FSW = 800 kHz
1.

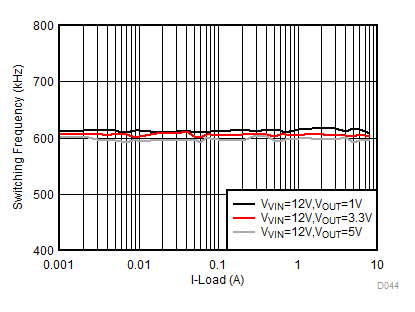

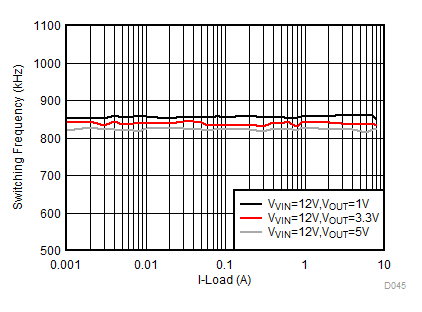

Figure 27. FSW Load Regulation, FCCM, FSW = 800 kHz

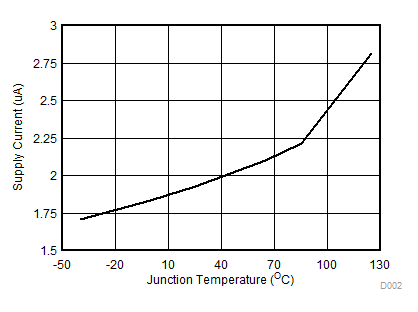

| VEN = 0 V |
1.

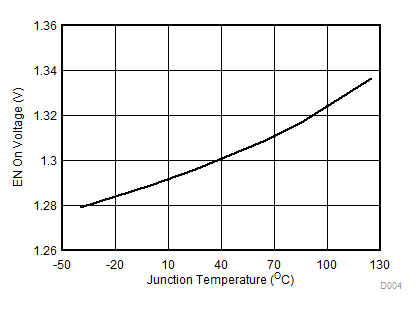

Figure 4. Enable On Voltage vs Junction Temperature
1.

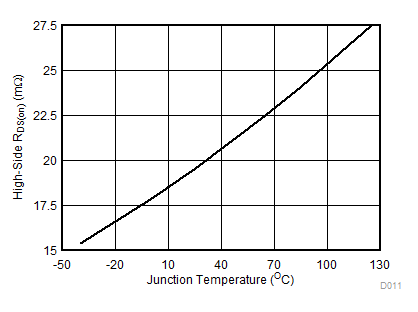

Figure 6. High-Side RDS(on) vs Junction Temperature
1.

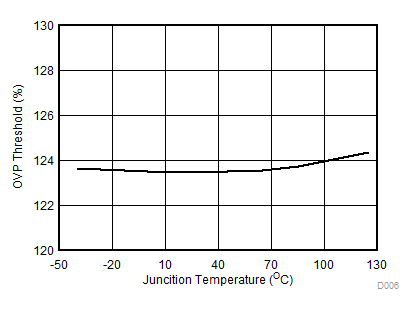

Figure 8. OVP Threshold vs Junction Temperature
1.

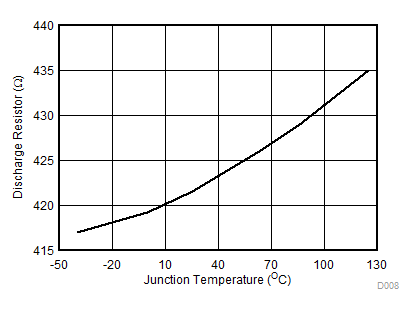

Figure 10. Discharge Resistor vs Junction Temperature
1.

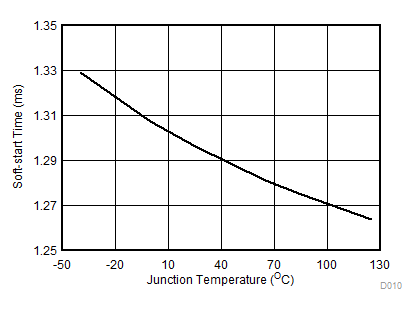

Figure 12. Soft-Start Time vs Junction Temperature
1.

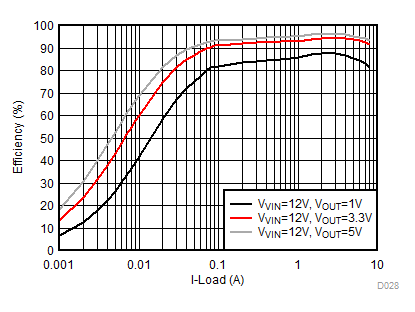

Figure 14. Efficiency, OOA-mode, FSW = 600 kHz
1.
Figure 16. Efficiency, Eco-mode, FSW = 1 MHz
1.
Figure 18. Efficiency, FCCM, FSW = 1 MHz
1.
Figure 20. FSW Load Regulation, Eco-mode, FSW = 600 kHz
1.
Figure 22. FSW Load Regulation, FCCM, FSW = 600 kHz
1.
Figure 24. FSW Load Regulation, OOA-mode, FSW = 800 kHz
1.
Figure 26. FSW Load Regulation, FCCM, FSW = 600 kHz
1.

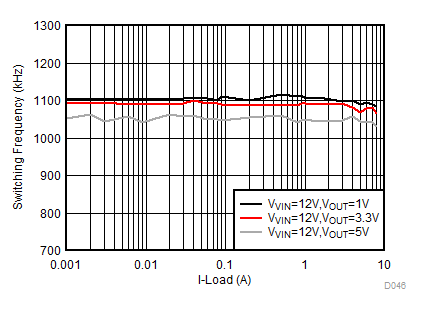

Figure 28. FSW Load Regulation, FCCM, FSW = 1 MHz
