6.6 Typical Characteristics
VIN = 12 V, TA = 25°C,
fSW = 400 kHz, unless otherwise
noted.
VIN = 12 V, TA = 25°C,
fSW = 400 kHz, unless otherwise
noted.

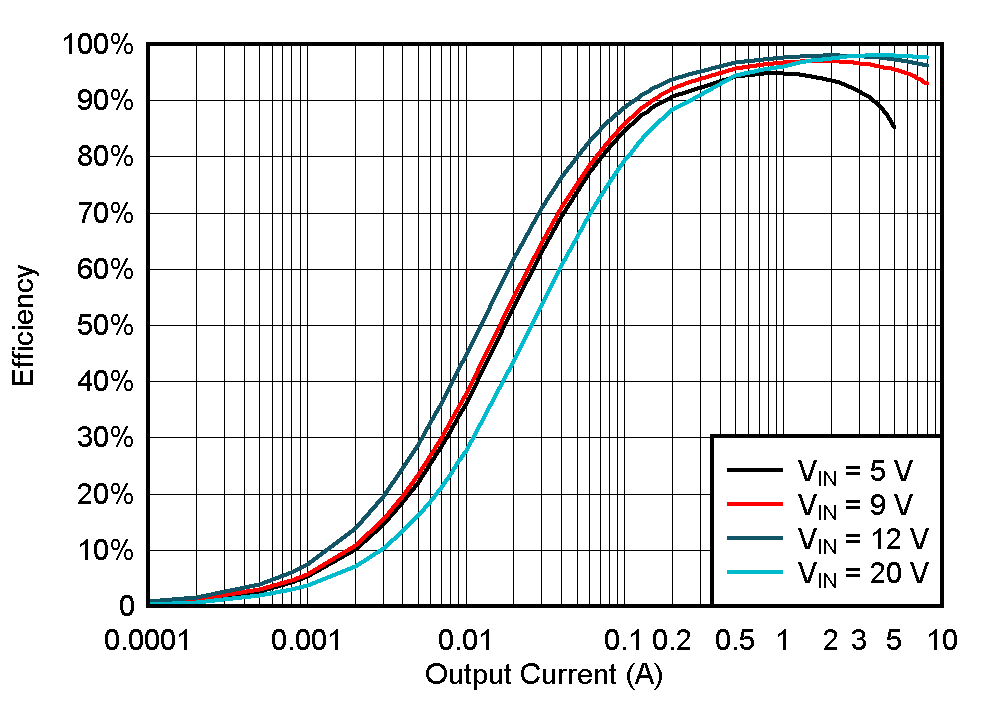

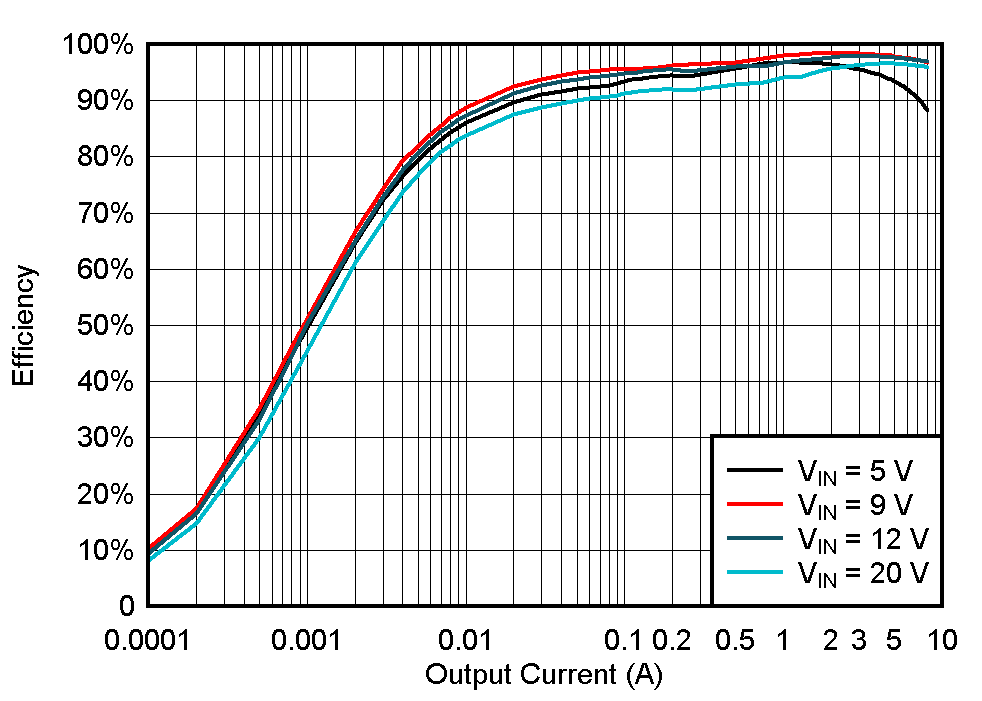

Figure 6-1 Efficiency vs Output Current,
VOUT = 5 V, FPWM. VIN = 12 V, TA = 25°C, fSW = 400 kHz, unless otherwise noted.
Figure 6-1 Efficiency vs Output Current,
VOUT = 5 V, FPWM. VIN = 12 V, TA = 25°C, fSW = 400 kHz, unless otherwise noted.

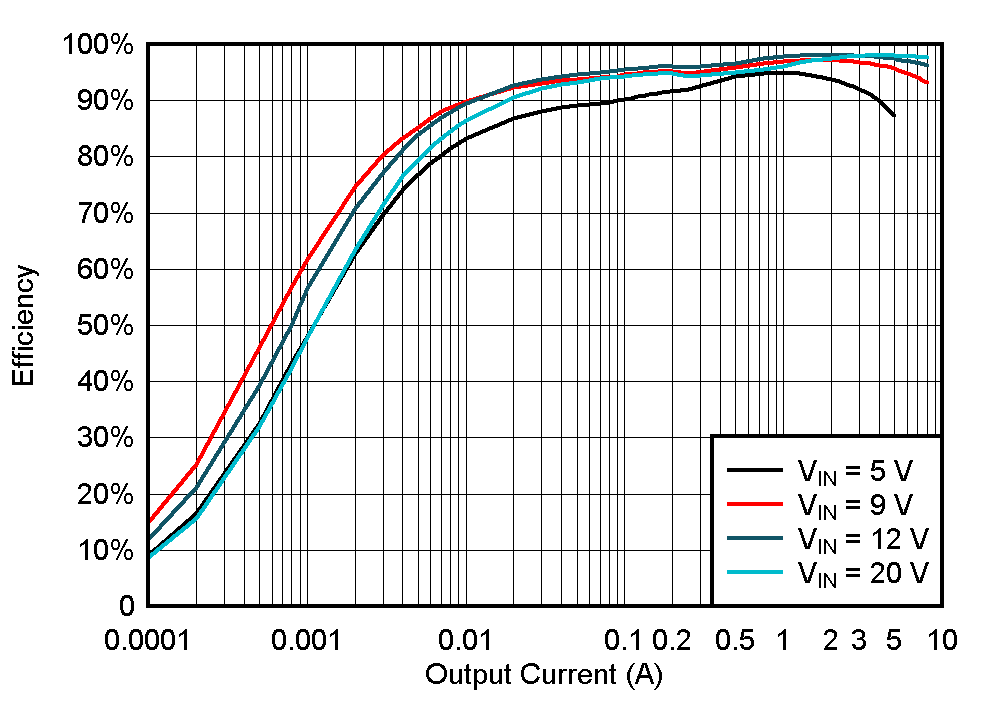

Figure 6-3 Efficiency vs Output Current, VOUT = 9 V, FPWM

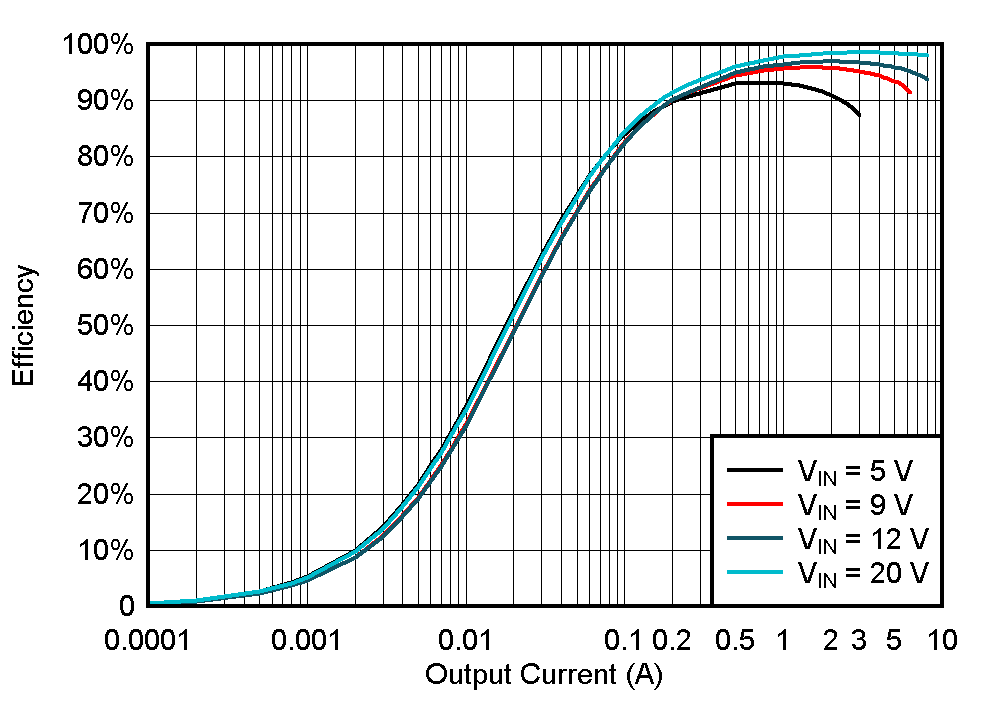

Figure 6-5 Efficiency vs Output Current, VOUT = 12 V, FPWM
Figure 6-7 Efficiency vs Output Current, VOUT = 15 V, FPWM

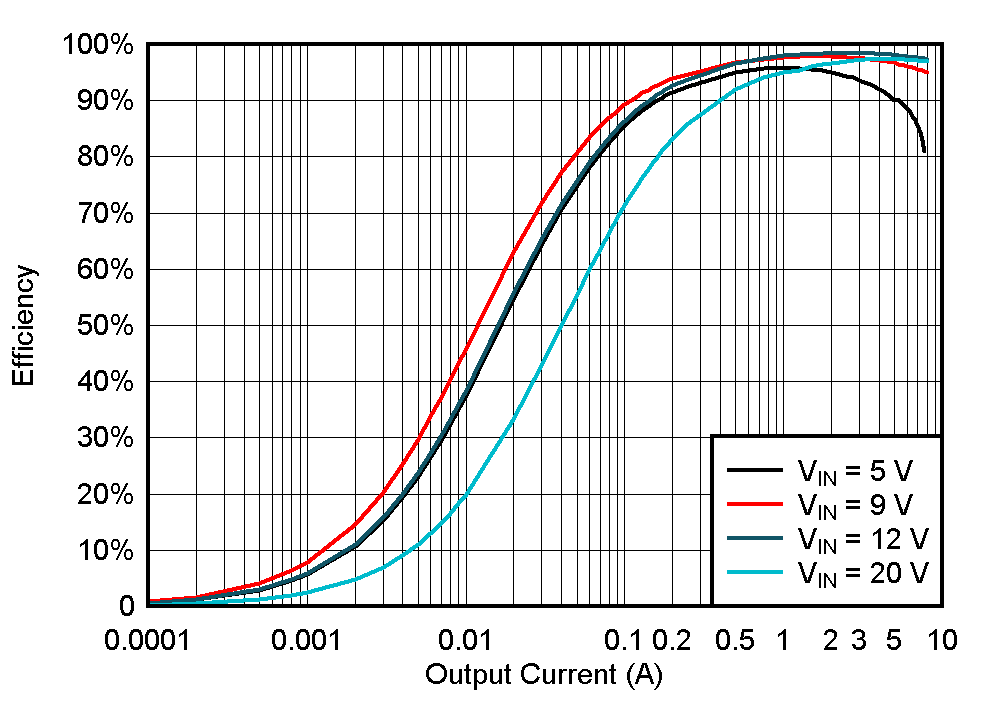

Figure 6-9 Efficiency vs Output Current, VOUT = 20 V, FPWM

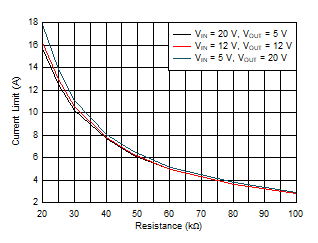

Figure 6-11 Average Inductor Current Limit vs Setting
Resistance

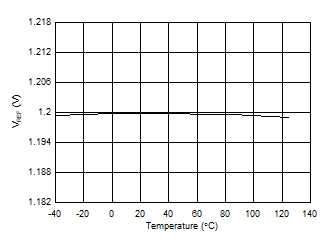

Figure 6-13 Reference Voltage vs Temperature (VREF
= 1.2 V)

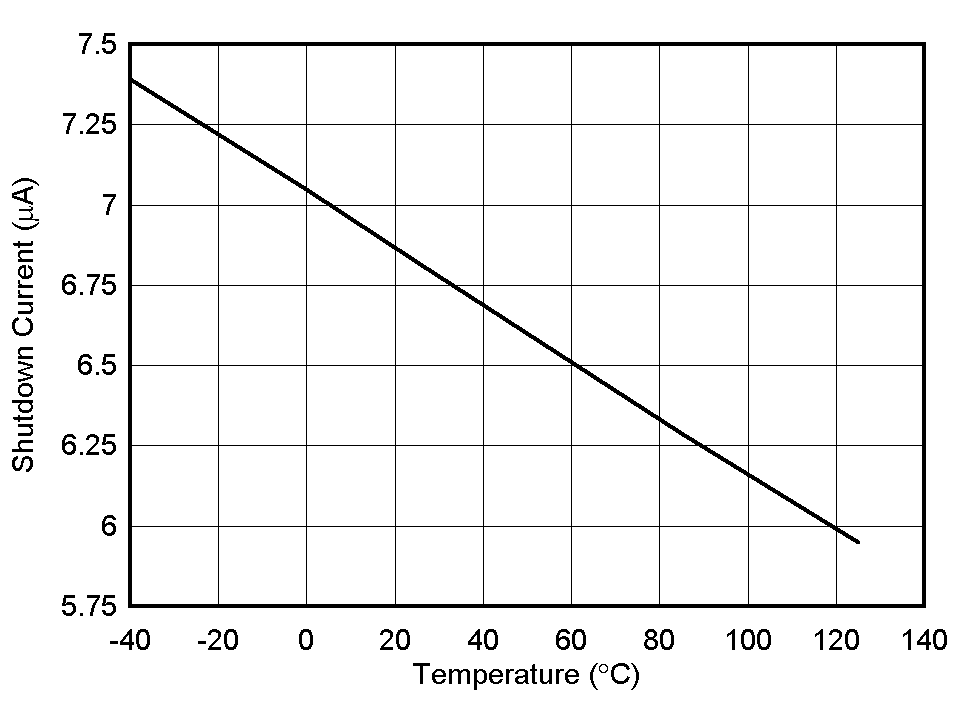

Figure 6-15 Shutdown Current vs Temperature

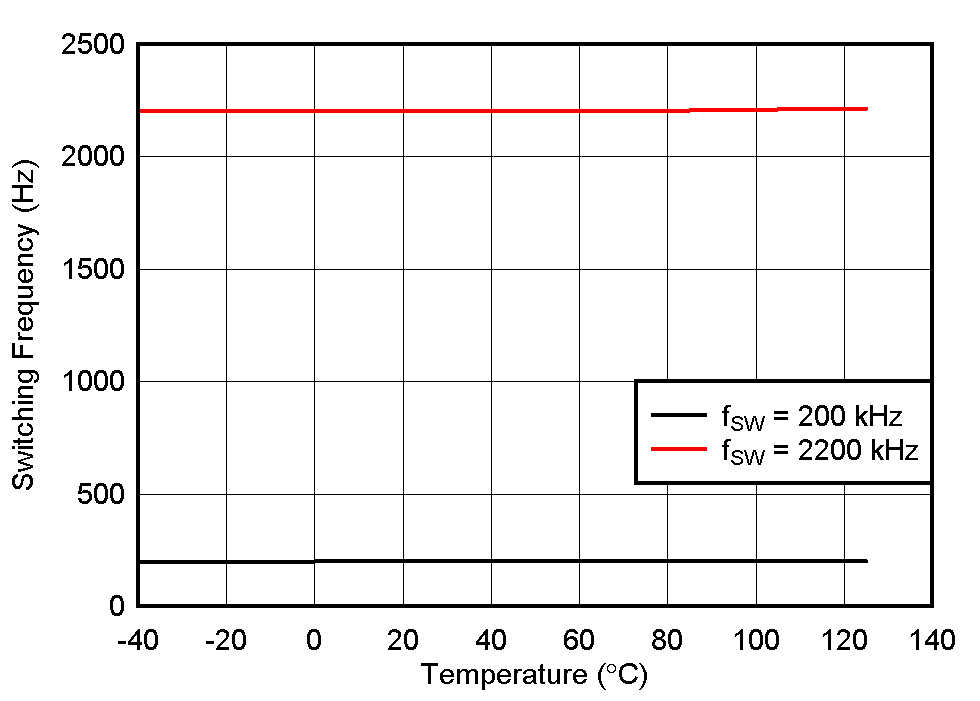

Figure 6-17 Switching Frequency vs Temperature

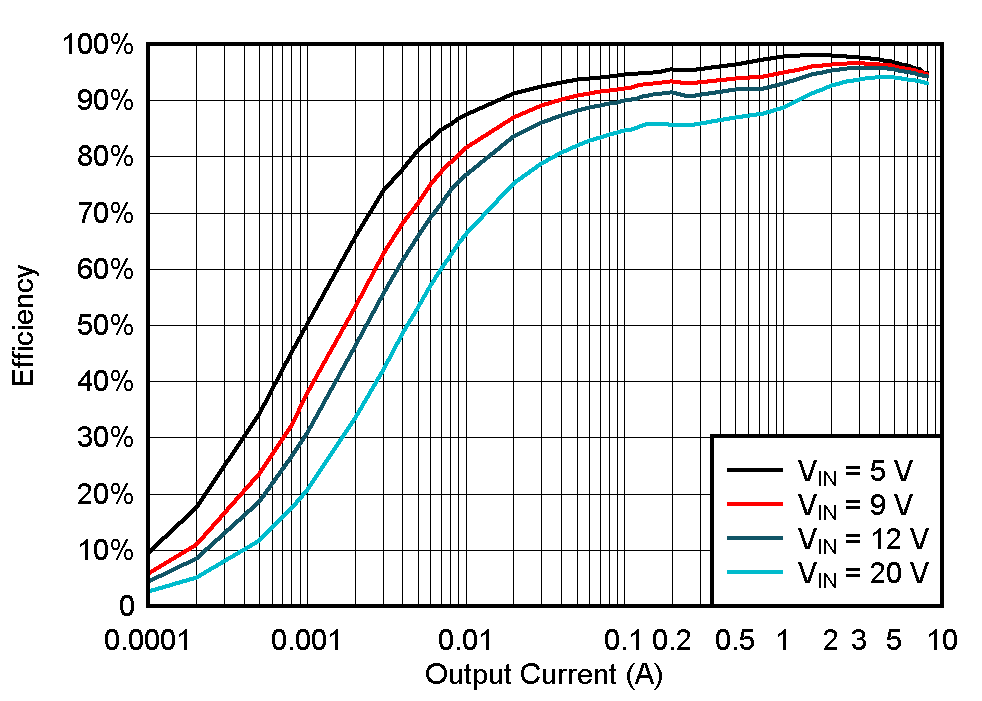

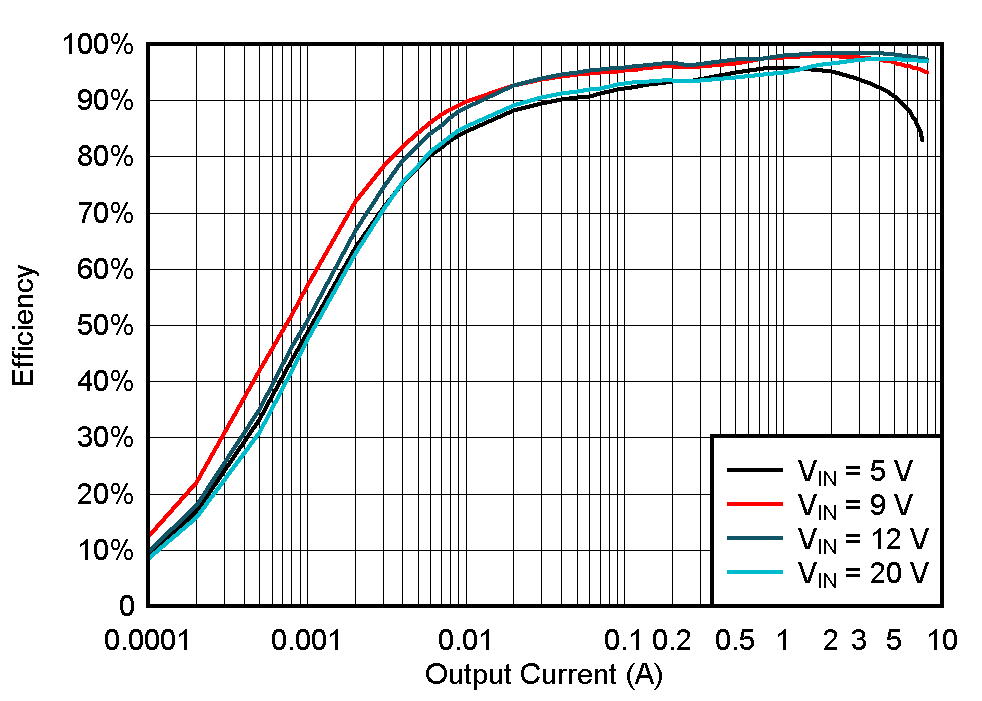

Figure 6-2 Efficiency vs Output Current,
VOUT = 5 V, PFM

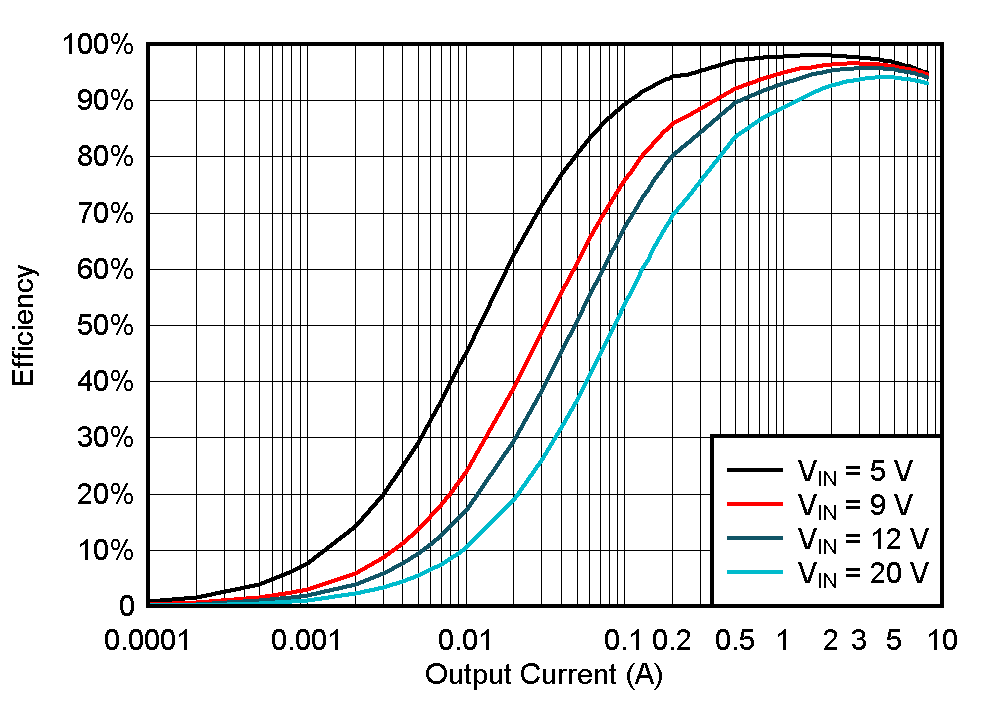

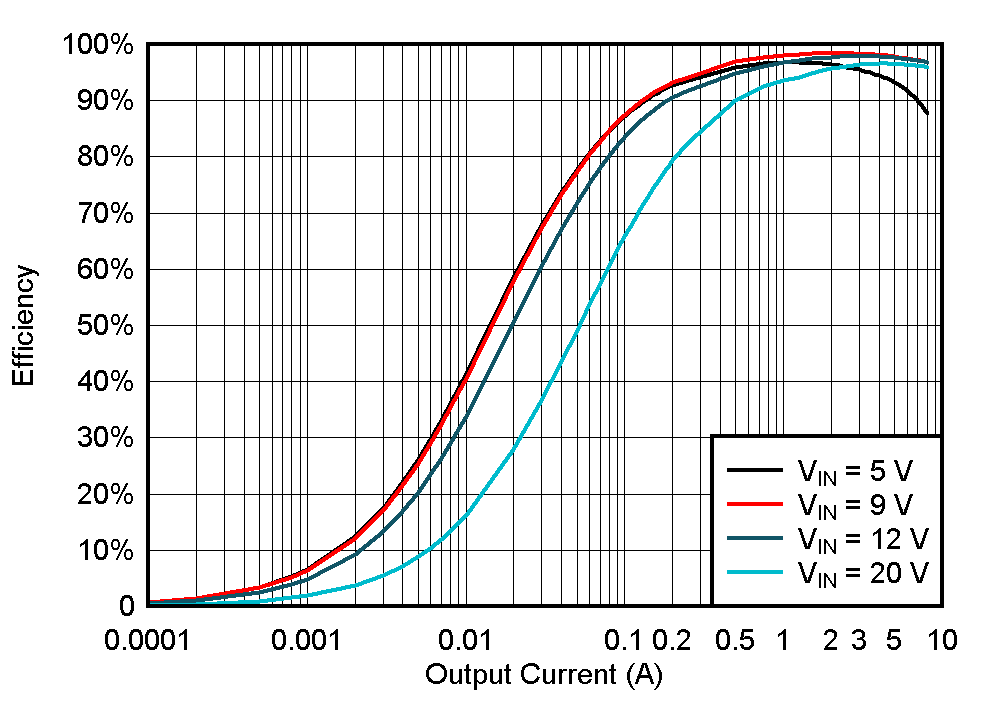

Figure 6-4 Efficiency vs Output Current, VOUT = 9 V, PFM

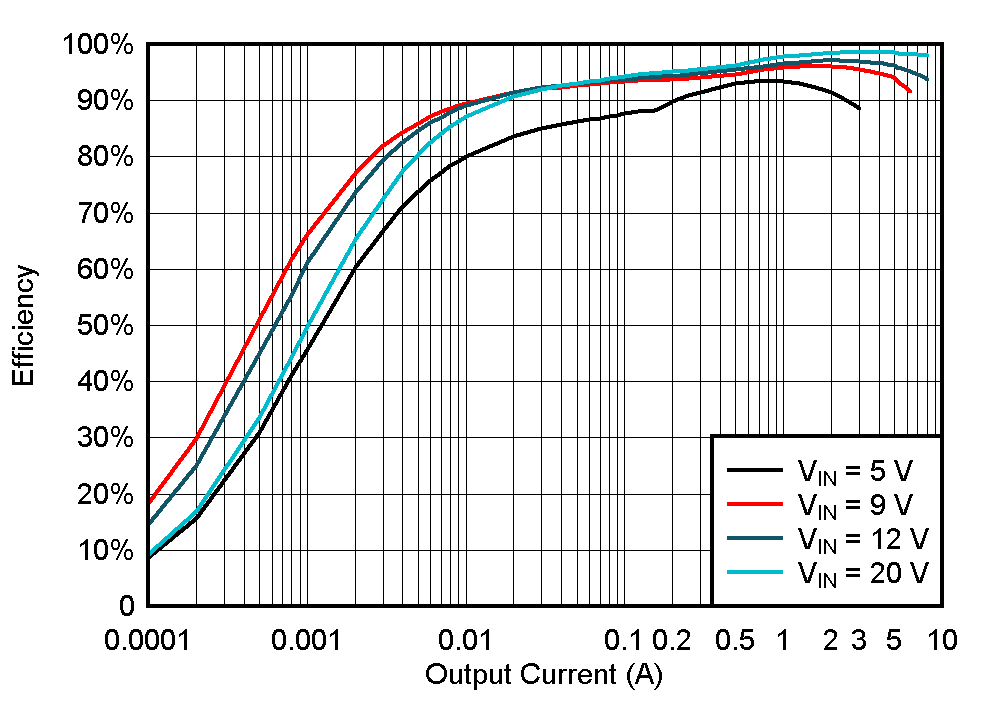

Figure 6-6 Efficiency vs Output Current, VOUT = 12 V, PFM
Figure 6-8 Efficiency vs Output Current, VOUT = 15 V, PFM
Figure 6-10 Efficiency vs Output Current, VOUT = 20 V, PFM

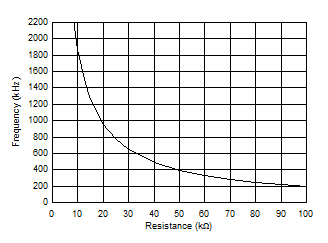

Figure 6-12 Switching Frequency vs Setting Resistance

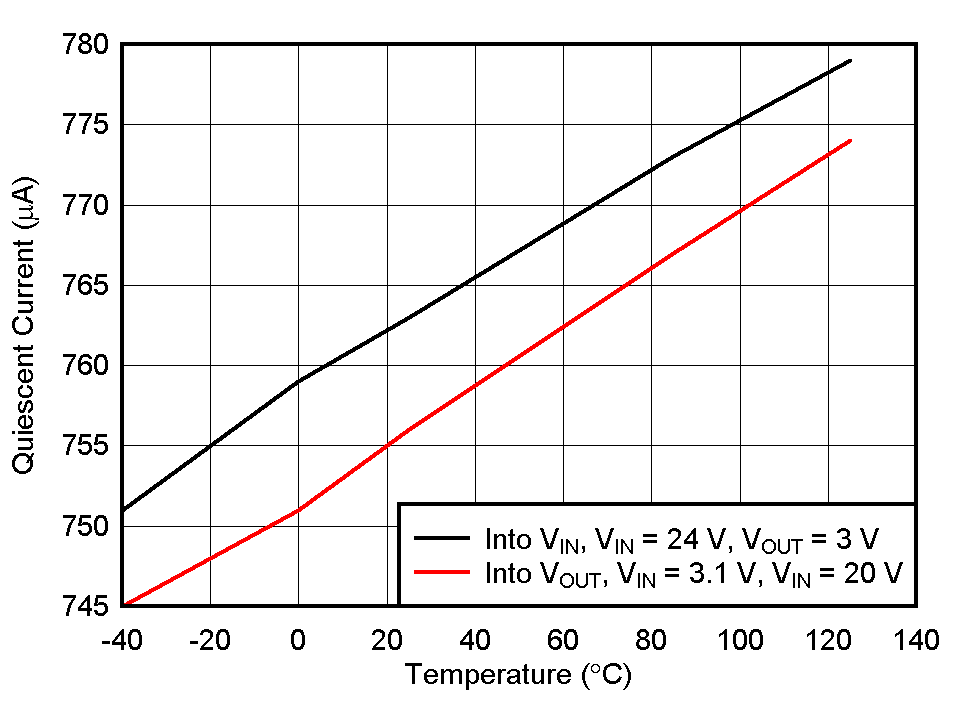

Figure 6-14 Quiescent Current vs Temperature

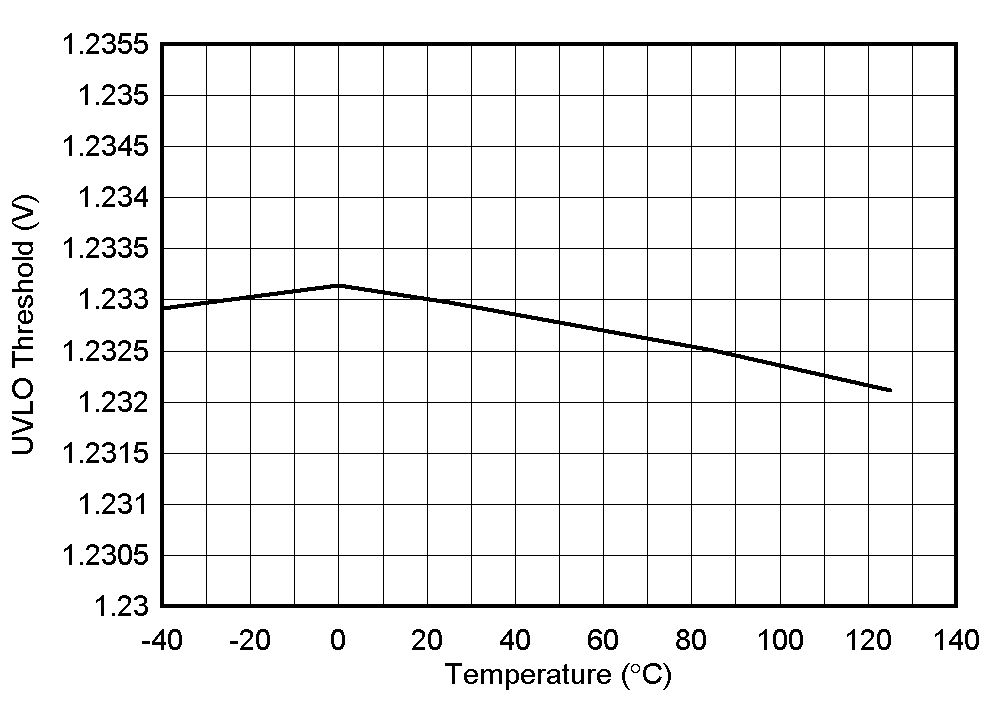

Figure 6-16 ENABLE/UVLO Rising Threshold vs
Temperature

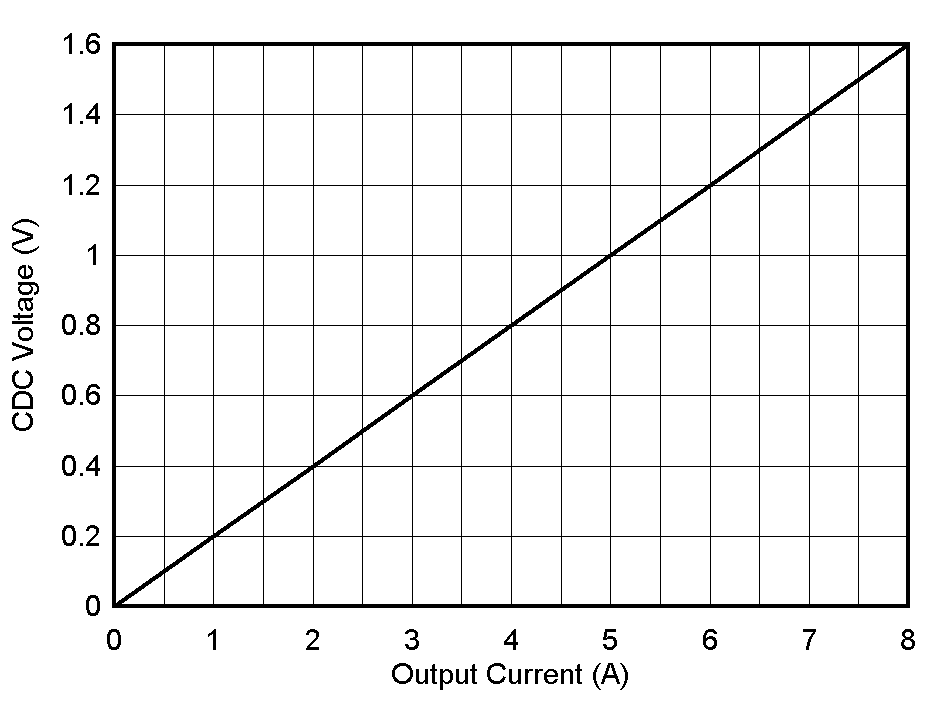

Figure 6-18 CDC
Voltage vs Output Current with RSENSE =
10 mΩ
