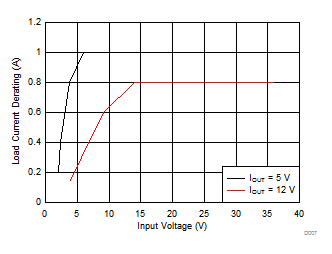

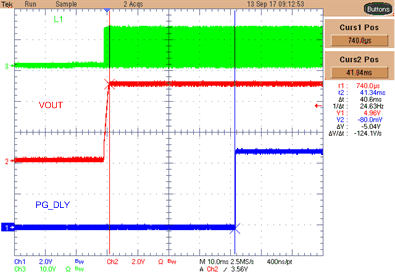

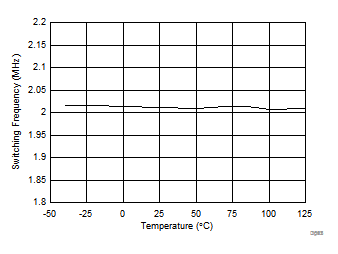

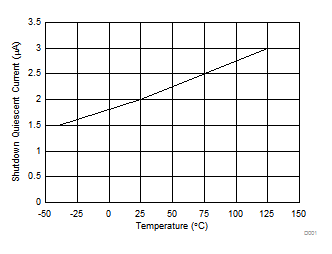

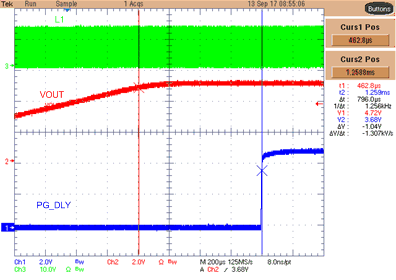

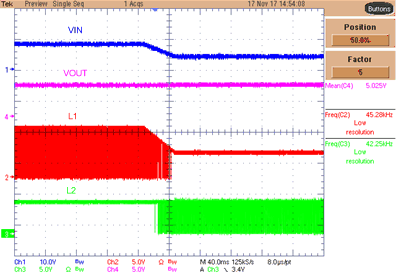

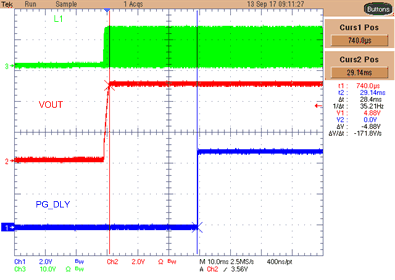

7.20 Typical Characteristics
| VIN = 12 V |

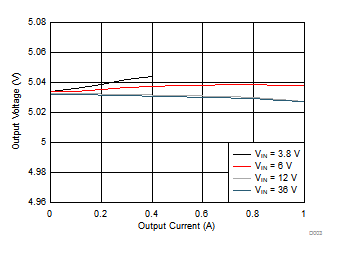

Figure 7-3 5-V
Output Regulation vs Load Current

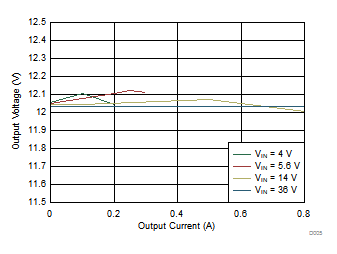

Figure 7-5 12-V
Output Regulation vs Load Current

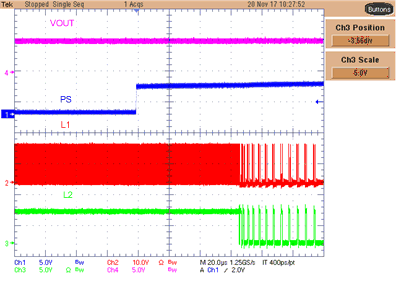

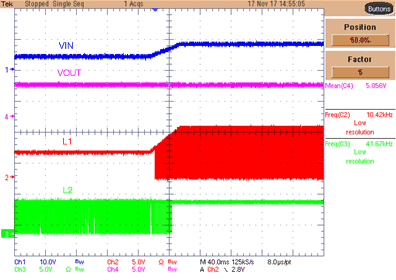

| VIN = 12 V | VOUT = 5 V |
| VIN = 12 V | VOUT = 5 V |
| VIN = 12 V | VOUT = 5 V | IOUT = 50 mA |
| 4 V ≤ VIN ≤ 8 V | VOUT = 5 V | IOUT = 0.5 A |

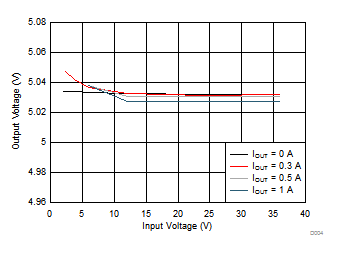

Figure 7-4 5-V
Output Regulation vs Input Voltage

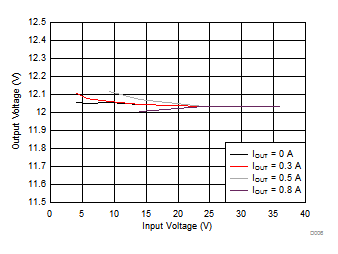

Figure 7-6 12-V
Output Regulation vs Input Voltage

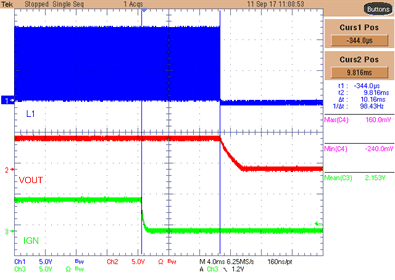

| VIN = 12 V | VOUT = 5 V |
| VIN = 14 V | VOUT = 5 V | IOUT = 0 A |
| 4 V ≤ VIN ≤ 12 V | VOUT = 5 V | IOUT = 0.5 A |
