8.4.2.1 Thermal Performance on TPS548C26 Evaluation Board
Below are thermal results captured on the TPS548C26 evaluation board with PVIN = 12 V, VOUT = 3.3 V conditions.

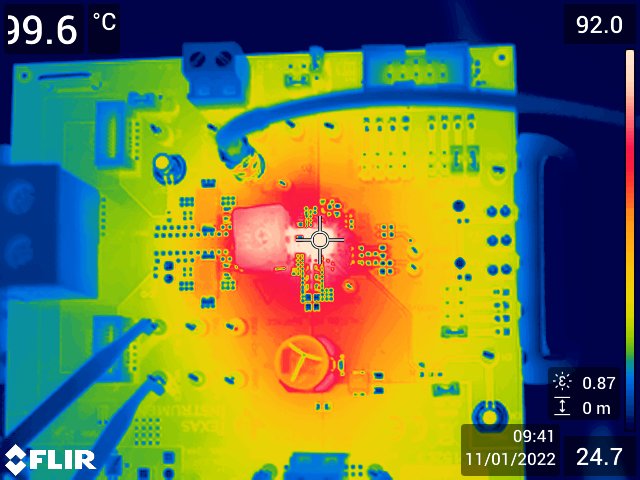

Figure 8-18 Thermal Characteristics, 600-kHz FCCM,
Internal LDO, 35-A Load

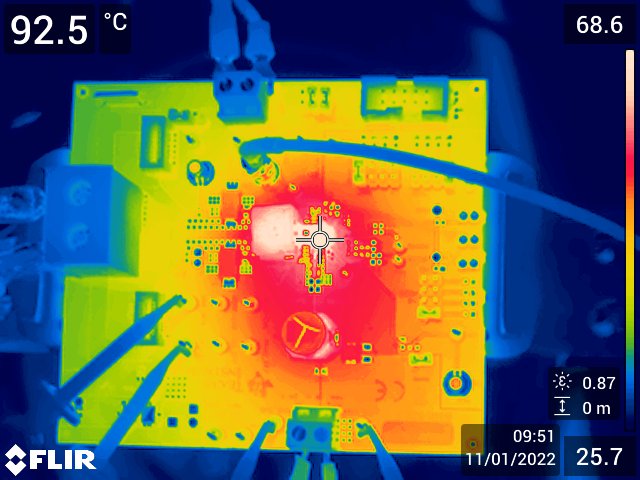

Figure 8-19 Thermal Characteristics, 600-kHz FCCM,
Internal LDO, 35-A Load
