6.7 Typical Characteristics

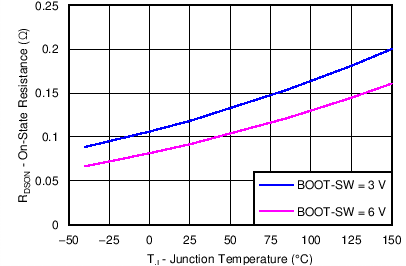

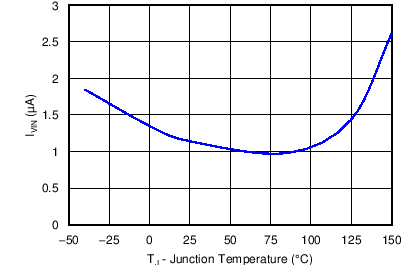

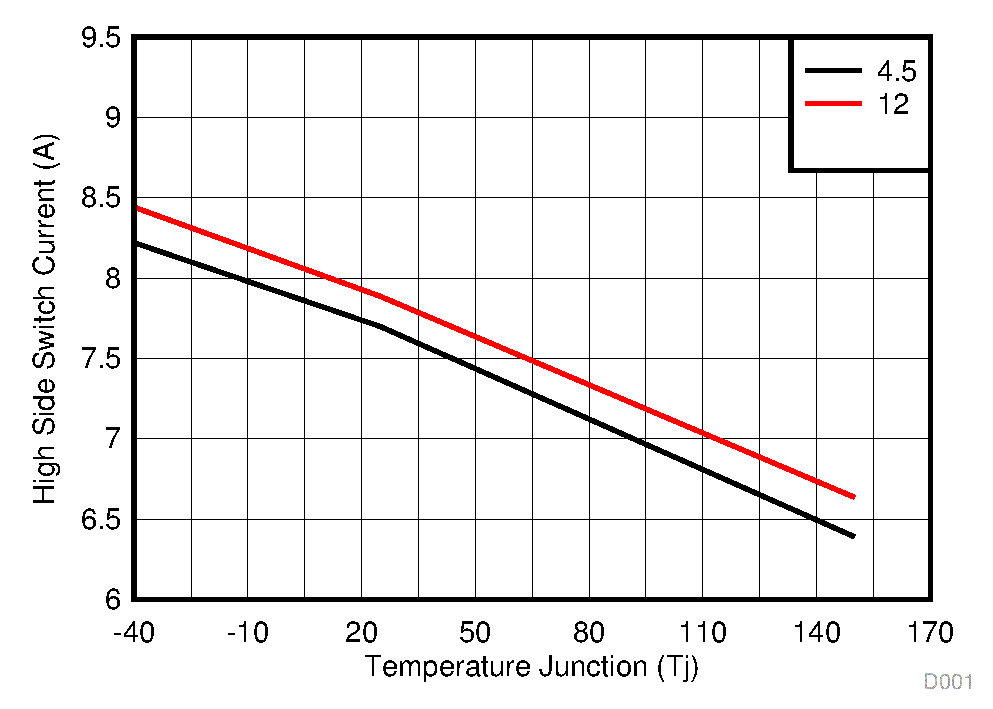

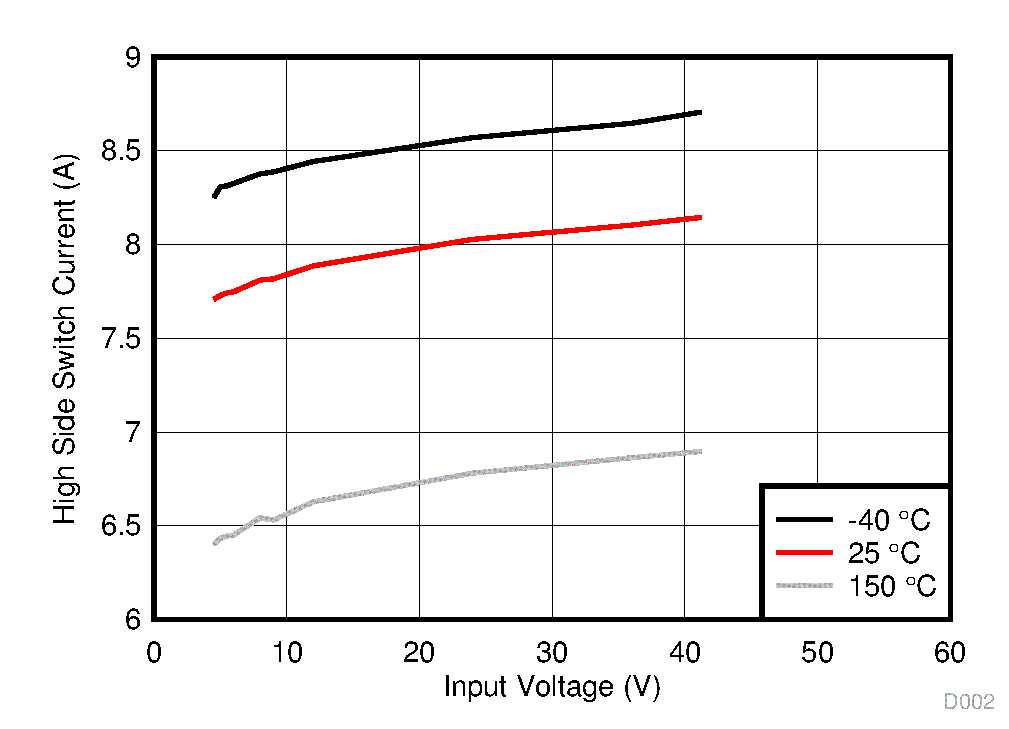

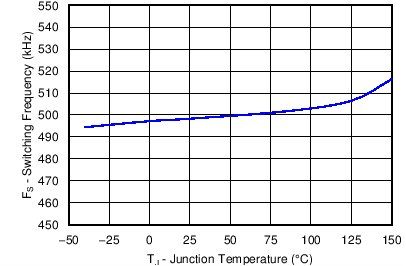

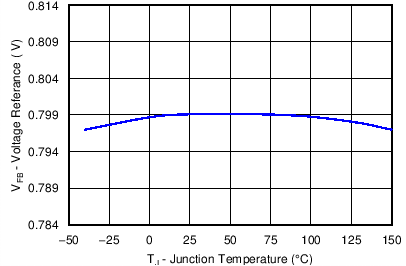

| VIN = 12 V |
| VIN = 4.5 and 12 V |
| VIN = 12 V |
| VIN = 12 V | RT = 200 kΩ | |
| VIN = 12 V | ||
High Frequency Range
| VIN = 12 V |

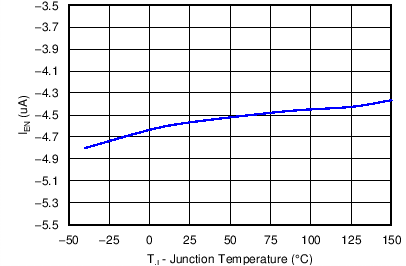

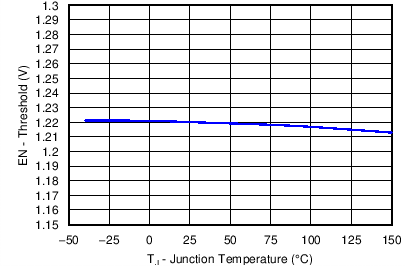

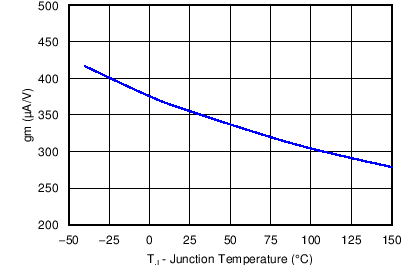

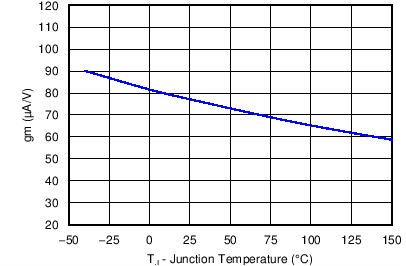

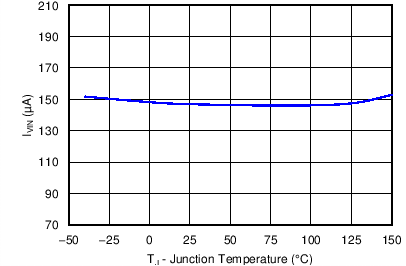

| VIN = 12 V | IEN = Threshold +50 mV |
| VIN = 12 V |
| VIN = 12 V |
| VIN = 12 V |

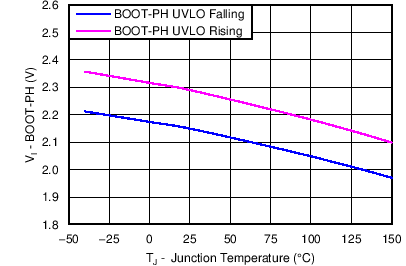

Figure 19. BOOT-SW UVLO vs Junction Temperature

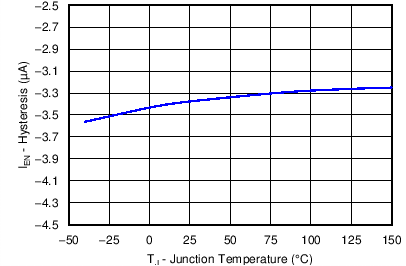

| VIN = 12 V | TJ = 25°C |

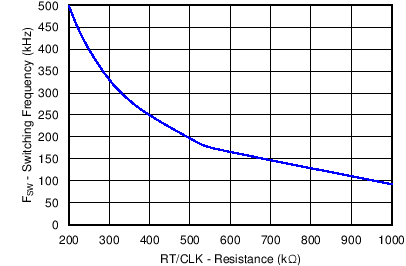

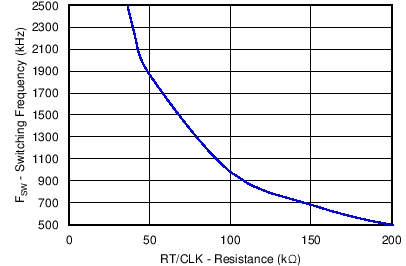

| ƒsw (kHz) = 92471 x RT (kΩ)-0.991 | ||
| RT (kΩ) = 101756 x ƒsw (kHz)-1.008 |
Low Frequency Range
| VIN = 12 V |

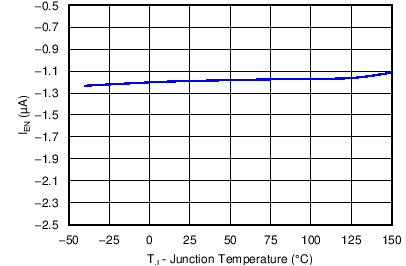

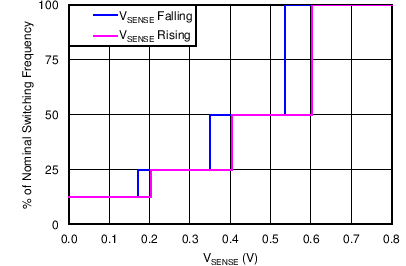

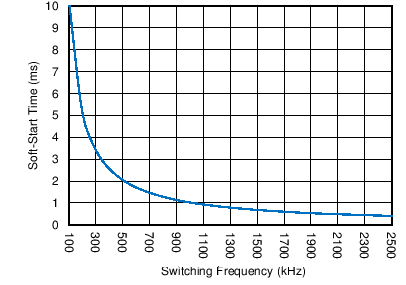

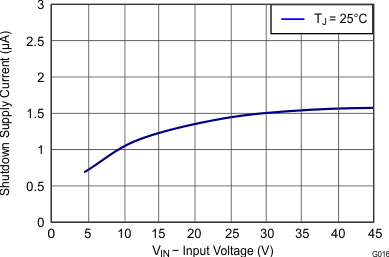

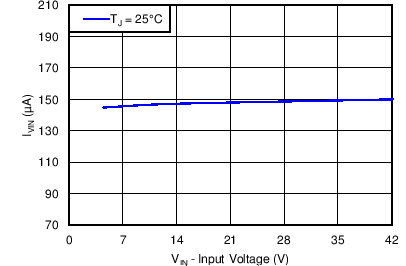

| VIN = 12 V | IEN = Threshold –50 mV |
| TA = 25°C |
| TJ = 25°C |

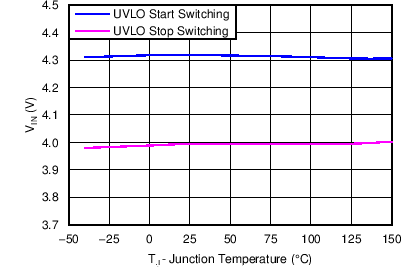

Figure 20. Input Voltage UVLO vs Junction Temperature
