8.2.3 Application Curves

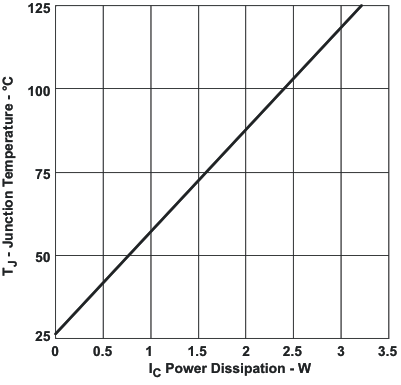

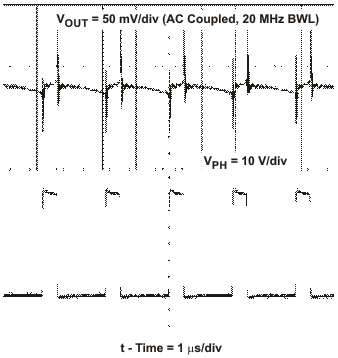

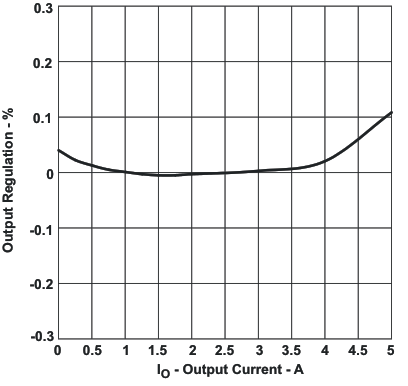

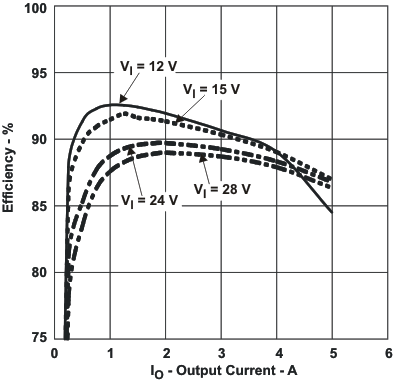

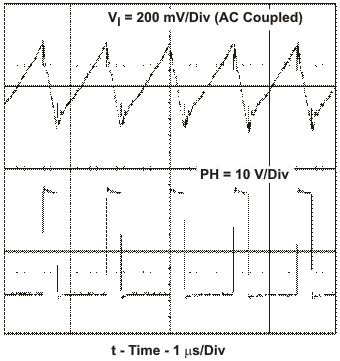

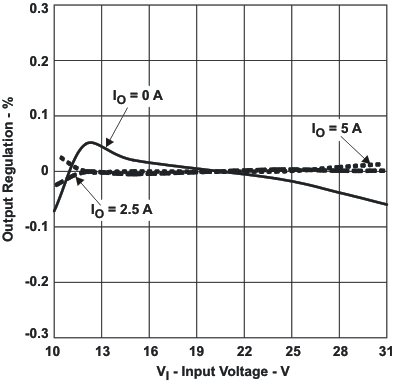

The performance graphs (Figure 10 through Figure 16) are applicable to the circuit in Figure 9. TA = 25 °C. unless otherwise specified.
| IOUT = 5 A | ||
| IOUT = 5 A |

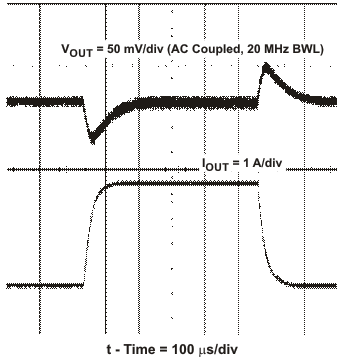

| IOUT Step 1.25 To 3.75 A |
