10.2.1 Thermal Performance

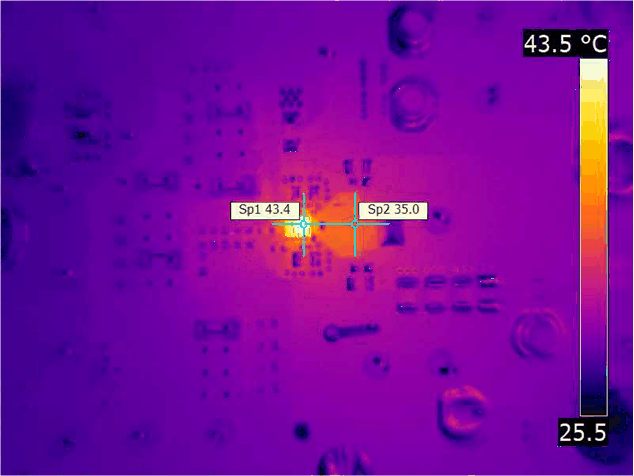

Test Conditions: fSW = 1 MHz, Vin = 12 V, Vout = 1 V, Iout = 6 A, Inductor = 600 nH (4.44 mΩ typ), Ambient temperature = 25°C
Figure 10-2 Thermal Image at

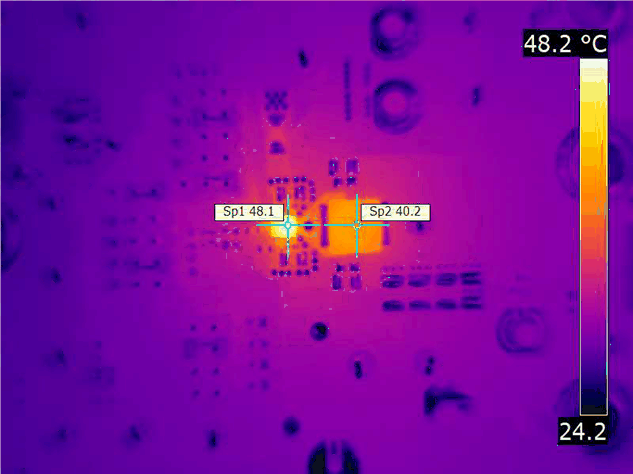

25°C AmbientTest Conditions: fSW = 1 MHz, Vin = 12 V, Vout = 3.3 V, Iout = 6 A, Inductor = 1.8 μH (9.6 mΩ typ), Ambient temperature = 25°C
Figure 10-3 Thermal Image at
25°C Ambient
