6.6 Typical Characteristics

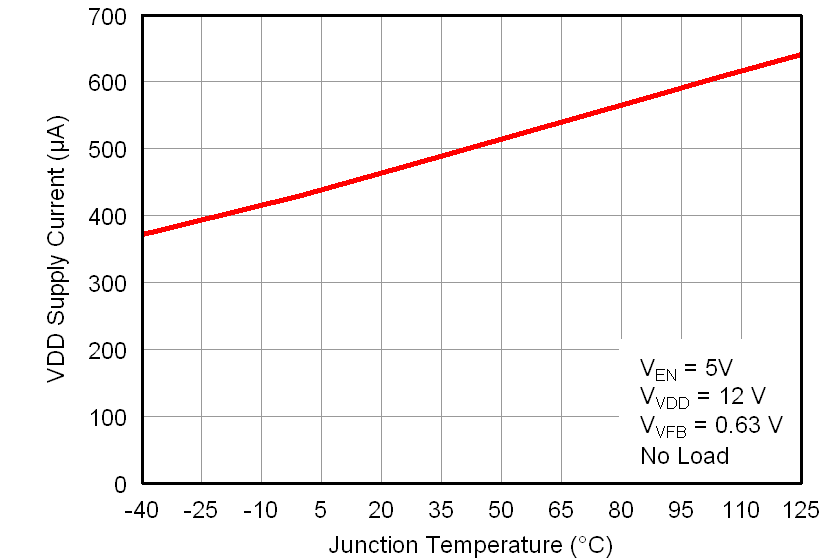

Figure 6-1 VDD Supply Current vs. Junction Temperature

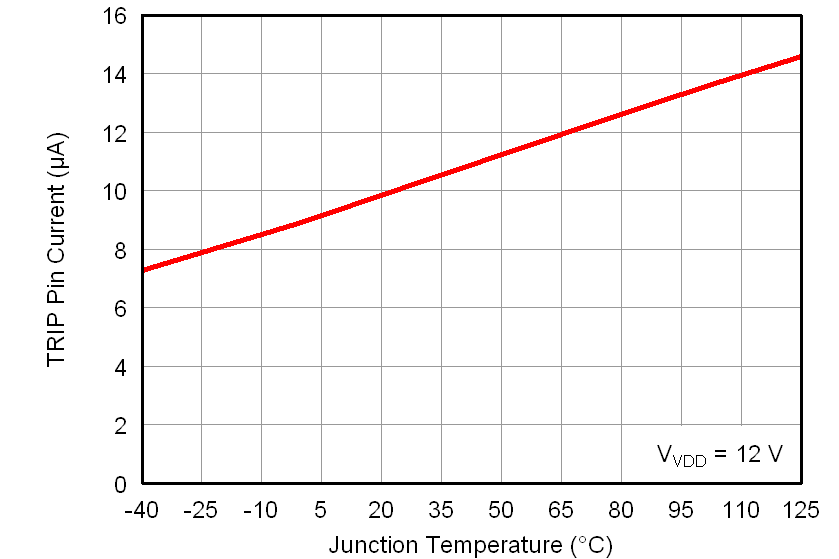

Figure 6-3 TRIP Pin Current vs. Junction Temperature

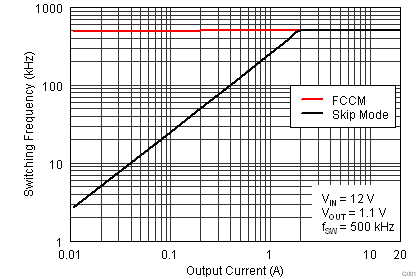

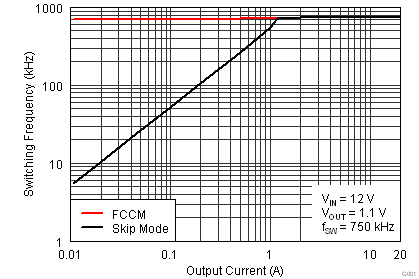

Figure 6-5 Switching Frequency vs. Output Current

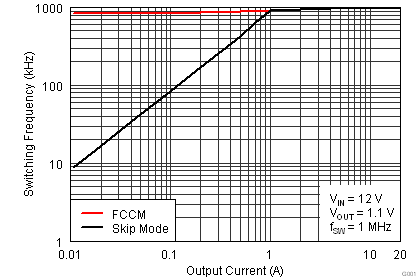

Figure 6-7 Switching Frequency vs. Output Current

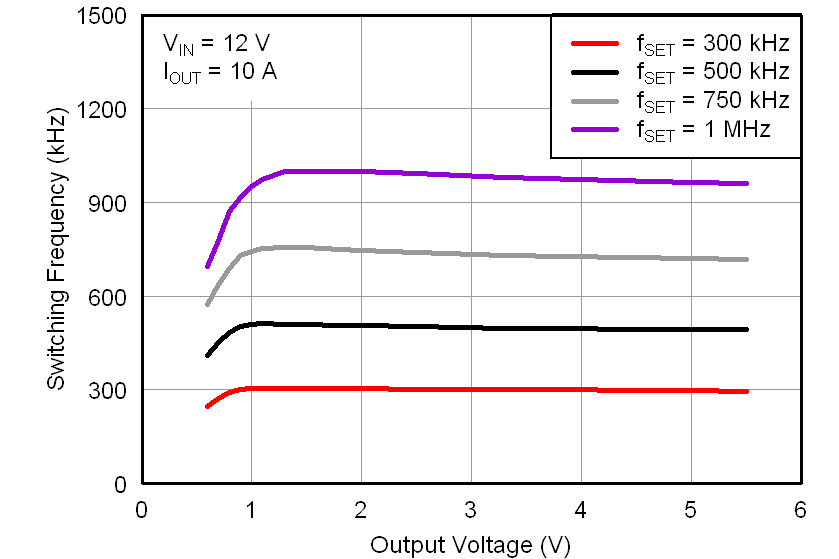

Figure 6-9 Switching Frequency vs. Output Voltage

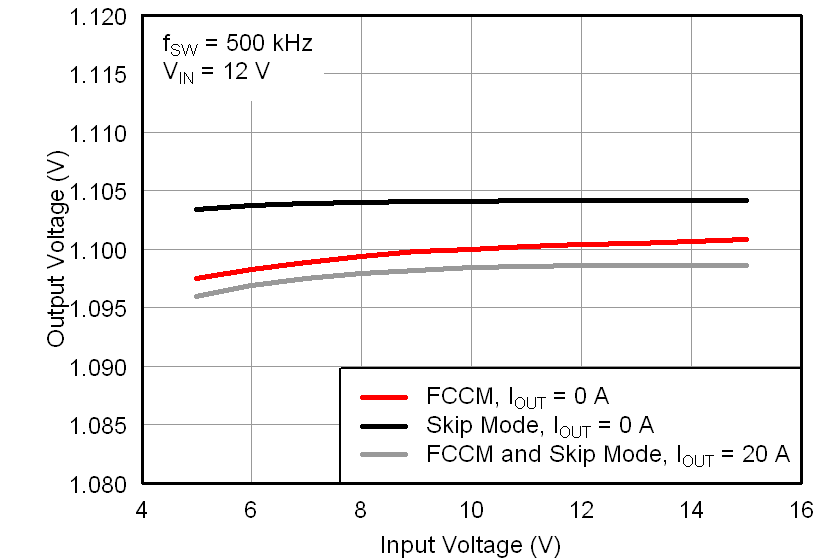

Figure 6-11 Output Voltage vs. Input Voltage

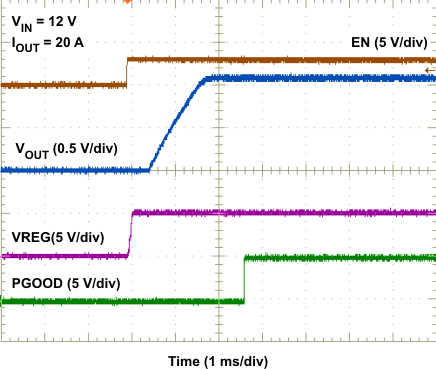

Figure 6-13 Start-Up Waveforms

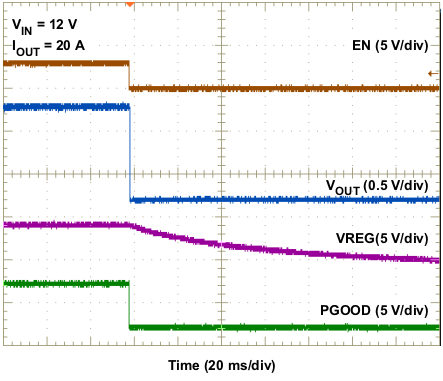

Figure 6-15 Shutdown Waveforms

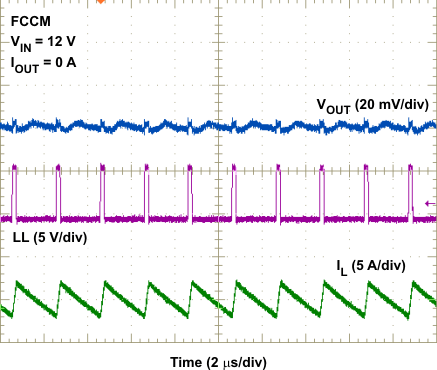

Figure 6-17 1.1-V Output FCCM Mode Steady-State Operation
Figure 6-19 CCM-to-DCM Transition Waveforms

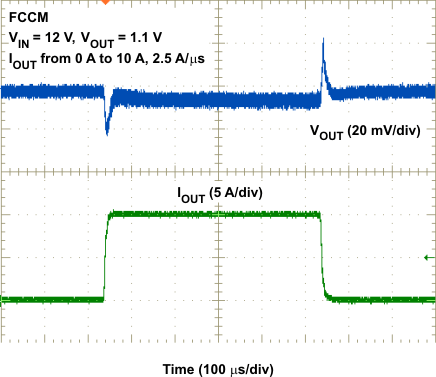

Figure 6-21 FCCM Load Transient

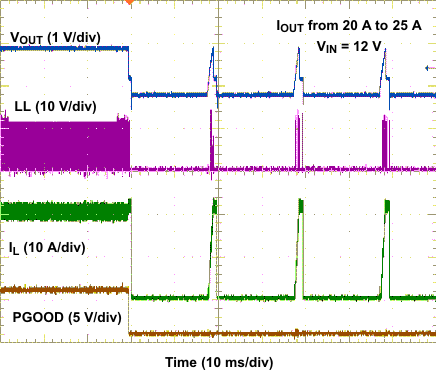

Figure 6-23 Overcurrent Protection Waveforms

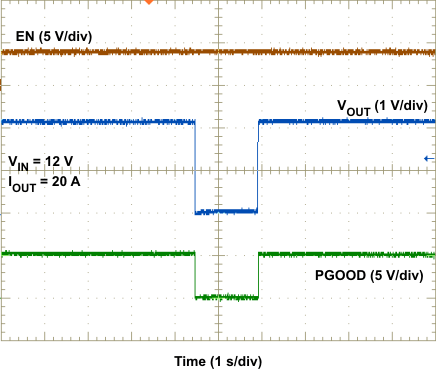

Figure 6-25 Overtemperature Protection Waveforms

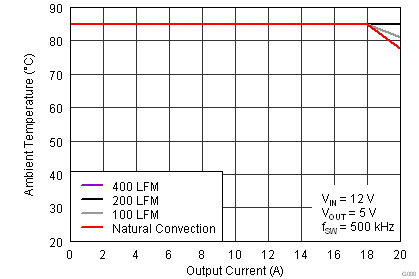

Figure 6-27 Safe Operating Area

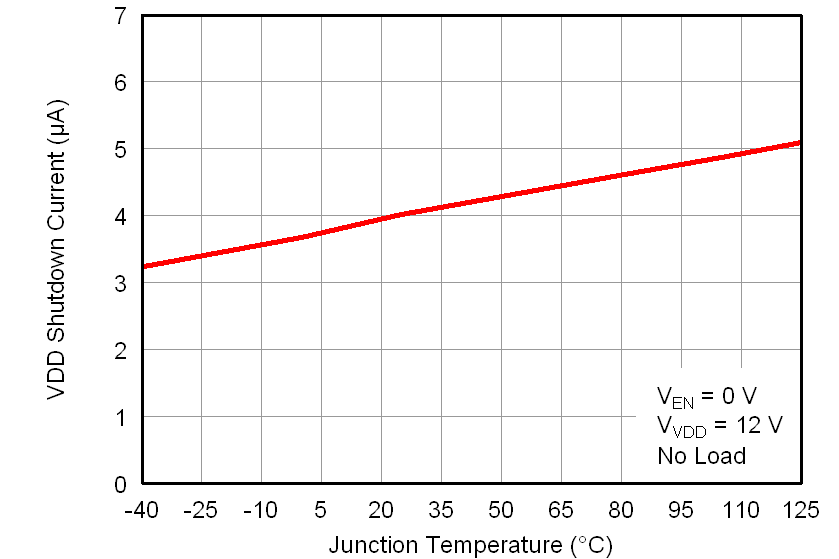

Figure 6-2 VDD Shutdown Current vs. Junction Temperature

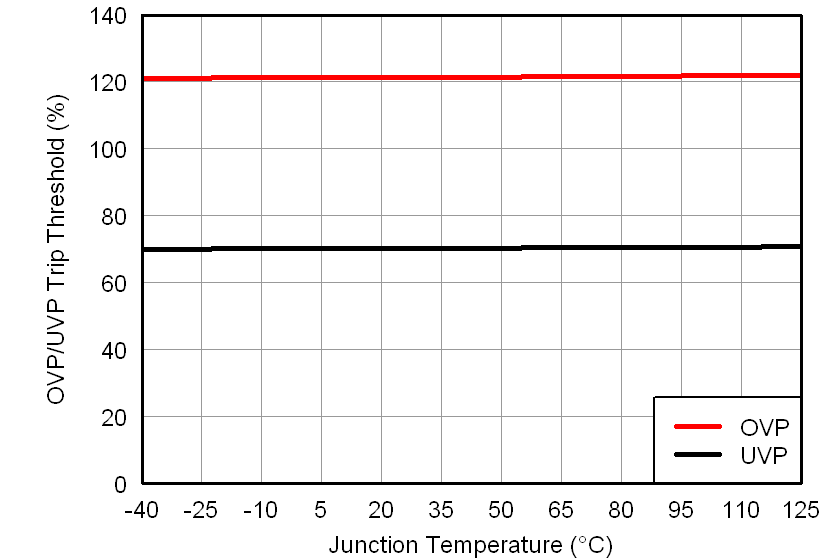

Figure 6-4 OVP/UVP Trip Threshold vs. Junction Temperature
Figure 6-6 Switching Frequency vs. Output Current
Figure 6-8 Switching Frequency vs. Output Current

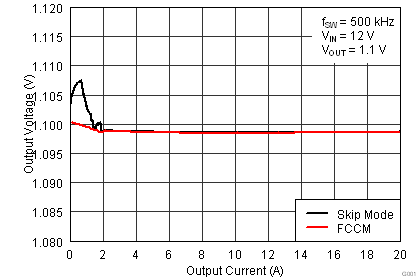

Figure 6-10 Output Voltage vs. Output Current

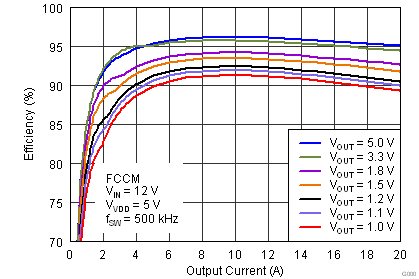

Figure 6-12 Efficiency vs Output Current
Figure 6-14 Prebias Start-Up Waveforms
Figure 6-16 UVLO Start-Up Waveforms

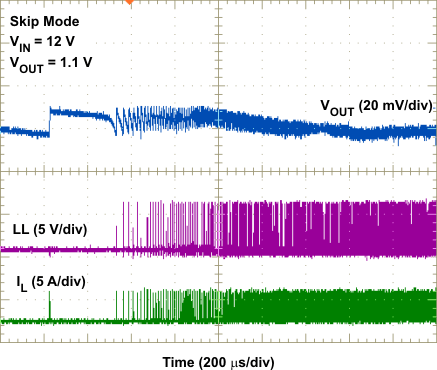

Figure 6-18 1.1-V Output Skip Mode Steady-State Operation

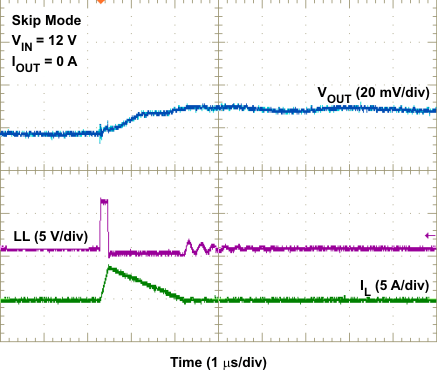

Figure 6-20 DCM-to-CCM Transition Waveforms

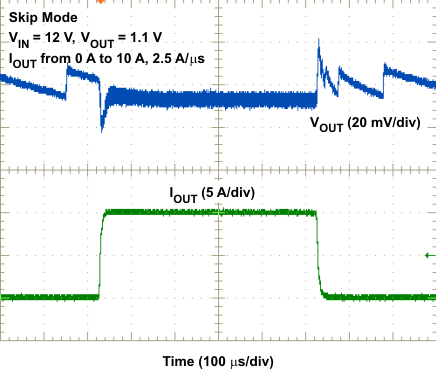

Figure 6-22 Skip Mode Load Transeint

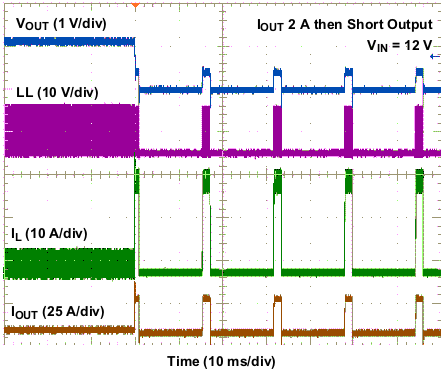

Figure 6-24 Output Short-Circuit Protection Waveforms

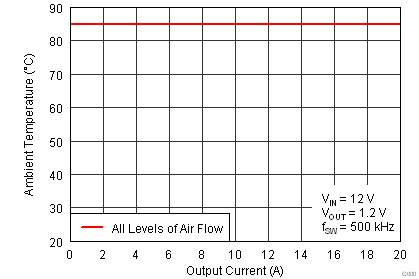

Figure 6-26 Safe Operating AreaFor VOUT = 5 V, an SC5026-1R0 inductor is used. For 1 ≤ VOUT ≤ 3.3 V, a PA0513.441 inductor is used

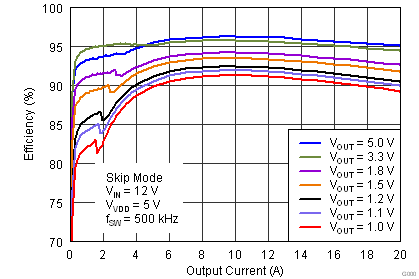

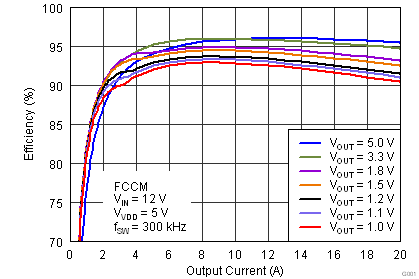

Figure 6-28 Efficiency vs Output Current

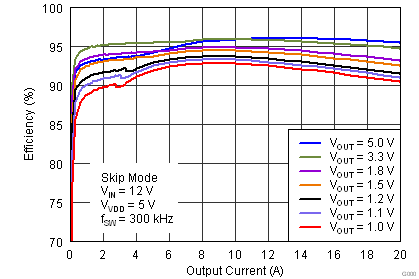

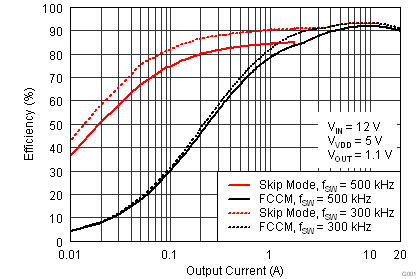

Figure 6-30 Efficiency vs Output Current

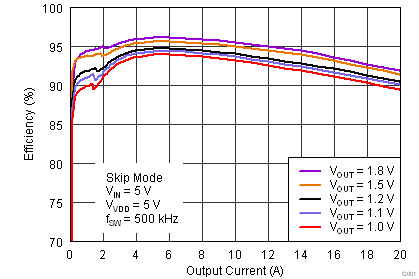

Figure 6-32 Efficiency vs Output Current
Figure 6-29 Efficiency vs Output Current
Figure 6-31 Efficiency vs Output Current
Figure 6-33 Efficiency vs Output Current
