6.6 Typical Characteristics
TJ = -40°C to 125°C, VIN = 12 V, unless otherwise noted.

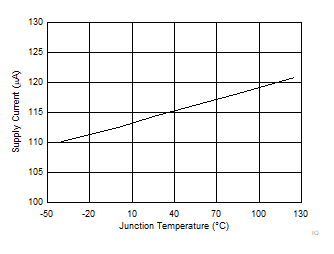

Figure 6-1 Supply Current vs Junction
Temperature

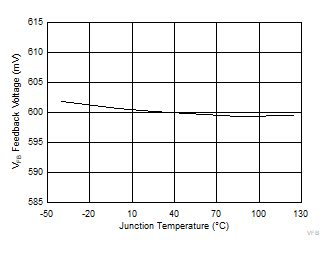

Figure 6-3 Feedback Voltage vs
Junction Temperature

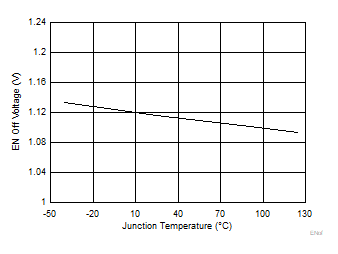

Figure 6-5 Enable Off Voltage vs
Junction Temperature

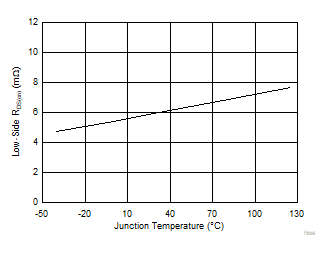

Figure 6-7 Low-Side
RDS(on) vs Junction Temperature
Figure 6-9 UVP Threshold vs Junction
Temperature
Figure 6-11 Valley Current Limit vs
Junction Temperature

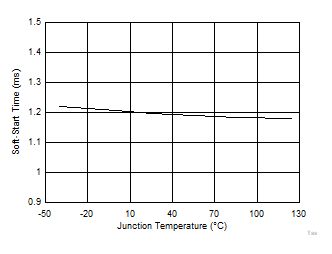

Figure 6-13 Soft-Start Time vs
Junction Temperature

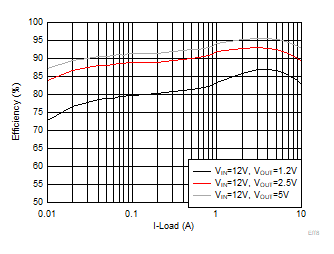

Figure 6-15 Efficiency vs Load Current, FSW = 500 kHz, Eco-mode

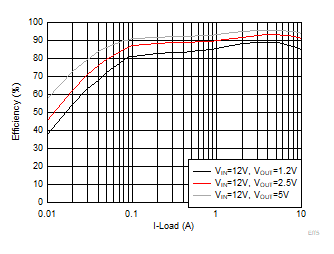

Figure 6-17 Efficiency vs Load Current, FSW = 500 kHz, OOA
Figure 6-19 Switching Frequency vs Load Current, FSW = 500 kHz, Eco-mode
Figure 6-21 Switching Frequency vs Load Current,
FSW = 500 kHz, OOA

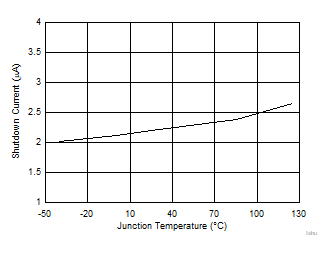

Figure 6-2 Shutdown Current vs
Junction Temperature

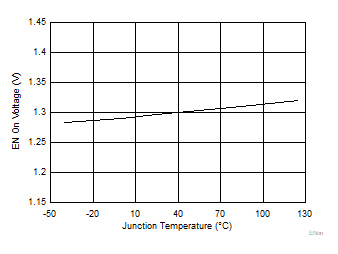

Figure 6-4 Enable On Voltage vs
Junction Temperature

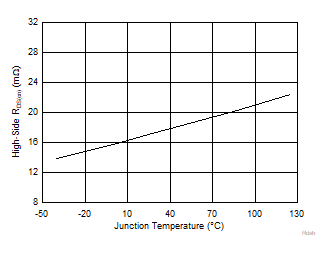

Figure 6-6 High-Side RDS(on)
vs Junction Temperature

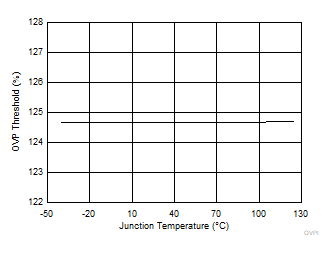

Figure 6-8 OVP Threshold vs Junction
Temperature

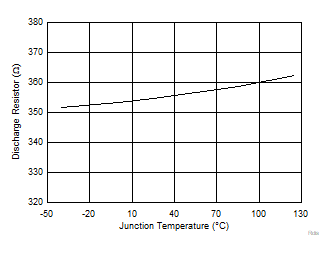

Figure 6-10 Discharge Resistor vs
Junction Temperature

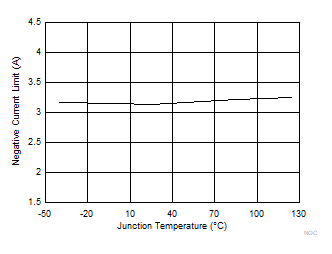

Figure 6-12 Negative Current Limit vs
Junction Temperature

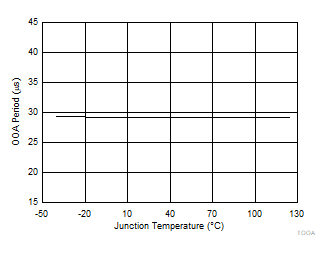

Figure 6-14 OOA Period vs Junction
Temperature
Figure 6-16 Efficiency vs Load Current, FSW = 800 kHz, Eco-mode

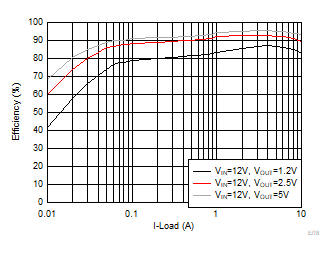

Figure 6-18 Efficiency vs Load Current, FSW =
800 kHz, OOA

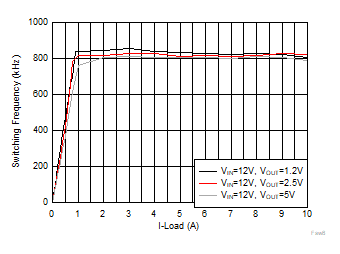

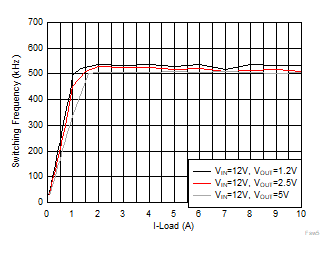

Figure 6-20 Switching Frequency vs Load Current,
FSW = 800 kHz, Eco-mode

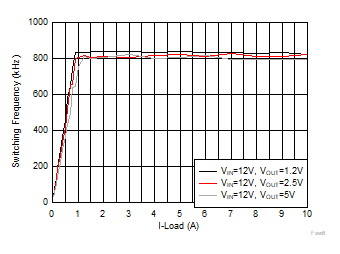

Figure 6-22 Switching Frequency vs Load Current,
FSW = 800k Hz, OOA
