8.2.3 Application Curves
The TPS40055EVM-001 application curves are shown in Figure 8-3 to Figure 8-7 for reference.

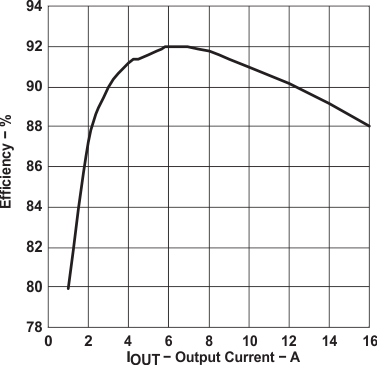

Figure 8-3 Efficiency vs Load

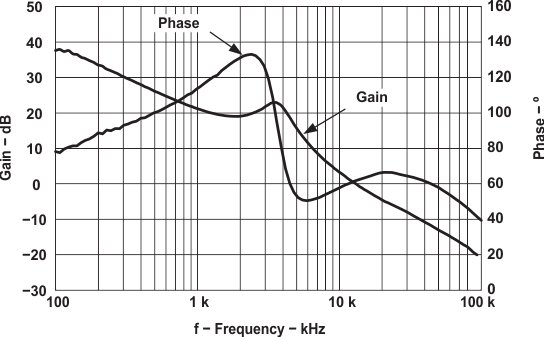

Figure 8-5 Overall Gain and Phase vs Frequency

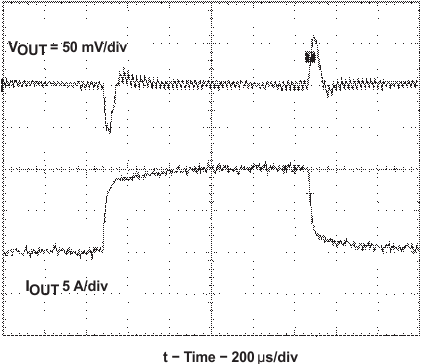

Figure 8-7 Transient Response

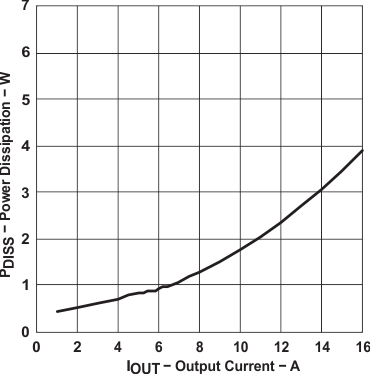

Figure 8-4 Power Dissipation vs Load
Figure 8-6 Output Voltage Ripple
