11 Layout
11.1 Port Current Kelvin Sensing

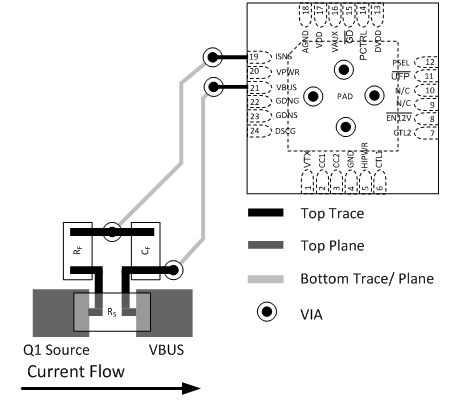

Figure 67 provides a routing example for accurate current sensing for the overcurrent protection feature. The sense amplifier measurement occurs between the ISNS and VBUS pins of the device. Improper connection of these pins can result in poor OCP performance.
Figure 67. Kelvin Sense Layout Example
11.2 Layout Guidelines
11.2.1 Power Pin Bypass Capacitors
- C(VPWR): Place close to pin 20 (VPWR) and connect with low inductance traces and vias according to Figure 68.
- C(VDD): Place close to pin 17 (VDD) and connect with low inductance traces and vias according to Figure 68.
- C(DVDD): Place close to pin 13 (DVDD) and connect with low inductance traces and vias according to Figure 68.
- C(VAUX): Place close to pin 16 (VAUX) and connect with low inductance traces and vias according to Figure 68.
- C(VTX): Place close to pin 1 (VTX) and connect with low inductance traces and vias according to Figure 68.
11.2.2 Supporting Components
- C(RX): Place C(RX1) and C(RX2) in line with the CC1 and CC2 traces as shown in Figure 23. These should be placed within one inch from the Type C connector. Minimize stubs and tees from on the trace routes.

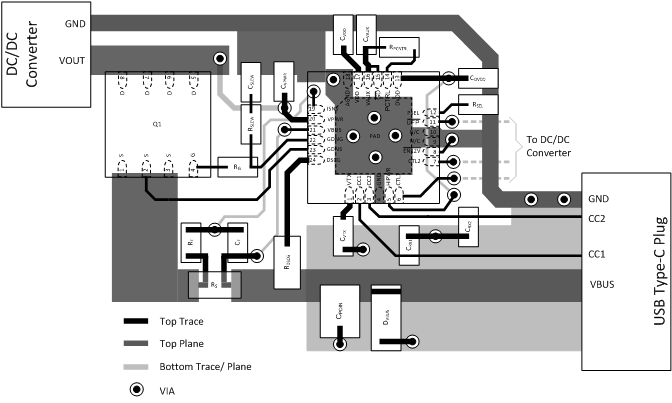

- Q1: Place Q1 in a manner such that power flows uninterrupted from Q1 drain to the Type C connector VBUS connections. Provide adequate copper plane from Q1 drain and source to the interconnecting circuits.
- RS: Place RS as shown in Figure 68 to facilitate uninterrupted power flow to the Type C connector. Orient RS for optimal Kelvin sense connection/routing back to the TPS25740 or TPS25740A. In high current applications where the power dissipation is over 250 mW, provide an adequate copper feed to the pads of RS.
- RG: Place RG near Q1 as shown in Figure 68. Minimize stray leakage paths as the GDNG sourcing current could be affected.
- R(SLEW)/C(SLEW): Place R(SLEW) and C(SLEW) near RG as shown in Figure 68.
- R(DSCG): Place on top of the VBUS copper route and connect to the DSCG pin with a 15 mil trace.
- RF/CF: When required, place RF and CF as shown in Figure 68 to facilitate the Kelvin sense connection back to the device.
- C(VBUS)/D(VBUS): Place C(VBUS) and D(VBUS) within one inch of the Type C connector and connect them to VBUS and GND using adequate copper shapes.
- R(SEL)/R(PCTRL): Place R(SEL) and R(PCTRL) near the device.
