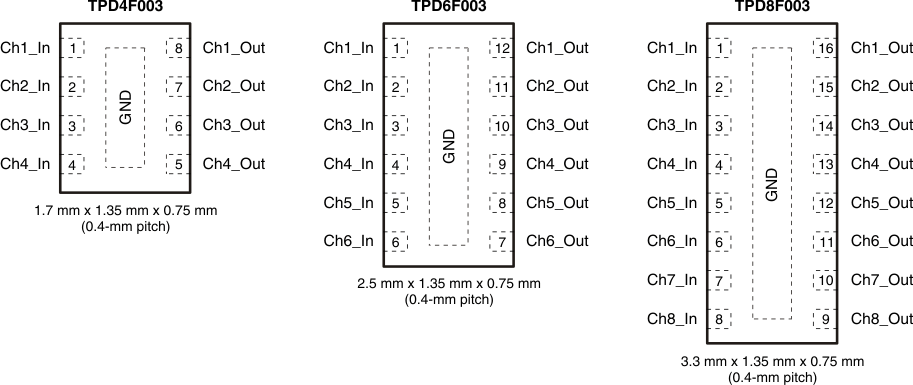

5 Pin Configuration and Functions
DQD PACKAGE
(TOP VIEW)
Pin Functions - TPD4F003
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | No. | ||
| ChX_In | 1, 2, 3, 4 | IO | ESD-protected channel, connected to corresponding ChX_Out |
| ChX_Out | 5, 6, 7, 8 | IO | ESD-protected channel, connected to corresponding ChX_In |
| GND | GND | G | Ground |
Pin Functions - TPD6F003
| PIN | I/O | Description | |
|---|---|---|---|
| Name | No. | ||
| ChX_In | 1, 2, 3, 4, 5, 6 | IO | ESD-protected channel, connected to corresponding ChX_Out |
| ChX_Out | 7, 8, 9, 10, 11, 12 | IO | ESD-protected channel, connected to corresponding ChX_In |
| GND | GND | G | Ground |
Pin Functions - TPD8F003
| PIN | I/O | Description | |
|---|---|---|---|
| Name | No. | ||
| ChX_In | 1, 2, 3, 4, 5, 6, 7, 8 | IO | ESD-protected channel, connected to corresponding ChX_Out |
| ChX_Out | 9, 10, 11, 12, 13, 14, 15, 16 | IO | ESD-protected channel, connected to corresponding ChX_In |
| GND | GND | G | Ground |
