5 Pin Configuration and Functions

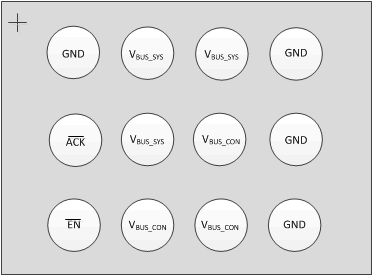

YZ Package
12-Pin DSBGA
Top View - See Through
Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| ACK | B1 | O | Open-Drain Acknowledge pin. See Table 2. |
| EN | C1 | I | Enable Active-Low Input. Drive EN low to enable the switch. Drive EN high to disable the switch. |
| VBUS_CON | B3, C2, C3 | I/O | Connect to USB connector VBUS pin; IEC61000-4-2 ESD protection IEC61000-4-5 Surge protection |
| VBUS_SYS | A2, A3, B2 | I/O | Connect to internal VBUS plane |
| GND | A1, A4, B4, C4 | Ground | Connect to PCB ground plane |
Table 1. 12-YZ Pin Mapping
| 1 | 2 | 3 | 4 | |
|---|---|---|---|---|
| A | GND | VBUS_SYS | VBUS_SYS | GND |
| B | ACK | VBUS_SYS | VBUS_CON | GND |
| C | EN | VBUS_CON | VBUS_CON | GND |
