SLLSE19F December 2009 – July 2016 TPD12S015
PRODUCTION DATA.

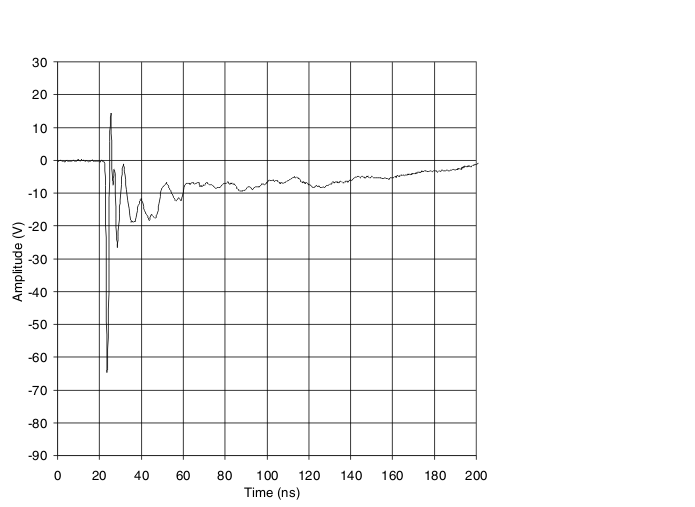

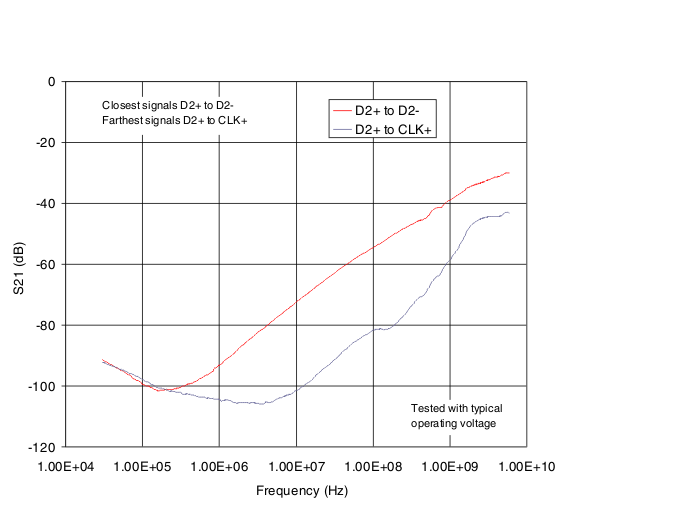

| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| VCCA | Supply voltage | 4 | V | ||
| VBAT | Supply voltage | –0.3 | 6.5 | V | |
| VI | Input voltage | SCL_A, SDA_A, CEC_A , CT_CP_HPD, LS_OE | –0.3 | 4 | V |
| SCL_B, SDA_B, CEC_B, D, CLK | –0.3 | 6 | |||
| VO | Voltage applied to any output in the high-impedance or power-off state(2) | SCL_A, SDA_A, CEC_A, HPD_A | –0.3 | 4 | V |
| SCL_B, SDA_B, CEC_B | –0.3 | 6 | |||
| Voltage applied to any output in the high or low state(2) | SCL_A, SDA_A, CEC_A, HPD_A | –0.3 | VCCA + 0.3 | ||
| SCL_B, SDA_B, CEC_B | –0.5 | 6 | |||
| IIK | Input clamp current | VI < 0 | –50 | mA | |
| IOK | Output clamp current | VO < 0 | –50 | mA | |
| IOUTMAX | Continuous current through 5VOUT or GND | ±100 | mA | ||
| Tstg | Storage temperature | –65 | 150 | °C | |
| VALUE | UNIT | ||||
|---|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | All pins except E4, D4, C4, B4, A4, A3, G4, F4, D3, G3, E3, F3 F1, and E1 |
±2500 | V |
| Pins E4, D4, C4, B4, A4, A3, G4, F4, D3, G3, E3, F3 F1, and E1 |
±15000 | ||||
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±1000 | ||||
| IEC 61000-4-2 contact discharge | Pins E4, D4, C4, B4, A4, A3, G4, F4, D3, G3, E3, F3 F1, and E1 |
±8000 | |||
| THERMAL METRIC(1) | TPD12S015 | UNIT | |
|---|---|---|---|
| YFF (DSBGA) | |||
| 28 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 63 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 0.4 | °C/W |
| RθJB | Junction-to-board thermal resistance | 9.2 | °C/W |
| ψJT | Junction-to-top characterization parameter | 1.6 | °C/W |
| ψJB | Junction-to-board characterization parameter | 9.1 | °C/W |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | N/A | °C/W |
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| ICCA | Standby | VCCA | I/O = High | 2 | µA | ||
| Active | 15 | ||||||
| ICCB | Standby | VBAT | CT_CP_HPD=L, LS_OE=L, HPD_B=L | 2 | µA | ||
| DC-DC and HPD active | CT_CP_HPD=H, LS_OE=L, HPD_B=L | 30 | 50 | ||||
| DC-DC, HPD, DDC, CEC active | CT_CP_HPD=H LS_OE=H, HPD_B=L, I/O =H | 225 | 300 | ||||
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| IOFF | Current from IO port to supply pins | VCC = 0 V, VIO = 3.3 V | 0.01 | 0.5 | µA | ||
| VDL | Diode forward voltage | ID = 8 mA, | Lower clamp diode | 0.85 | 1 | V | |
| RDYN | Dynamic resistance | I = 1 A | D, CLK | 1 | Ω | ||
| CIO | IO capacitance | VIO = 2.5 V | D, CLK | 1.3 | pF | ||
| VBR | Break-down voltage | IIO = 1 mA | 9 | 12 | V | ||
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| VBAT | Input voltage range | 2.3 | 5.5 | V | ||
| 5VOUT | Total DC output voltage | Includes voltage references, DC load and line regulations, process and temperature | 4.9 | 5 | 5.13 | V |
| TOVA | Total output voltage accuracy | Includes voltage references, DC load and line regulations, transient load and line regulations, ripple, process and temperature | 4.8 | 5 | 5.3 | V |
| VO_Ripple | Output voltage ripple, loaded | IO = 65 mA | 20 | mVp-p | ||
| F_clk | Internal operating frequency | VBAT = 2.3 V to 5.5 V | 3.5 | MHz | ||
| tstart | Start-up time | From CT_CP_HPD input to 5-V power output 90% point | 300 | µs | ||
| IO | Output current | VBAT = 2.3 V to 5.5 V | 55 | mA | ||
| Reverse leakage current VO | CT_CP_HPD= L, VO = 5.5 V | 2.5 | µA | |||
| Leakage current from battery to VO | CT_CP_HPD= L | 5 | µA | |||
| VBATUV | Undervoltage lockout threshold | Falling | 2 | V | ||
| Rising | 2.1 | |||||
| VOVC | Input overvoltage threshold | Falling | 5.9 | V | ||
| Rising | 6 | |||||
| Line transient response | VBAT = 3.6 V, a pulse of 217-Hz 600 mVp-p square wave, IO = 20/65 mA | ±25 | ±50 | mVpk | ||
| Load transient response | VBAT = 3.6 V, IO = 5 to 65 mA, pulse of 10 µs, tr = tf = 0.1 µs |
50 | mVpk | |||
| IDD (idle) | Power supply current from VBAT to DC-DC, enabled, unloaded | IO = 0 mA | 30 | 50 | µA | |
| IDD (disabled) | Power supply current from VBAT, DC-DC Disabled, Unloaded | VBAT = 2.3 V to 5.5 V, IO = 0 mA, CT_CP_HPD Low | 2 | µA | ||
| IDD(system off) | Power supply current from VBAT, VCCA =0 V | VCCA = 0 V | 5 | µA | ||
| I_inrush (start-up) | Inrush current, average over T_startup time | VBAT = 2.3 V to 5.5 V, IO = 65 mA | 100 | mA | ||
| TSD | Thermal shutdown | Increasing junction temperature | 140 | °C | ||
| Thermal shutdown hysteresis | Decreasing junction temperature | 20 | ||||
| ISC | Short-circuit current limit from output | 5-Ω short to GND | 500 | mA | ||
| PARAMETER | TYP | UNIT | |
|---|---|---|---|
| LIN | External inductor, 0805 footprint | 1 | µH |
| CIN | Input capacitor, 0603 footprint | 4.7 | µF |
| COUT | Output capacitor, 0603 footprint | 4.7 | µF |
| CVCCA | Input capacitor, 0402 footprint | 0.1 | µF |
| PARAMETER | TEST CONDITIONS | VCCA | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|---|
| VOHA | IOH = –3 mA, | VI = VIH | 1.1 V to 3.6 V | VCCA × 0.7 | V | |||
| VOLA | IOL = 3 mA, | VI = VIL | 1.1 V to 3.6 V | VCCA ×0.17 | V | |||
| ΔVT hysteresis | HPD_B (VT+ – VT–) | 1.1 V to 3.6 V | 700 | mV | ||||
| RPD | (Internal pulldown) | HPD_B, | Internal pulldown connected to GND | 11 | kΩ | |||
| IOFF | A port | VO = VCCO or GND | 0 V | ±5 | µA | |||
| IOZ | A port | VI = VCCI or GND | 3.6 V | ±5 | µA | |||
| PARAMETER | TEST CONDITIONS | VCCA | MIN | TYP | MAX | UNIT |
|---|---|---|---|---|---|---|
| II | VI = VCCA or GND | 1.1 V to 3.6 V | ±12 | µA |
| PARAMETER | TEST CONDITIONS | VCCA | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| CI | Control inputs | VI = 1.89 V or GND | 1.1 V to 3.6 V | 7.1 | 8.5 | pF | |
| CIO | A port | VO = 1.89 V or GND | 1.1 V to 3.6 V | 8.3 | 9.5 | pF | |
| B port | VO = 5.0 V or GND | 1.1 V to 3.6 V | 15 | 16.5 | |||
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| CL | Bus load capacitance (B side) | 750 | pF | |||
| Bus load capacitance (A side) | 15 | |||||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPHL | Propagation delay | A to B | DDC Channels Enabled | 344 | ns | ||
| B to A | 335 | ||||||
| tPLH | Propagation delay | A to B | DDC Channels Enabled | 452 | ns | ||
| B to A | 178 | ||||||
| tf | A port fall time | A Port | DDC Channels Enabled | 138 | ns | ||
| B port fall time | B Port | 83 | |||||
| tr | A port rise time | A Port | DDC Channels Enabled | 194 | ns | ||
| B port rise time | B Port | 92 | |||||
| fMAX | Maximum switching frequency | DDC Channels Enabled | 400 | kHz | |||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPLH | Propagation delay | A to B | CEC Channels Enabled | 445 | ns | ||
| B to A | 337 | ||||||
| tPLH | A to B | 13 | µs | ||||
| B to A | 0.266 | ||||||
| tf | A port fall time | A Port | CEC Channels Enabled | 140 | ns | ||
| B port fall time | B Port | 96 | |||||
| tr | A port rise time | A Port | CEC Channels Enabled | 202 | ns | ||
| B port rise time | B Port | 15 | µs | ||||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPLH | Propagation delay | B to A | CEC Channels Enabled | 10 | µs | ||
| tPLH | B to A | 9 | |||||
| tf | A port fall time | A Port | CEC Channels Enabled | 0.67 | ns | ||
| tr | A port rise time | A Port | CEC Channels Enabled | 0.74 | ns | ||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPLH | Propagation delay | A to B | DDC Channels Enabled | 335 | ns | ||
| B to A | 265 | ||||||
| tPLH | A to B | 438 | |||||
| B to A | 169 | ||||||
| tf | A port fall time | A Port | DDC Channels Enabled | 110 | ns | ||
| B port fall time | B Port | 83 | |||||
| tr | A port rise time | A Port | DDC Channels Enabled | 190 | ns | ||
| B port rise time | B Port | 92 | |||||
| fMAX | Maximum switching frequency | DDC Channels Enabled | 400 | kHz | |||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPLH | Propagation delay | A to B | CEC Channels Enabled | 437 | ns | ||
| B to A | 267 | ||||||
| tPLH | A to B | 13 | µs | ||||
| B to A | 0.264 | ||||||
| tf | A port fall time | A Port | CEC Channels Enabled | 110 | ns | ||
| B port fall time | B Port | 96 | |||||
| tr | A port rise time | A Port | CEC Channels Enabled | 202 | ns | ||
| B port rise time | B Port | 15 | µs | ||||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPLH | Propagation delay | B to A | CEC Channels Enabled | 10 | µs | ||
| tPLH | B to A | 9 | |||||
| tf | A port fall time | A Port | CEC Channels Enabled | 0.47 | ns | ||
| tr | A port rise time | A Port | CEC Channels Enabled | 0.51 | ns | ||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPLH | Propagation delay | A to B | DDC Channels Enabled | 334 | ns | ||
| B to A | 229 | ||||||
| tPLH | A to B | 431 | |||||
| B to A | 169 | ||||||
| tf | A port fall time | A Port | DDC Channels Enabled | 94 | ns | ||
| B port fall time | B Port | 83 | |||||
| tr | A port rise time | A Port | DDC Channels Enabled | 191 | ns | ||
| B port rise time | B Port | 92 | |||||
| fMAX | Maximum switching frequency | DDC Channels Enabled | 400 | kHz | |||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPLH | Propagation delay | A to B | CEC Channels Enabled | 441 | ns | ||
| B to A | 231 | ||||||
| tPLH | A to B | 13 | µs | ||||
| B to A | 0.26 | ||||||
| tf | A port fall time | A Port | CEC Channels Enabled | 94 | ns | ||
| B port fall time | B Port | 96 | |||||
| tr | A port rise time | A Port | CEC Channels Enabled | 201 | ns | ||
| B port rise time | B Port | 15 | µs | ||||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPLH | Propagation delay | B to A | CEC Channels Enabled | 10 | µs | ||
| tPLH | B to A | 9 | |||||
| tf | A port fall time | A Port | CEC Channels Enabled | 0.41 | ns | ||
| tr | A port rise time | A Port | CEC Channels Enabled | 0.45 | ns | ||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPLH | Propagation delay | A to B | DDC Channels Enabled | 330 | ns | ||
| B to A | 182 | ||||||
| tPLH | A to B | 423 | |||||
| B to A | 166 | ||||||
| tf | A port fall time | A Port | DDC Channels Enabled | 79 | ns | ||
| B port fall time | B Port | 83 | |||||
| tr | A port rise time | A Port | DDC Channels Enabled | 188 | ns | ||
| B port rise time | B Port | 92 | |||||
| fMAX | Maximum switching frequency | DDC Channels Enabled | 400 | kHz | |||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPLH | Propagation delay | A to B | CEC Channels Enabled | 454 | ns | ||
| B to A | 184 | ||||||
| tPLH | A to B | 13 | µs | ||||
| B to A | 0.255 | ||||||
| tf | A port fall time | A Port | CEC Channels Enabled | 79 | ns | ||
| B port fall time | B Port | 96 | |||||
| tr | A port rise time | A Port | CEC Channels Enabled | 194 | ns | ||
| B port rise time | B Port | 15 | µs | ||||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPLH | Propagation delay | B to A | CEC Channels Enabled | 10 | µs | ||
| tPLH | B to A | 9 | |||||
| tf | A port fall time | A Port | CEC Channels Enabled | 0.37 | ns | ||
| tr | A port rise time | A Port | CEC Channels Enabled | 0.39 | ns | ||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPLH | Propagation delay | A to B | DDC channels enabled | 323 | ns | ||
| B to A | 158 | ||||||
| tPLH | A to B | 421 | |||||
| B to A | 162 | ||||||
| tf | A port fall time | A Port | DDC channels enabled | 71 | ns | ||
| B port fall time | B Port | 84 | |||||
| tr | A port rise time | A Port | DDC channels enabled | 188 | ns | ||
| B port rise time | B Port | 92 | |||||
| fMAX | Maximum switching frequency | DDC channels enabled | 400 | kHz | |||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPLH | Propagation delay | A to B | CEC channels enabled | 450 | ns | ||
| B to A | 160 | ||||||
| tPLH | A to B | 13 | µs | ||||
| B to A | 0.251 | ||||||
| tf | A port fall time | A Port | CEC channels enabled | 71 | ns | ||
| B port fall time | B Port | 96 | |||||
| tr | A port rise time | A Port | CEC channels enabled | 194 | ns | ||
| B port rise time | B Port | 15 | µs | ||||
| PARAMETER | PINS | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|---|
| tPLH | Propagation delay | B to A | CEC channels enabled | 10 | µs | ||
| tPLH | B to A | 9 | |||||
| tf | A port fall time | A Port | CEC channels enabled | 0.35 | ns | ||
| tr | A port rise time | A Port | CEC channels enabled | 0.37 | ns | ||
