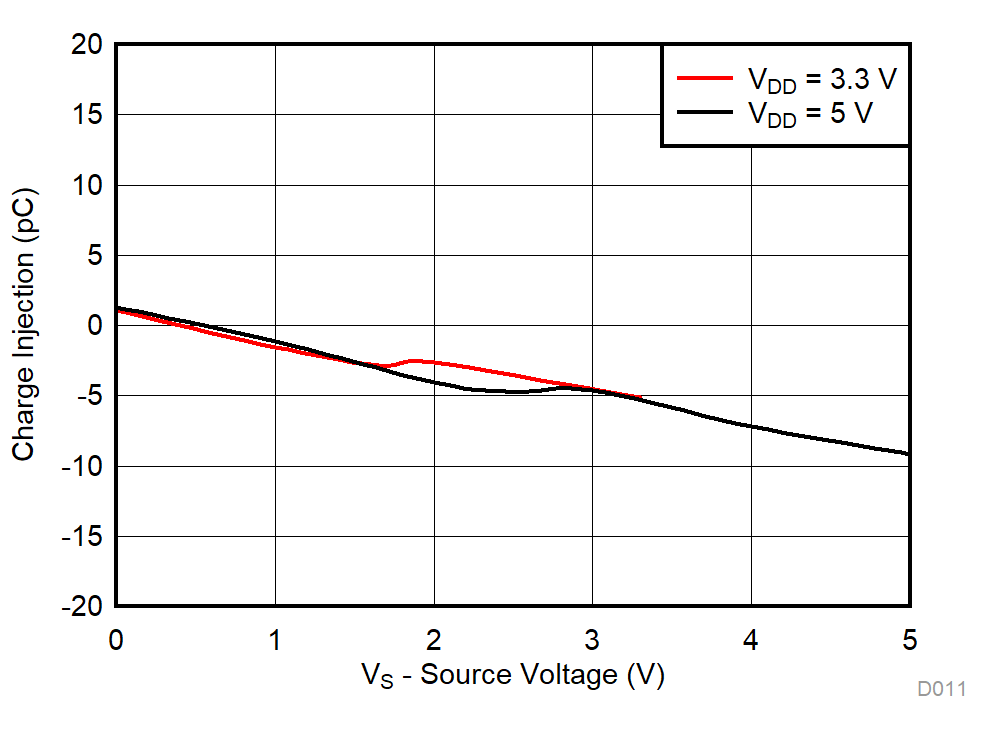

9.2.3 Application Curve

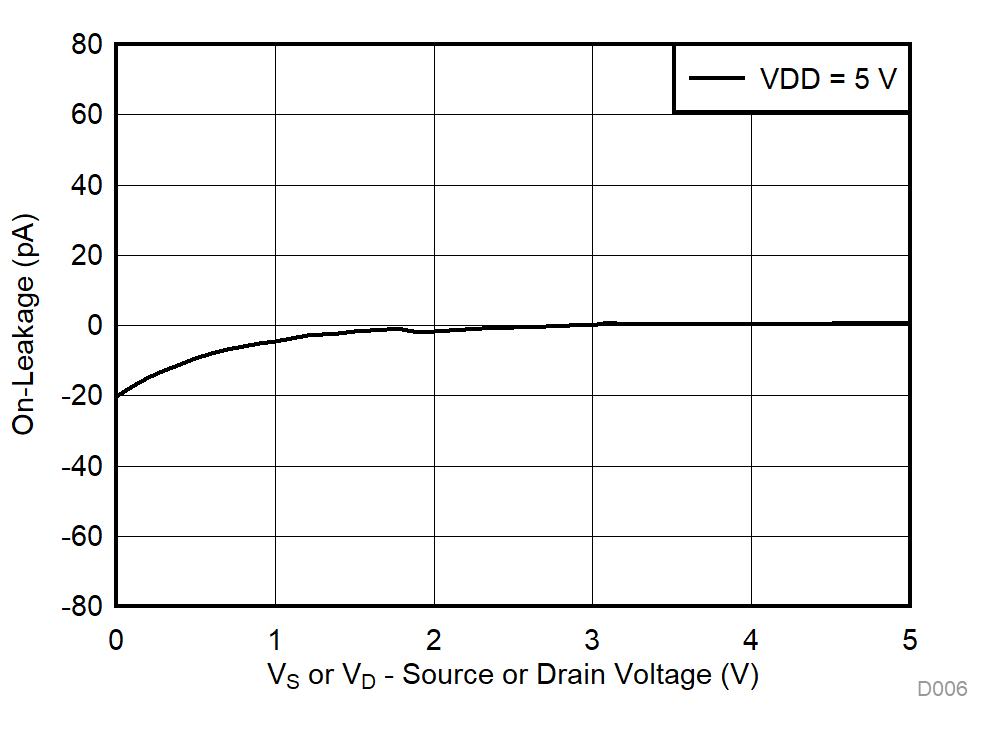

TMUX1121, TMUX1122, andTMUX1123 have excellent charge injection performance and ultra-low leakage current, making them ideal choices to minimize sampling error for the sample and hold application.
| TA = -40°C to +125°C |
| VDD= 5V |
